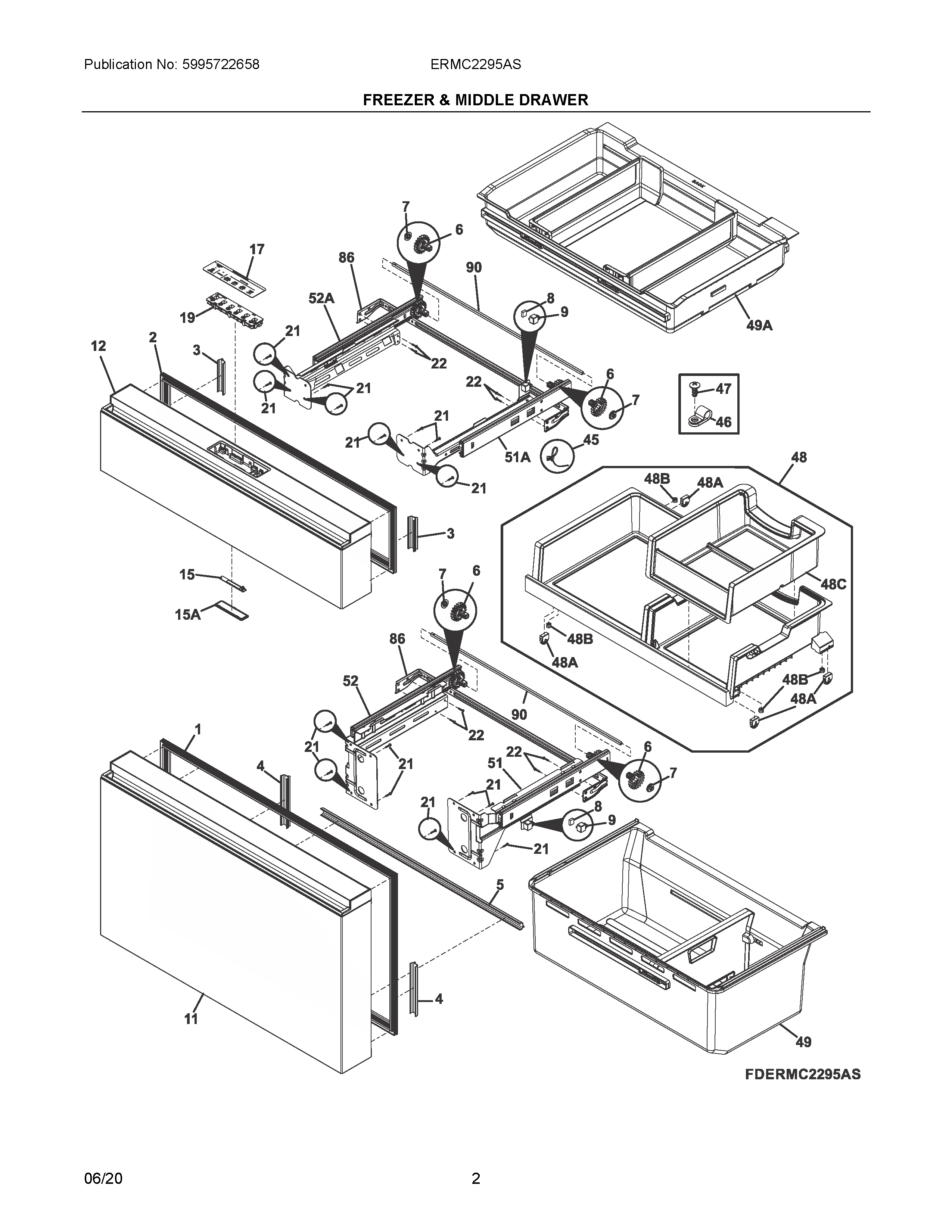

ERMC2295AS 02 – FREEZER & MIDDLE DRAWER

Products

Position	Product
NIA	5304519048 Frigidaire Refrigerator Harness
NIBA	811949503 Frigidaire Screw
NIA	SCREW, PHIL PN HD, M4 X 8
NIA	5304519084 Frigidaire Screw
1	5304523079 Frigidaire Refrigerator Gasket
2	WCI 5304523080
3	WCI 5304523081
4	WCI 5304523082
5	WCI 5304523083
6	140025649033 Frigidaire Gear
7	5304519043 Frigidaire Refrigerator Bearing
8	5304519044 Frigidaire Magnet
9	WCI 5304523084
11	5304523085 Frigidaire Refrigerator Door Assembly
12	5304523086 Frigidaire Refrigerator Door Assembly
15	5304523011 Frigidaire Refrigerator Light Board
15A	5304519049 Frigidaire Refrigerator Lens
17	WCI 5304523087
19	5304531769 Frigidaire Refrigerator PCB Board
21	811949401 Frigidaire Refrigerator Screw
22	5304519053 Frigidaire Refrigerator Screw
45	539151026 Frigidaire Clip
46	CLAMP, CABLE, 1/4"
47	241953902 Frigidaire Refrigerator Screw
48	5304523088 Frigidaire Drawer Assembly
48A	5304524919 Frigidaire Drawer
48B	WCI 5304523824
48C	5304523681 Frigidaire Refrigerator Container
49	WCI 5304523089
49A	WCI 5304523090
51	5304523091 Frigidaire Refrigerator Slider
51A	5304523092 Frigidaire Slider
52A	SLIDER
52	5304523093 Frigidaire Refrigerator Slider
86	BRACKET, REINFORCEMENT
90	5304524002 Frigidaire Shaft
