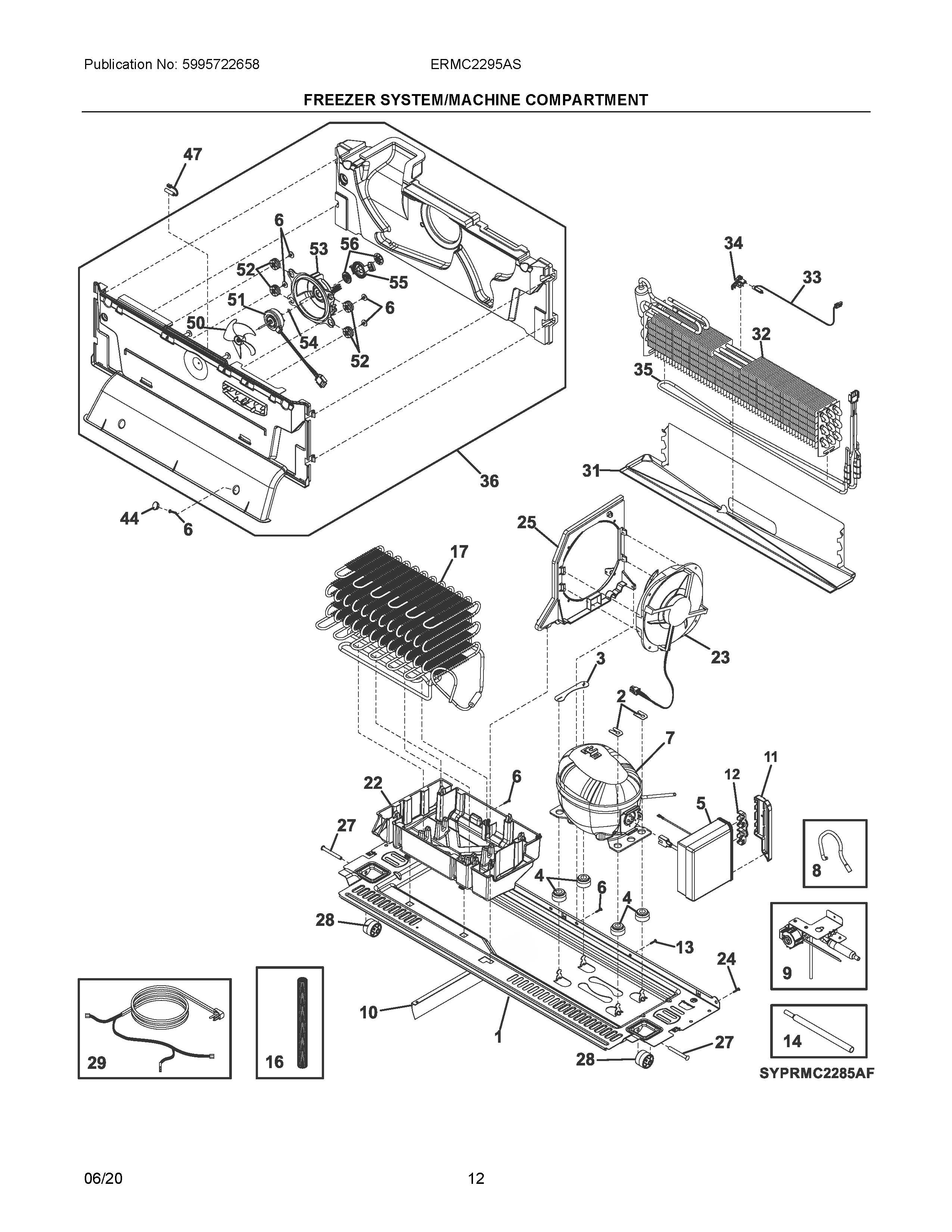

ERMC2295AS 07 – FREEZER SYSTEM/MACHINE COMPARTMENTadmin2025-04-26T08:52:52+00:00ERMC2295AS 07 – FREEZER SYSTEM/MACHINE COMPARTMENT
Products
| Position | Product |
|---|
| NIA | 5304523687 Frigidaire Sticker |
| NIA | WCI 5304523068 |
| NI | 811950601 Frigidaire Refrigerator Seal |
| 1 | BASE, COMPRESSOR ASSY |
| 2 | CLAMP, COMPRESSOR, SINGLE HOLE |
| 3 | 5304524607 Frigidaire Clamp |
| 4 | 811978901 Frigidaire Refrigerator Grommet |
| 5 | 5304523061 Frigidaire Refrigerator Control Assembly |
| 6 | 811949503 Frigidaire Screw |
| 7 | 5304523062 Frigidaire Refrigerator Compressor |
| 8 | 5304519154 Frigidaire Refrigerator Tube |
| 9 | 5304529531 Frigidaire Refrigerator Valve |
| 10 | FLAP BRACKET, COMPRESSOR BASE |
| 11 | COVER, FLEX DRIVE, SIDE, COMPRESSOR |
| 12 | CLAMP, FLEX DRIVE, CABLE |
| 13 | 5304519110 Frigidaire Screw |
| 14 | 5304523065 Frigidaire Refrigerator Tubing |
| 16 | 5304519156 Frigidaire Refrigerator Drain Tube |
| 17 | CONDENSER ASSY DYNAMIC |
| 22 | 5304529527 Frigidaire Refrigerator Pan |
| 23 | 5304525730 Frigidaire Refrigerator Fan Assembly |
| 24 | 808199001 Frigidaire Screw |
| 25 | 5304529530 Frigidaire Refrigerator Condenser Shroud |
| 27 | 811998302 Frigidaire Refrigerator Shaft |
| 28 | 811666601 Frigidaire Refrigerator Roller |
| 29 | 5304523066 Frigidaire Refrigerator Power Cord |
| 31 | DRAIN TROUGH |
| 32 | 5304529994 Frigidaire Refrigerator Cover |
| 33 | 5303918851 Frigidaire Refrigerator Thermostat Kit |
| 34 | 811980406 Frigidaire Clamp |
| 35 | 5304534878 Frigidaire Heater |
| 36 | 5304523067 Frigidaire Refrigerator Cover |
| 44 | 5304524004 Frigidaire Refrigerator Cover |
| 47 | 5303918775 Frigidaire Refrigerator Thermistor |
| 50 | BLADE, EVAPORATOR FAN |
| 51 | 809069207 Frigidaire Refrigerator Motor |
| 52 | GROMMET, FAN SHROUND, FREEZER |
| 53 | 5304519175 Frigidaire Shroud |
| 54 | WASHER, SLINGER, NYLON |
| 55 | 5304519177 Frigidaire Refrigerator Clip |
| 56 | 5304519178 Frigidaire Refrigerator Grommet |
