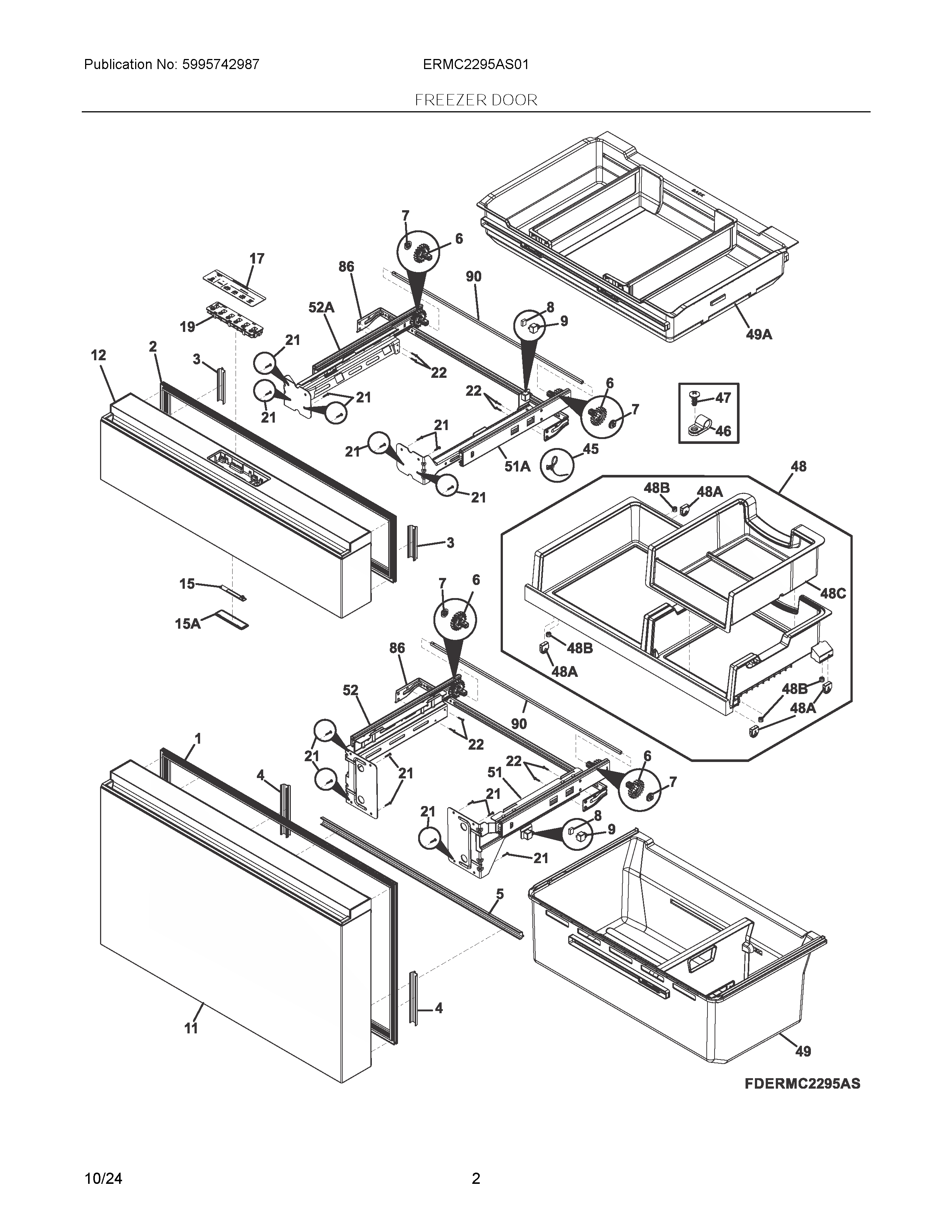

ERMC2295AS01 02 – FREEZER DOOR

Products

PositionProduct
NIA5304519048 Frigidaire Refrigerator Harness
NIBA811949503 Frigidaire Screw
NIASCREW, PHIL PN HD, M4 X 8
NIA5304519084 Frigidaire Screw
15304523079 Frigidaire Refrigerator Gasket
2WCI 5304523080
3WCI 5304523081
4WCI 5304523082
5WCI 5304523083
6140025649033 Frigidaire Gear
75304519043 Frigidaire Refrigerator Bearing
85304519044 Frigidaire Magnet
9WCI 5304523084
115304523085 Frigidaire Refrigerator Door Assembly
125304523086 Frigidaire Refrigerator Door Assembly
155304523011 Frigidaire Refrigerator Light Board
15A5304519049 Frigidaire Refrigerator Lens
17WCI 5304523087
195304531769 Frigidaire Refrigerator PCB Board
21811949401 Frigidaire Refrigerator Screw
225304519053 Frigidaire Refrigerator Screw
45539151026 Frigidaire Clip
46CLAMP, CABLE, 1/4"
47241953902 Frigidaire Refrigerator Screw
485304523088 Frigidaire Drawer Assembly
48A5304524919 Frigidaire Drawer
48BWCI 5304523824
48C5304523681 Frigidaire Refrigerator Container
49WCI 5304523089
49AWCI 5304523090
515304523091 Frigidaire Refrigerator Slider
51A5304523092 Frigidaire Slider
52ASLIDER
525304523093 Frigidaire Refrigerator Slider
86BRACKET, REINFORCEMENT
905304524002 Frigidaire Shaft
