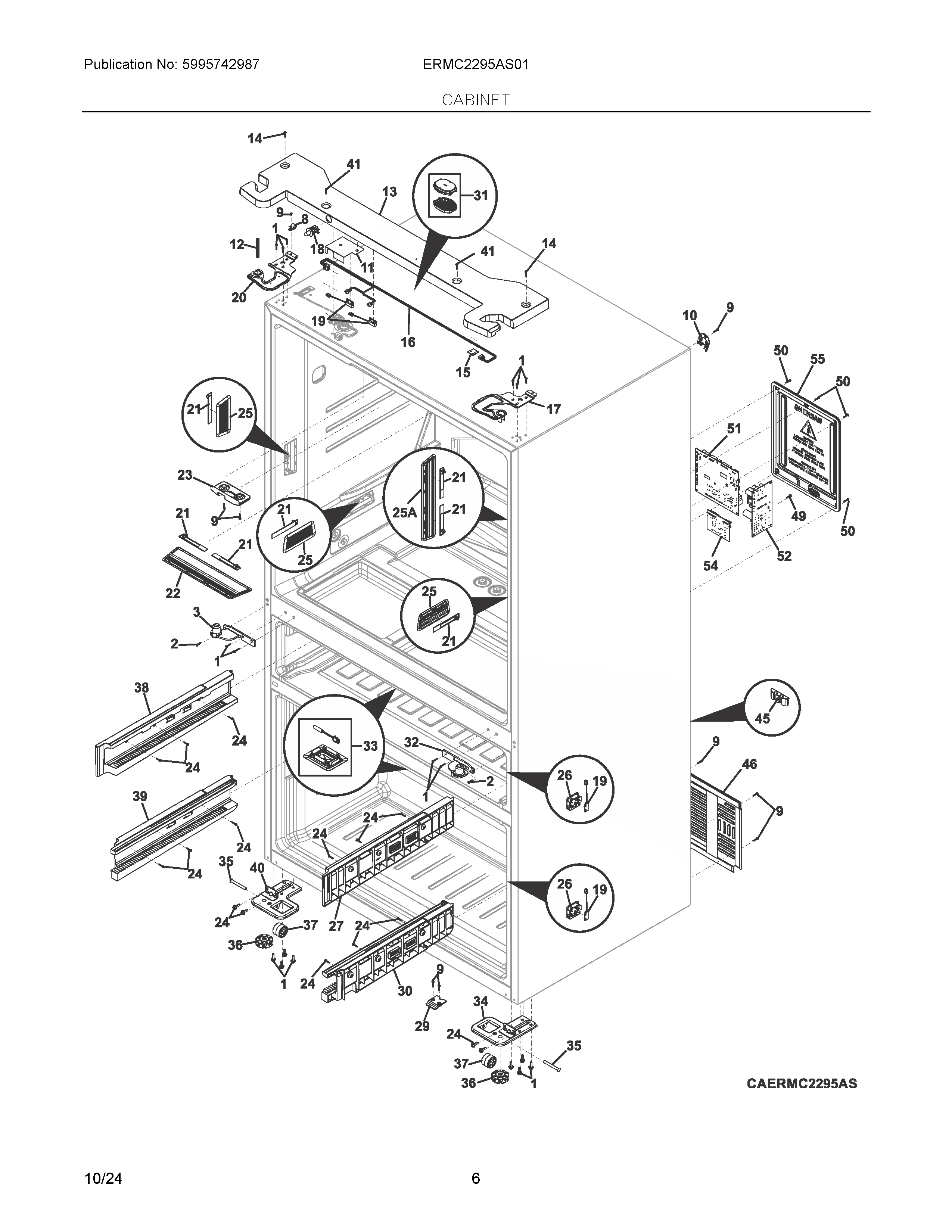

ERMC2295AS01 04 – CABINET

ERMC2295AS01 04 – CABINET

Written by

in

ERMC2295AS01 04 – CABINET

Products

Position	Product
NI	5304453707 Frigidaire Oven Screw
NI	811950601 Frigidaire Refrigerator Seal
NI	5304519116 Frigidaire Refrigerator Harness
1	811949401 Frigidaire Refrigerator Screw
2	5304523029 Frigidaire Screw Assembly
3	5304519085 Frigidaire Refrigerator Hinge
8	CLAMP
9	811949503 Frigidaire Screw
10	5304519086 Frigidaire Refrigerator Cover
11	SHIELD, EYEBROW
12	5304519067 Frigidaire Refrigerator Spring
13	5304536150 Frigidaire Cover Assembly
14	5304519089 Frigidaire Refrigerator Screw
15	5304524003 Frigidaire Refrigerator PC Board
16	5304519091 Frigidaire Refrigerator Harness
17	5304536152 Frigidaire Hinge
18	5304519093 Frigidaire Refrigerator Switch
19	5304527992 Frigidaire Freezer Wire Harness with Reed Switch
20	5304536153 Frigidaire Hinge
21	5304523011 Frigidaire Refrigerator Light Board
22	LENS, LED LIGHT, DOUBLE
23	WCI 5304523104
24	SCREW
25A	WCI 5304523105
25	LENS, LED LIGHT
26	WCI 5304523106
27	5304523107 Frigidaire Support
29	WCI 5304523108
30	5304523902 Frigidaire Support
31	5303918849 Frigidaire Refrigerator Housing Kit
32	5304519104 Frigidaire Refrigerator Hinge
33	5303918850 Frigidaire Refrigerator Thermistor Kit
34	5304519105 Frigidaire Refrigerator Bracket
35	811998302 Frigidaire Refrigerator Shaft
36	5304519106 Frigidaire Refrigerator Foot
37	811666601 Frigidaire Refrigerator Roller
38	5304523110 Frigidaire Support
39	5304523903 Frigidaire Support
40	5304519109 Frigidaire Refrigerator Bracket
41	5304519110 Frigidaire Screw
45	5304519111 Frigidaire Refrigerator Clip
46	5304519112 Frigidaire Refrigerator Cover
49	808199001 Frigidaire Screw
50	WCI 5304523112
51	5304532993 Frigidaire Refrigerator PCB
52	5304526795 Frigidaire Refrigerator PC Board
54	5304519115 Frigidaire Refrigerator Power Control Board
55	5304519117 Frigidaire Cover
