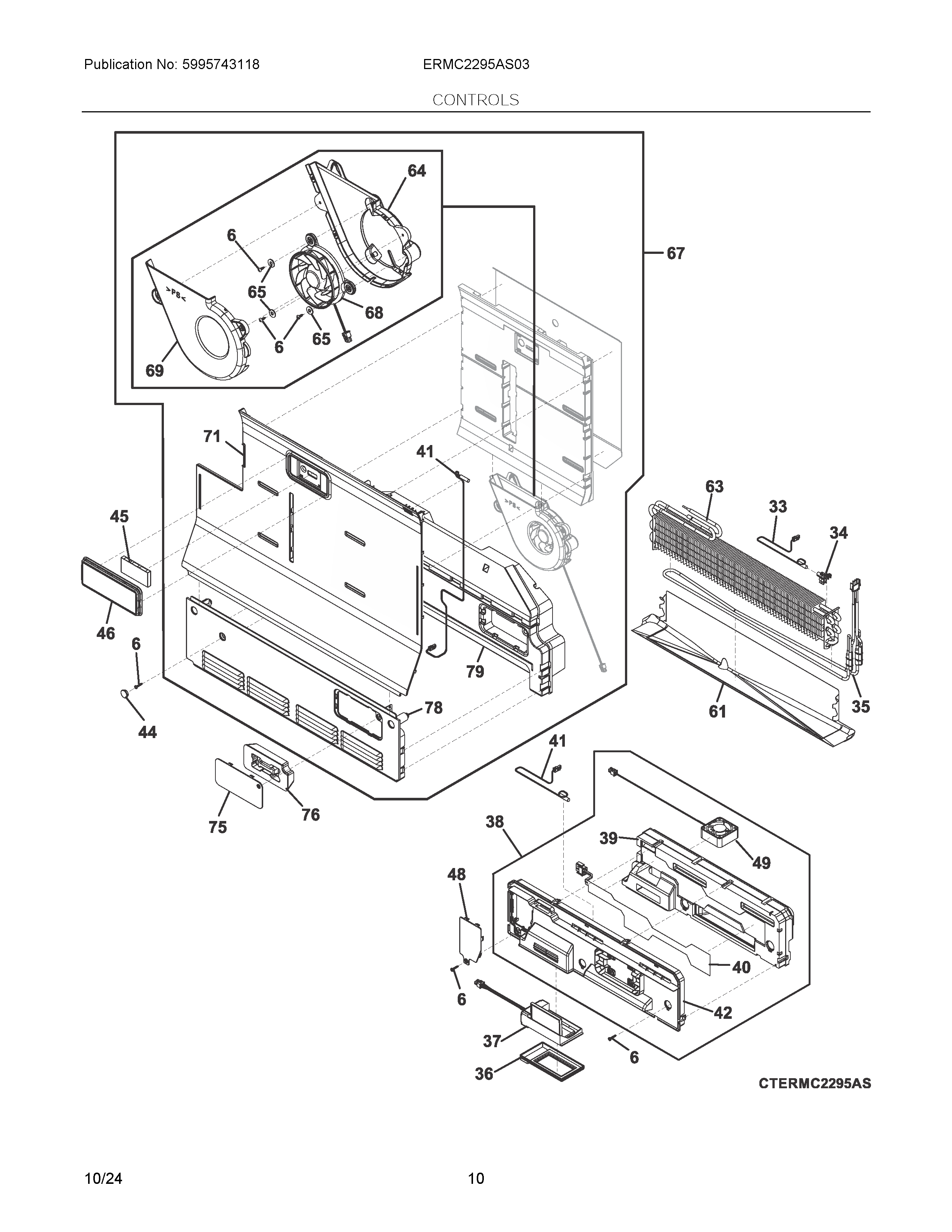

ERMC2295AS03 06 – CONTROLS

Products

Position	Product
NIA	SEAL, 6X20X450, FOAM
NIA	WCI 5304523826
NI	811950601 Frigidaire Refrigerator Seal
6	811949503 Frigidaire Screw
33	5303918851 Frigidaire Refrigerator Thermostat Kit
34	811980406 Frigidaire Clamp
35	5304534878 Frigidaire Heater
36	5304523686 Frigidaire Seal
37	5304519166 Frigidaire Refrigerator Baffle Assembly
38	5304519167 Frigidaire Refrigerator Assembly Cover
39	DUCT ASSEMBLY, AIR FLOW, MIDDLE DRAWER
40	HEATER ASSEMBLY, MIDDLE DRAWER
41	5303918775 Frigidaire Refrigerator Thermistor
42	5304519170 Frigidaire Cover
44	WCI 811971602
45	WCI ELPAULTRA2
46	WCI 5304523128
48	COVER, WINDOW, MIDDLE DRAWER
49	5304519173 Frigidaire Refrigerator Fan Assembly
61	5304519180 Frigidaire Drain Trough
63	5304526811 Frigidaire Refrigerator Evaporator
64	5304519182 Frigidaire Refrigerator Bracket
65	5304519183 Frigidaire Washer
67	5304524898 Frigidaire Refrigerator Cover Assembly
68	5304519186 Frigidaire Refrigerator Fan Assembly
69	5304519187 Frigidaire Refrigerator Housing
71	5304523059 Frigidaire Cover
75	WCI 5304523129
76	5304522062 Frigidaire Insulation Assembly
78	WCI 5304523130
79	5304524539 Frigidaire Refrigerator Cover Assembly
