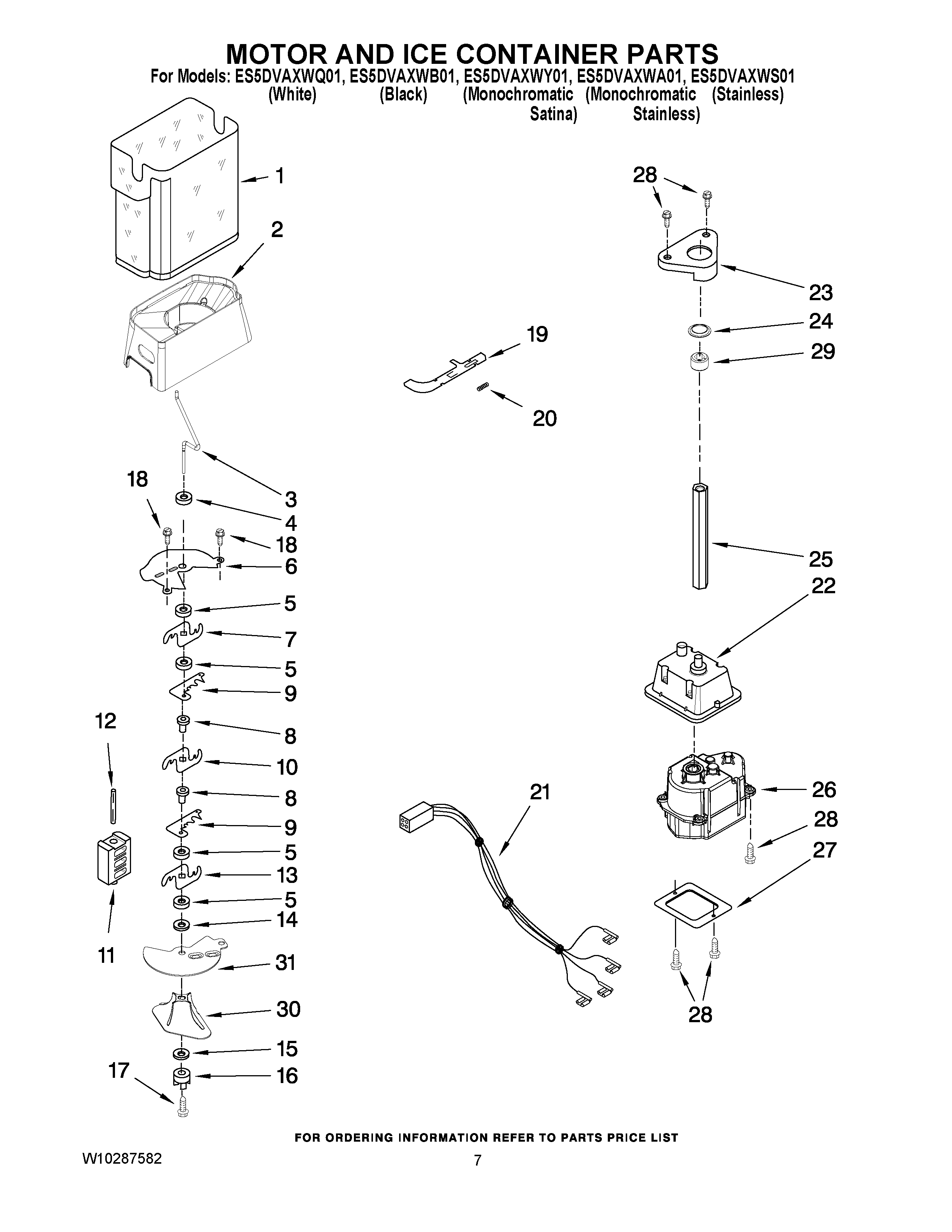

ES5DVAXWQ01 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1WP2198573 Whirlpool Refrigerator Ice Bin
2WPW10130497 Whirlpool Refrigerator Crush Bin
3WP2317240 Whirlpool Refrigerator Ice Auger
4Washer
5WP1119007 Whirlpool Refrigerator Spacer
6Cover, Crusher
7W10278733 Whirlpool Refrigerator Blade
8WP1119005 Whirlpool Refrigerator Spacer
9Blade, Fixed
10W10278732 Whirlpool Refrigerator Blade
112317239 Whirlpool Refrigerator Blade Block
12489229 Whirlpool Refrigerator Roll Pin
13W10278731 Whirlpool Refrigerator Blade
14WP489235 Whirlpool Refrigerator Washer
15WP2198661 Whirlpool Refrigerator Washer
16W11629923 Whirlpool Coupling
17WP8281164 Whirlpool Refrigerator Screw
18WP3400065 Whirlpool Refrigerator Screw
19Latch, Bin
20WP2198608 Whirlpool Refrigerator Spring
21Wire Assembly, IDI Motor
22Enclosure, Motor
23WP2188919 Whirlpool Refrigerator Holder
24WP2198628 Whirlpool Door Seal
25WP2188917 Whirlpool Drive Shaft
26W10822606 Whirlpool Dishwasher Dispenser Motor
27Cover
28WP8281163 Whirlpool Refrigerator Screw
29WP2315559 Whirlpool Motor Coupling
302317243 Whirlpool Refrigerator Wiper
312317250 Whirlpool Refrigerator Divider
100WP2317251 Whirlpool Refrigerator Ice Container
