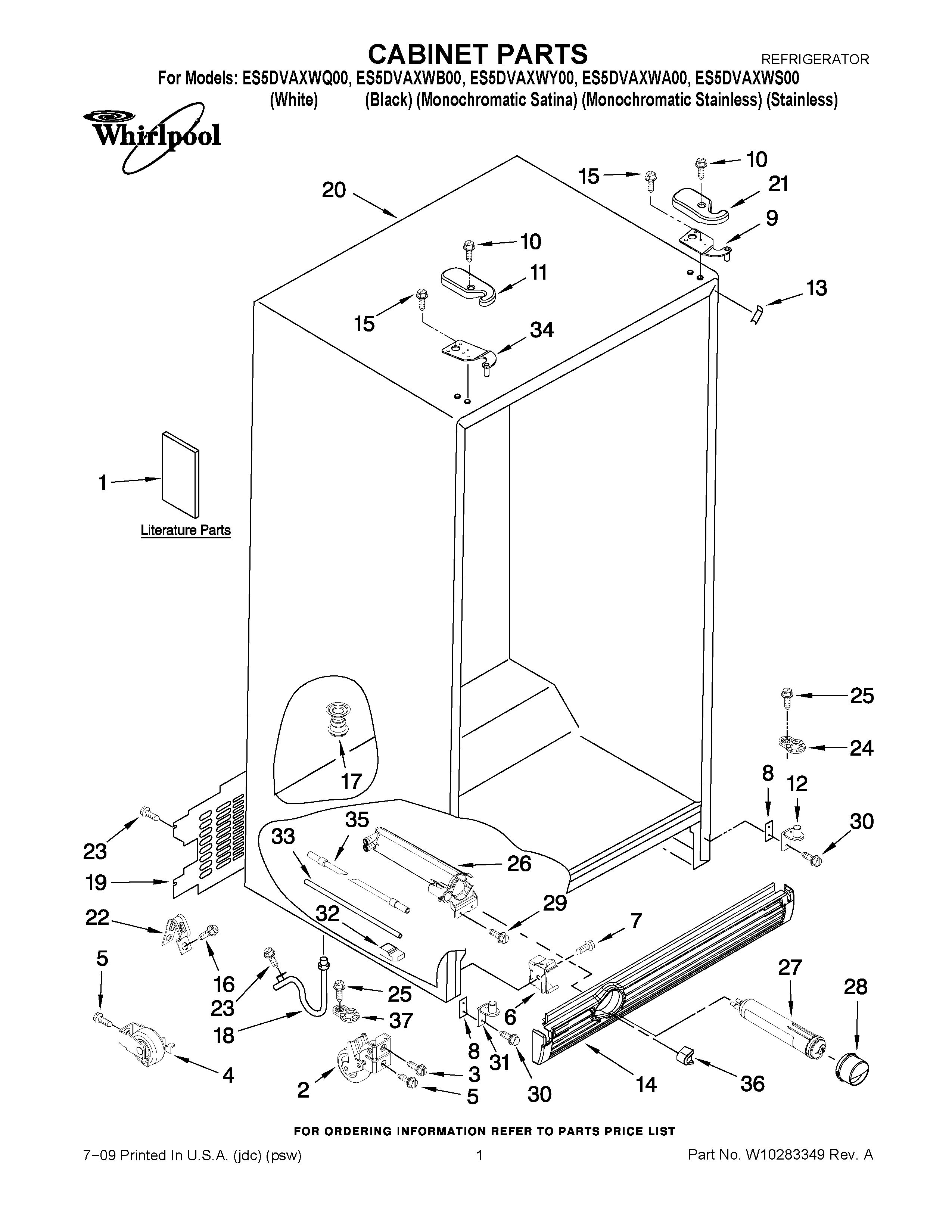

ES5DVAXWS00 01 – CABINET PARTS

ES5DVAXWS00 01 – CABINET PARTS

Written by

in

ES5DVAXWS00 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1INSTRUCTION SHEET, DOOR REMOVAL
1Service & Wiring Sheet
1OWNER S MANUAL
1ENERGY GUIDE
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489128 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP8281227 Whirlpool Screw
11WP2203407W Whirlpool Refrigerator Cover
11WP2203407B Whirlpool Refrigerator Cover
112203407AP Whirlpool Refrigerator Cover
12W10138965 Whirlpool Refrigerator Door Hinge
13Filler, Wrapper (Black)
13Filler, Wrapper (Apollo Grey)
13Filler, Wrapper (White)
14Grille (Midnight Grey)
14Grille (Black)
14Grille (White)
15WP489497 Whirlpool Screw
17W11566763 Whirlpool Fitting
18W11512417 Whirlpool Drain Connector
19WP2188755 Whirlpool Rear Panel
20CABINET (NOT A SERVICEABLE PART)
212203408AP Whirlpool Refrigerator Cover
21WP2203408B Whirlpool Refrigerator Cover
21WP2203408W Whirlpool Refrigerator Cover
22549193 Whirlpool Refrigerator Power Clamp
24WPW10329686 Whirlpool Door Cam Black
25WP489483 Whirlpool Screw
26WPW10121138 Whirlpool Refrigerator Water Filter Housing
27FILTER 3-SINGLE TEAL
28WP2260518MG Whirlpool Water Filter Cap
28WP2260518W Whirlpool Refrigerator Filter Cap
28WP2260518B Whirlpool Water Filter Cap
29WP489500 Whirlpool Refrigerator Screw
30WP489464 Whirlpool Refrigerator Screw
312303141 Whirlpool Refrigerator Door Hinge
32Block, Housing Support
33WPW10350006 Whirlpool Refrigerator Water Tube
34WP2203770 Whirlpool Refrigerator Door Hinge
35TUBE, FILTER INLET
36WP2260503B Whirlpool Refrigerator Button
362260503W Whirlpool Refrigerator Button
362260503MG Whirlpool Refrigerator Button
37WP2223751 Whirlpool Refrigerator Door Cam
