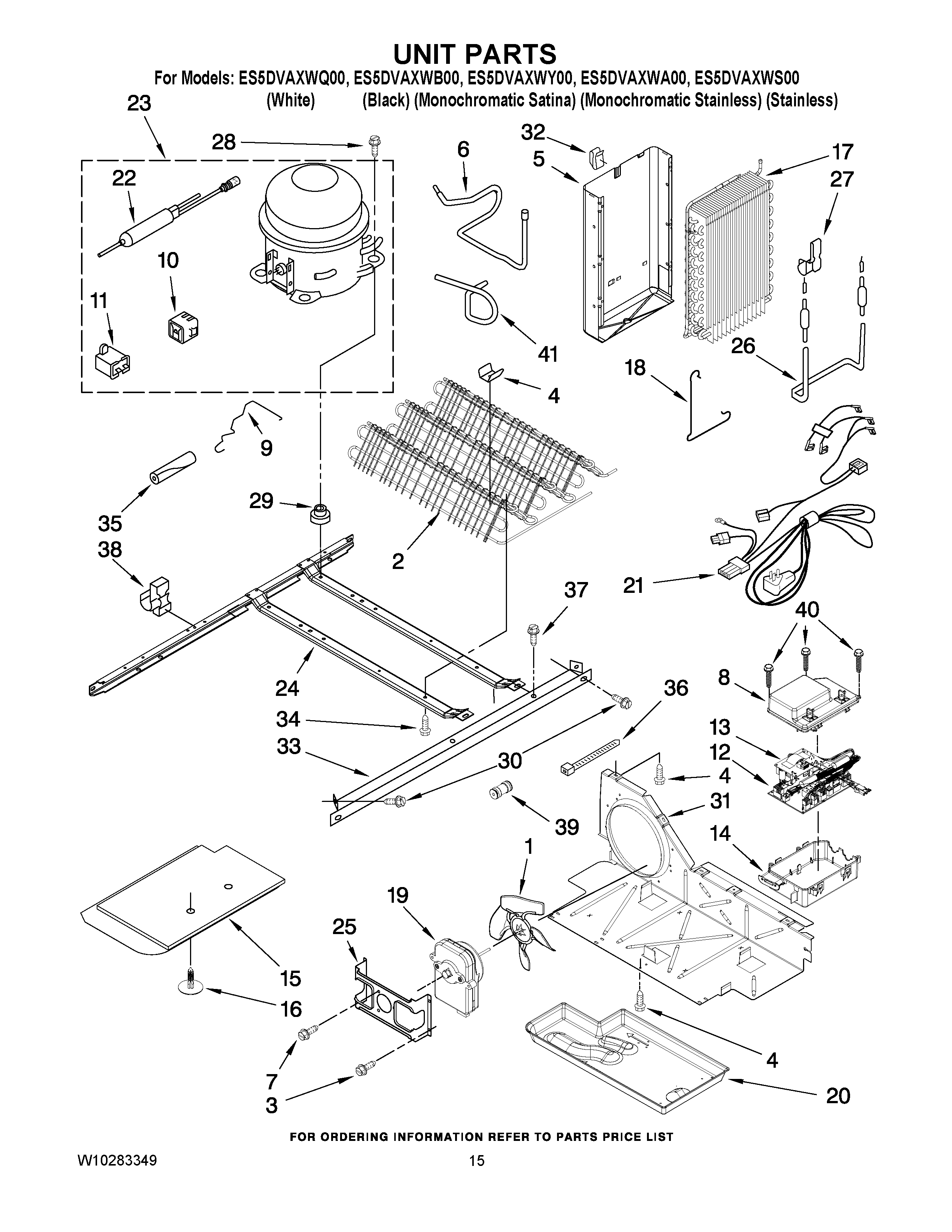

ES5DVAXWS00 09 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W10156818 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489497 Whirlpool Screw
4	W10683556 Whirlpool Refrigerator Clip
5	Heat Shield And Drain Pan
6	WP2205765 Whirlpool Refrigerator Tube
7	WP8533993 Whirlpool Refrigerator Screw
8	2323188 Whirlpool Refrigerator Cover
9	W10204187 Whirlpool Refrigerator Retainer
10	WPW10189190 Whirlpool Start Device
11	WPW10662129 Whirlpool Refrigerator Run Capacitor
12	WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
13	WPW10210789-includeCORE Whirlpool WPW10210789 Refrigerator Electronic Control Board + Core
14	2323186 Whirlpool Refrigerator Housing
15	Unit Cover, Bottom
16	489396 Whirlpool Refrigerator Clip
17	WP2188823 Whirlpool Refrigerator Evaporator
18	Clamp
19	WP2188874 Whirlpool Refrigerator Condenser Motor
20	WPW10614158 Whirlpool Refrigerator Evaporator Tray
21	WPW10291106 Whirlpool Refrigerator Wire Harness
22	WPW10143759 Whirlpool Dryer Filter
23	W10139462 Whirlpool Refrigerator Compressor
24	2304904 Whirlpool Frame Assembly
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323198 Whirlpool Refrigerator Heater
27	W11623163 Whirlpool Refrigerator Clip
29	876811 Whirlpool Grommet
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	Clip, Heat Shield
33	2305374 Whirlpool Refrigerator Unit Rail
34	W11544659 Whirlpool Refrigerator Screw
35	SLEEVE
36	WPW10339879 Whirlpool Wire Tie
37	WP489427 Whirlpool Refrigerator Screw
38	W10812039 Whirlpool Clip
39	UNION
40	WPW10171469 Whirlpool Refrigerator Screw
41	W10858105 Whirlpool Refrigerator Tube
