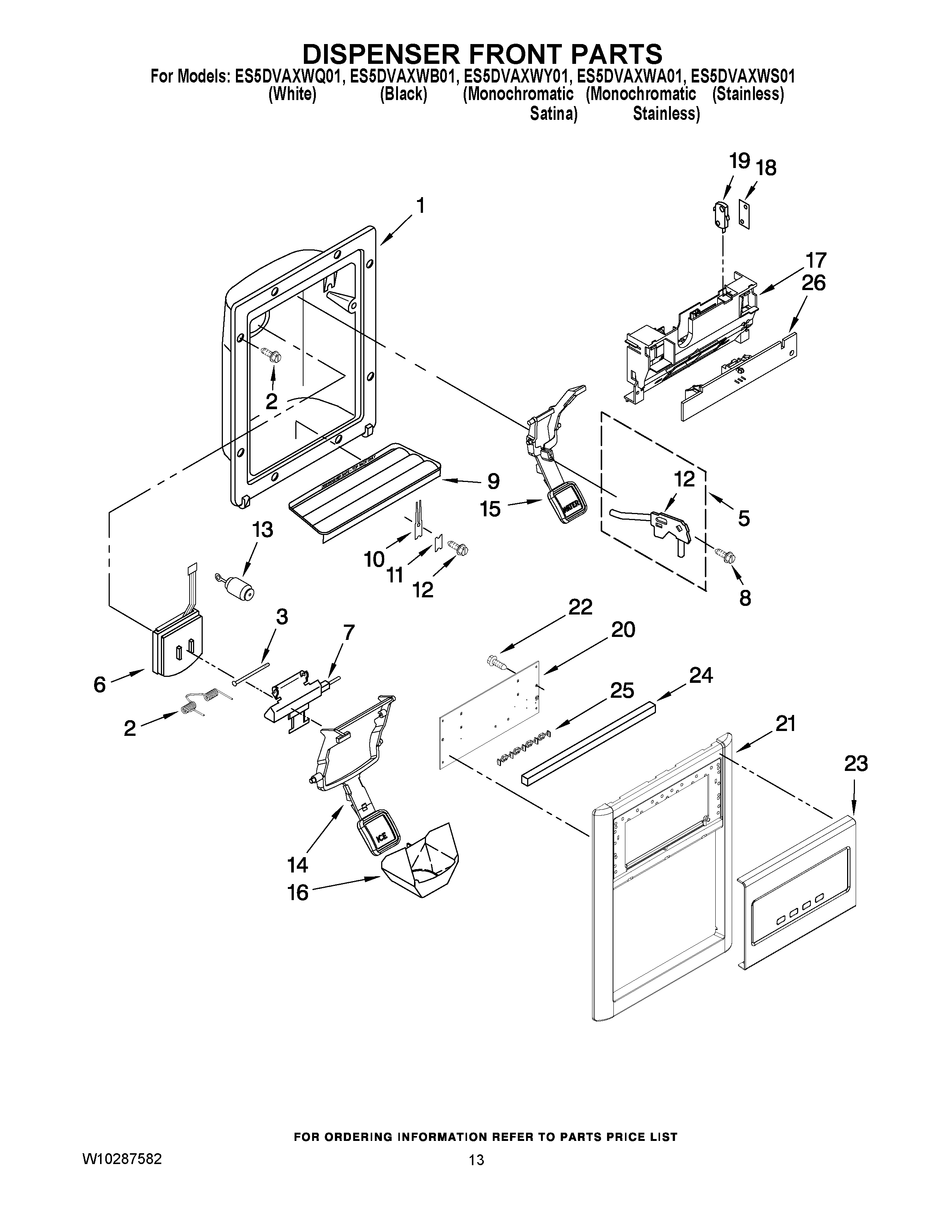

ES5DVAXWS01 08 – DISPENSER FRONT PARTSadmin2025-04-26T11:08:36+00:00ES5DVAXWS01 08 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | CABINET (NOT A SERVICEABLE PART) |
| 2 | WPW10224328 Whirlpool Refrigerator Spring |
| 3 | WP2196195 Whirlpool Refrigerator Door Pin |
| 5 | 8201537 Whirlpool Water Tubing Assembly |
| 6 | WP2180353 Whirlpool Dispenser Door |
| 7 | Door Mechanism Assembly |
| 8 | WP3400906 Whirlpool Refrigerator Screw |
| 9 | Grille, Disp (White) |
| 9 | Grille, Disp (Black) |
| 9 | Grille, Disp (Nickel One) |
| 10 | WP2194719 Whirlpool Refrigerator Clip |
| 11 | WP2195051 Whirlpool Refrigerator Clip |
| 12 | WP2304673 Whirlpool Refrigerator Bracket |
| 13 | Delay Mechanism |
| 14 | W10155161 Whirlpool Refrigerator Dispenser Arm |
| 14 | WPW10152853 Whirlpool Refrigerator Dispenser Arm |
| 14 | WPW10152854 Whirlpool Refrigerator Dispenser Arm |
| 15 | Lever, Water Dispenser (Apollo Grey) |
| 15 | WPW10152859 Whirlpool Refrigerator Dispenser Arm |
| 15 | WPW10152858 Whirlpool Refrigerator Dispenser Arm |
| 16 | WP2180224 Whirlpool Dispenser Funnel Guide |
| 17 | W10728484 Whirlpool Refrigerator Dispenser Control Bracket |
| 18 | Spacer, Switch (2) |
| 19 | WP2162361 Whirlpool Switch |
| 20 | Control, Elek |
| 21 | 2322507W Whirlpool Front Cover Assembly |
| 21 | BEZEL, DISP (STAINLESS) |
| 21 | BEZEL, DISP (MONO SATINA) |
| 21 | 2322507B Whirlpool Refrigerator Front Cover |
| 22 | 2006254 Whirlpool Refrigerator Screw |
| 23 | Fascia, Disp (Black) |
| 23 | Fascia, Disp (White) |
| 23 | FASCIA, DISP (MONO SATINA) |
| 23 | FASCIA, DISP (STAINLESS) |
| 24 | Gasket |
| 25 | Support, Window |
| 26 | LED Assy |
