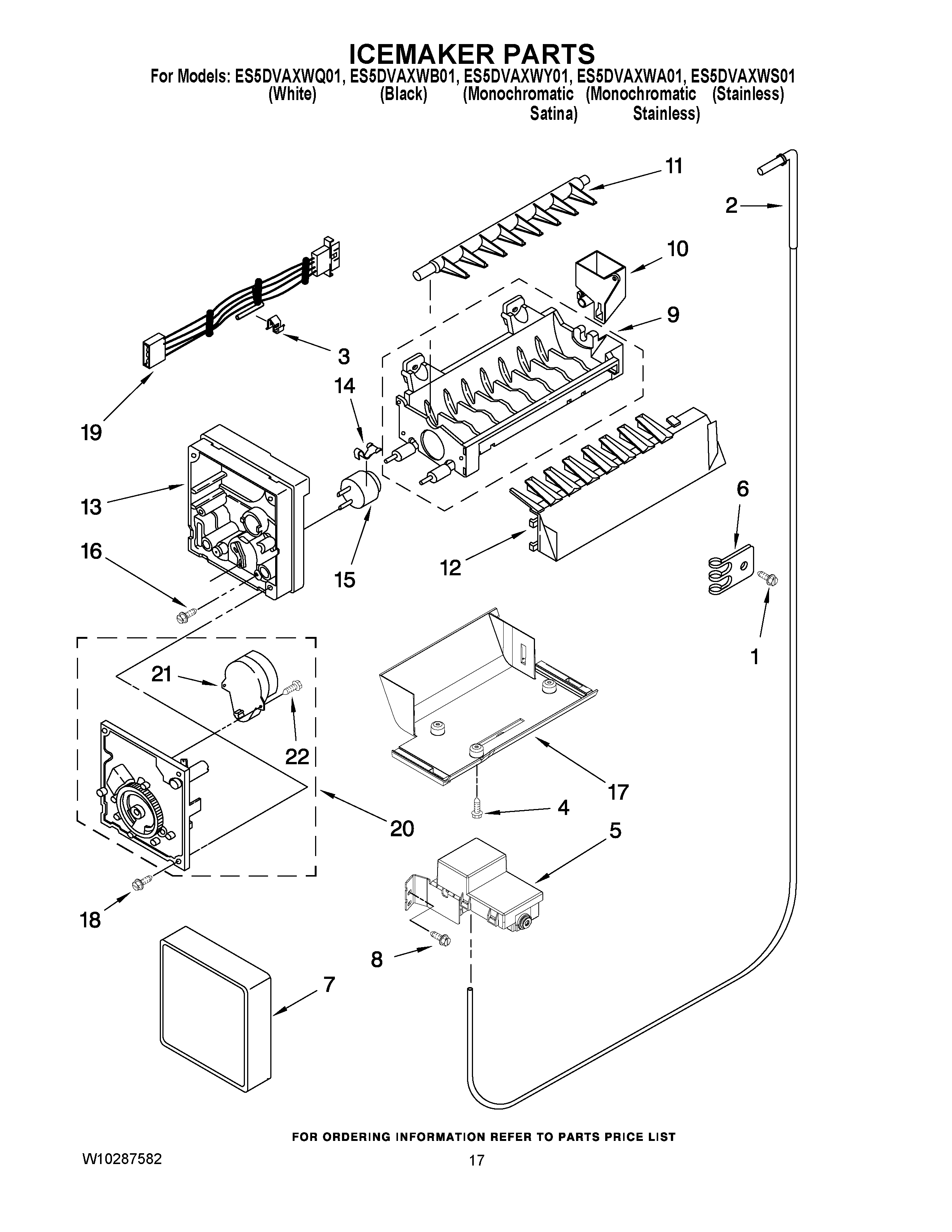

ES5DVAXWS01 10 – ICEMAKER PARTS

Products

Position	Product
2	Fitting, Water Tube
3	WP628379 Whirlpool Refrigerator Clip
4	WP489478 Whirlpool Refrigerator Screw
5	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
6	WP488366 Whirlpool Refrigerator Clamp
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPW10141625 Whirlpool Refrigerator Screw Assembly
9	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10	WPW10272168 Whirlpool Refrigerator Water Fill Cup
11	WP627843 Whirlpool Refrigerator Ejector Arm
12	W10297244 Whirlpool Refrigerator Arm Strip
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	BRACKET, ICEMAKER MOUNTING
18	WP681249 Whirlpool Screw Assembly
19	WP2187467 Whirlpool Refrigerator Wire Harness
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	489136 Whirlpool Refrigerator Screw
100	2198597 Whirlpool Refrigerator Ice Maker
