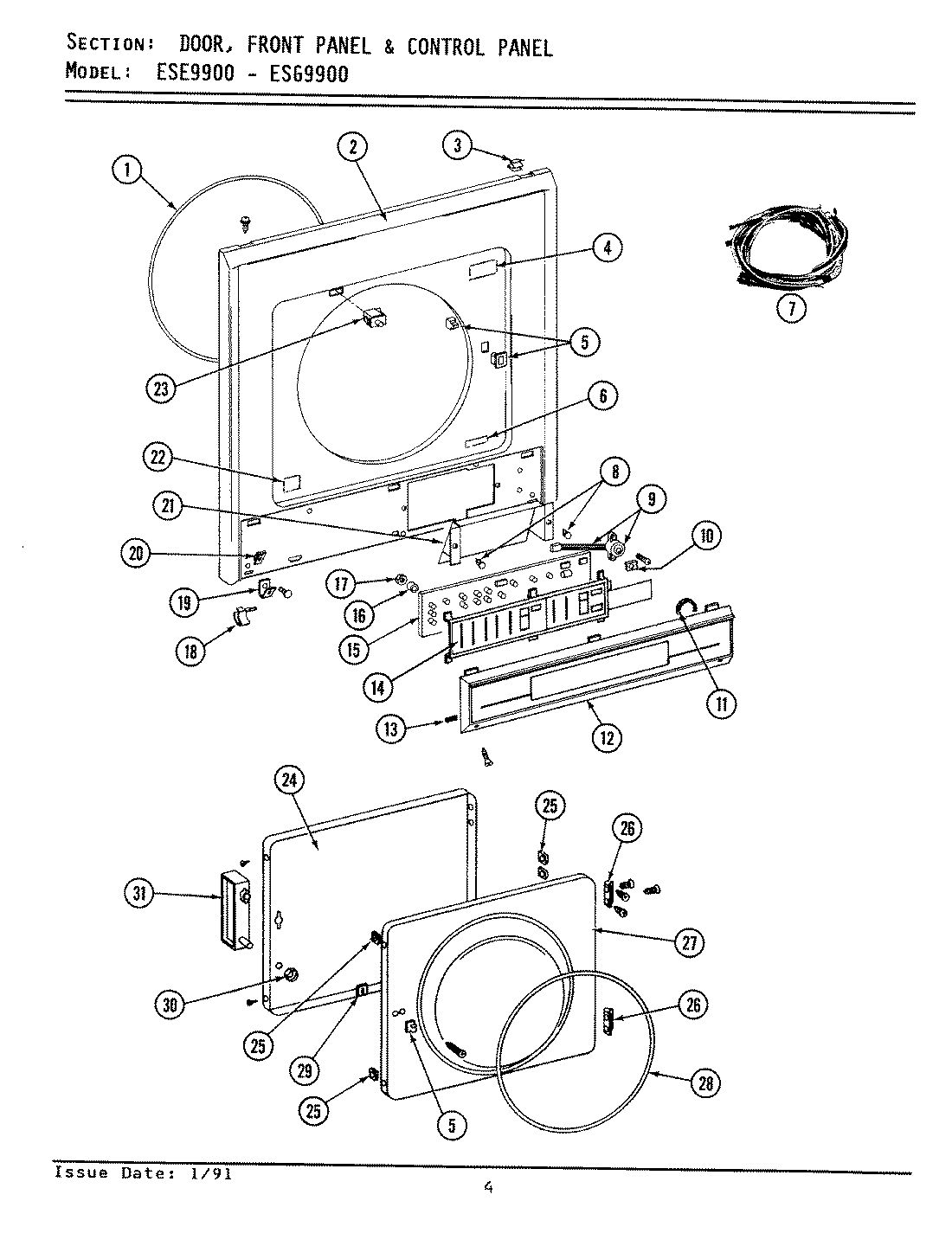

ESG9900 09 – DOOR, FRT & CNTRL PNL ESE9900 & ESG9900)

ESG9900 09 – DOOR, FRT & CNTRL PNL ESE9900 & ESG9900)

Written by

in

ESG9900 09 – DOOR, FRT & CNTRL PNL ESE9900 & ESG9900)

Products

PositionProduct
2MAY 314474
2WP1163283 Whirlpool Air Conditioner Screw
3MAY Y310376
4MAY Y313927
5SCREW
5306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
6MAY 314609
7MAY 306717
7MAY Y312953
7CABLE STRAP-HARNESS TO BASE
7WIRE HARNESS, MAIN (SG9900)
7WIRE HARNESS, MAIN (SE9900)
7MAY 307854
8MAY 314523
9MAY 306070
9SCREW, BUSHINGS
10MAY 912086
11MAY 314561
12MAY 210932
12CONTROL PANEL
13MAY 314560
14MAY Y307965
15MAY 306069
16MAY 912075
17M0282005 Whirlpool Nut
18MAY 314482
19WP90767 Whirlpool Screw
19MAY 314481
20MAY 314748
21MAY 314517
22MAY 314486
23W10169313 Whirlpool Door Switch Kit
24MAY 314475
25CLIP, DOOR LINER
26MAY Y304577
27MAY 306676
28MAY 314077
29MAY Y313911
30MAY 214872
31MAY 314476
