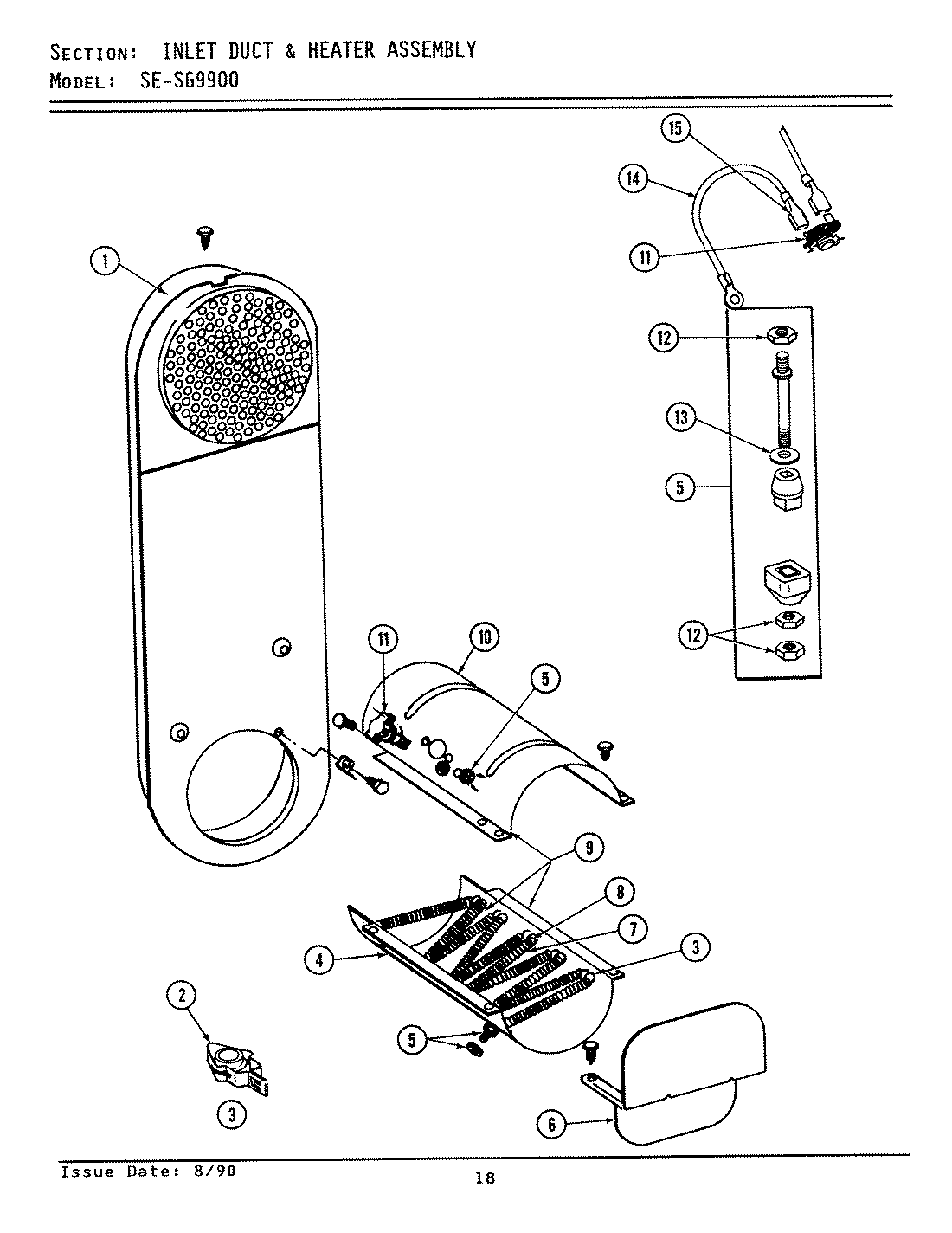

ESG9900 11 – INLET DUCT & HEATER ASSEMBLY (SE9900)

Products

Position	Product
1	MAY Y303362
2	MAY Y313270
3	WPY303881 Whirlpool Clip and Insulator
4	MAY 314501
5	Y304596 Whirlpool Terminal Insulator Assembly
6	MAY 314504
7	MAY 314503
8	MAY 306378
9	MAY Y306111
9	MAY Y306379
10	MAY 314502
11	WP90767 Whirlpool Screw
11	WP303896 Whirlpool High Limit Thermostat
11	WP303396 Whirlpool Thermostat
12	WP112432 Whirlpool Nut Assembly
13	WP311093 Whirlpool Washer 7
14	WPY304693 Whirlpool Wire Jumper
15	MAY 210745
