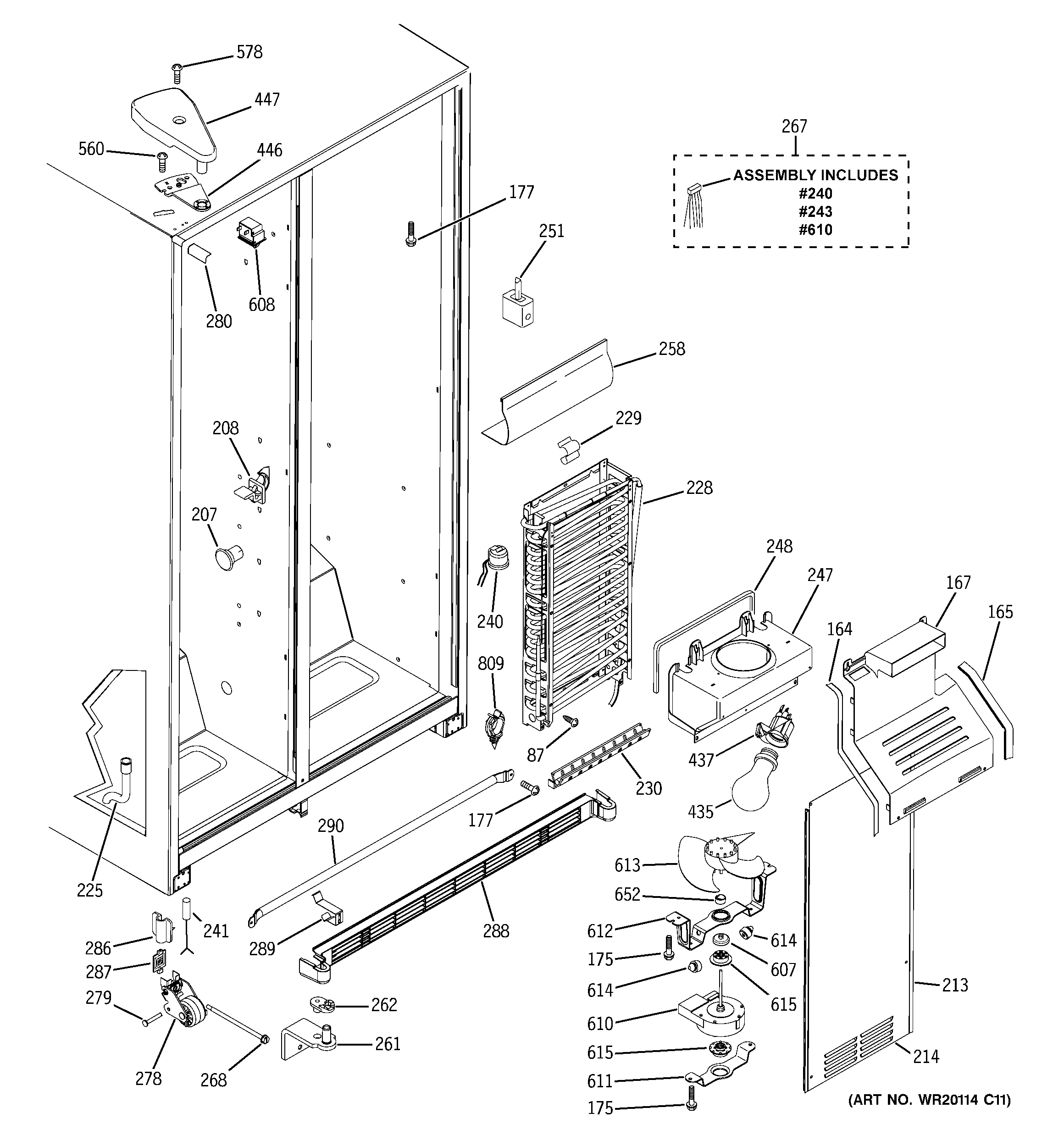

ESH22JFWCBB FREEZER SECTION

ESH22JFWCBB FREEZER SECTION

Written by

in

ESH22JFWCBB FREEZER SECTION

Products

PositionProduct
87WZ4X241D GE Screw Package
164GEN WR14X10049
165GEN WR14X10048
167GEN WR17X12186
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
177WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
207GEN WR02X4676
208GEN WR02X11561
213GEN WR14X10054
214GEN WR17X12409
225GEN WR02X11476
228WR87X28949 GE Refrigerator Evaporator
229GEN WR02X10552
230WR51X10101 GE Refrigerator Defrost Heater
240WR50X10068 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
247GEN WR17X12082
248GEN WR14X10050
251GEN WR02X10632
258GEN WR17X10765
261GEN WR13X10313
262WR02X11743 GE Refrigerator Hinge Cam Riser
267WR23X10496 GE Refrigerator Fan Heater Harness
268GEN WR01X10199
278WR02X12454 GE Refrigerator Mobility Front Assembly
279PIN PIVOT ASM
280GEN WR02X10610
286GEN WR17X10728
287GEN WR01X1815
288GEN WR74X10154
289GEN WR02X10560
290GEN WR17X11430
435RANGE ONLY 40W 120V APPL BULB
437WR02X10591 GE Light Socket and Terminal
446GEN WR13X10286
447COVER HNG BK
560SCR 12-24 CA HX 7/8 S
578WR01X10379 GE Refrigerator Hinge Cover Screw
607WR02X10322 GE Refrigerator Dust Cap B02
608FREEZER LIGHT SWITCH
610WR60X10185 GE Refrigerator Evaporator Fan Motor
611WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
612GEN WR02X11124
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X11331 GE Refrigerator Grommet
652WR02X12149 GE Refrigerator Ring
809WR1X1936 GE Refrigerator Fastener
