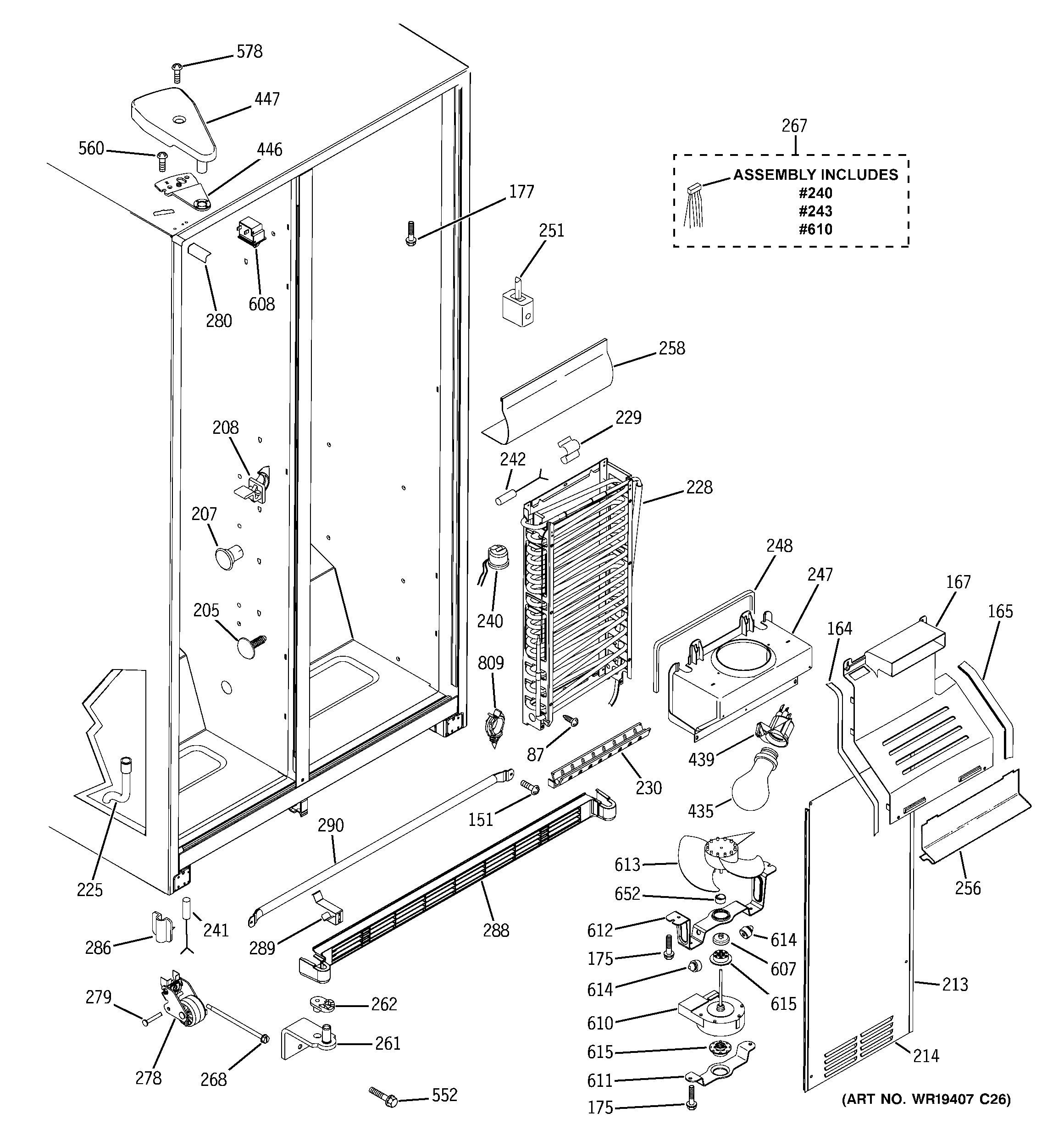

ESH22XGPCCC FREEZER SECTION

ESH22XGPCCC FREEZER SECTION

Written by

in

ESH22XGPCCC FREEZER SECTION

Products

PositionProduct
87WZ4X241D GE Screw Package
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
164GEN WR14X10049
165GEN WR14X10048
167GEN WR17X11063
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
177SCREW
205GEN WR01X10318
207GEN WR02X4676
208GEN WR02X11561
213GEN WR14X10054
214GEN WR17X11147
225GEN WR02X11476
228WR87X28949 GE Refrigerator Evaporator
229GEN WR02X10552
230WR51X10101 GE Refrigerator Defrost Heater
240WR50X10068 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
247GEN WR17X11227
248GEN WR14X10050
251GEN WR02X10632
256GEN WR17X10780
258GEN WR17X10765
261GEN WR13X10313
262WR02X11743 GE Refrigerator Hinge Cam Riser
267GEN WR23X10312
268GEN WR01X10199
278WR02X12454 GE Refrigerator Mobility Front Assembly
279GEN WR02X10574
280WR02X10613 GE Corner Cap – Biscuit
286GEN WR17X10728
288GEN WR74X10146
289GEN WR02X10560
290GEN WR17X11430
435RANGE ONLY 40W 120V APPL BULB
439WR02X10591 GE Light Socket and Terminal
446GEN WR13X10286
447CVR HNG BQ
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560GEN WR01X10195
578WR01X10379 GE Refrigerator Hinge Cover Screw
607WR02X10322 GE Refrigerator Dust Cap B02
608FREEZER LIGHT SWITCH
610DC, EVAP MOTOR W/THERMISTOR
611WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
612GEN WR02X11124
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X11331 GE Refrigerator Grommet
652WR02X12149 GE Refrigerator Ring
809WR1X1936 GE Refrigerator Fastener
