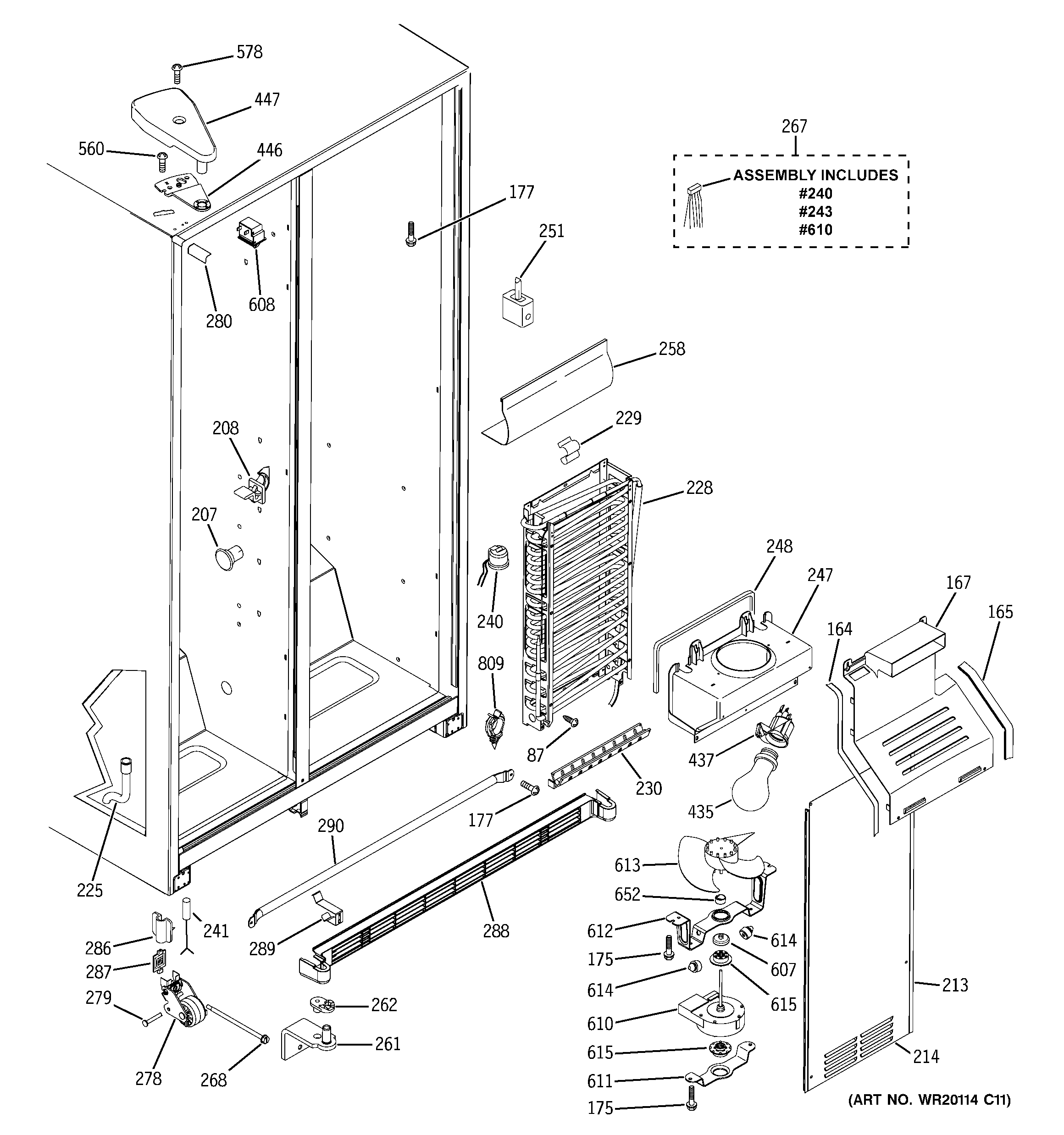

ESH25JFXABB FREEZER SECTION

ESH25JFXABB FREEZER SECTION

Written by

in

ESH25JFXABB FREEZER SECTION

Products

PositionProduct
87WZ4X241D GE Screw Package
164GEN WR14X10049
165GEN WR14X10048
167GEN WR17X12192
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
177WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
207GEN WR02X4676
208GEN WR02X11561
213GEN WR14X10045
214GEN WR17X12410
225GEN WR02X11476
228WR87X29147 GE Refrigerator 25' Evaporator
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
240WR50X10065 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
247ORIFICE EVAP FAN
248GEN WR14X10050
251GEN WR02X10632
258GEN WR17X10724
261GEN WR13X10313
262WR02X11743 GE Refrigerator Hinge Cam Riser
267WR23X10476 GE Refrigerator Fan Heater Harness
268GEN WR01X10199
278WR02X12454 GE Refrigerator Mobility Front Assembly
279PIN PIVOT ASM
280GEN WR02X10610
280GEN WR02X10549
286GEN WR17X10728
287GEN WR01X1815
288GEN WR74X10145
288GEN WR74X10151
289GEN WR02X10560
290WR17X11428 GE Refrigerator Curb Handling Bar
435RANGE ONLY 40W 120V APPL BULB
437WR02X10591 GE Light Socket and Terminal
446GEN WR13X10286
447GEN WR02X11480
447COVER HNG BK
560SCR 12-24 CA HX 7/8 S
578WR01X10379 GE Refrigerator Hinge Cover Screw
607WR02X10322 GE Refrigerator Dust Cap B02
608FREEZER LIGHT SWITCH
610WR60X10185 GE Refrigerator Evaporator Fan Motor
611WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
612GEN WR02X11124
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X11331 GE Refrigerator Grommet
652WR02X12149 GE Refrigerator Ring
809WR1X1936 GE Refrigerator Fastener
