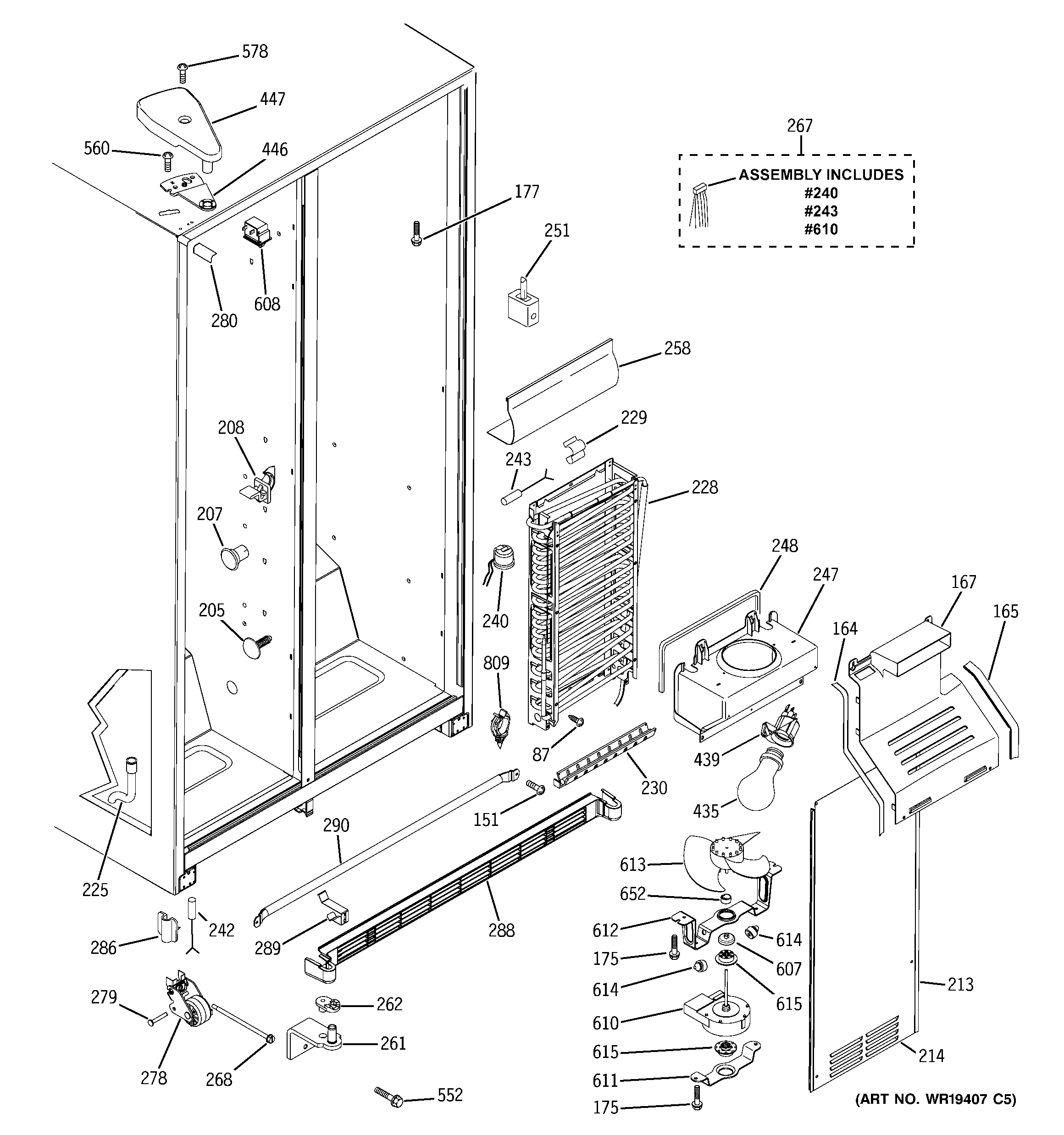

ESH25XGPDCC FREEZER SECTION

ESH25XGPDCC FREEZER SECTION

Written by

in

ESH25XGPDCC FREEZER SECTION

Products

PositionProduct
87WZ4X241D GE Screw Package
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
164GEN WR14X10049
165GEN WR14X10048
167GEN WR17X11064
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
177SCREW
205GEN WR01X10318
207GEN WR02X4676
208GEN WR02X11561
213GEN WR14X10045
214GEN WR17X11144
225GEN WR02X11476
228WR87X29147 GE Refrigerator 25' Evaporator
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
240WR50X10068 GE Refrigerator Defrost Thermostat
242WR55X10025 GE Refrigerator Temperature Sensor
247GEN WR17X11576
248GEN WR14X10050
251GEN WR02X10632
258GEN WR17X10724
261GEN WR13X10313
262WR02X11743 GE Refrigerator Hinge Cam Riser
267WR60X10185 GE Refrigerator Evaporator Fan Motor
268GEN WR01X10199
278WR02X12454 GE Refrigerator Mobility Front Assembly
279GEN WR02X10574
280WR02X10613 GE Corner Cap – Biscuit
286GEN WR17X10728
288GRILLE BASE ASM BQ
289GEN WR02X10560
290WR17X11428 GE Refrigerator Curb Handling Bar
435RANGE ONLY 40W 120V APPL BULB
439WR02X10591 GE Light Socket and Terminal
446GEN WR13X10286
447CVR HNG BQ
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560GEN WR01X10195
578WR01X10379 GE Refrigerator Hinge Cover Screw
607WR02X10322 GE Refrigerator Dust Cap B02
608FREEZER LIGHT SWITCH
611WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
612GEN WR02X11124
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X11331 GE Refrigerator Grommet
652WR02X12149 GE Refrigerator Ring
809WR1X1936 GE Refrigerator Fastener
