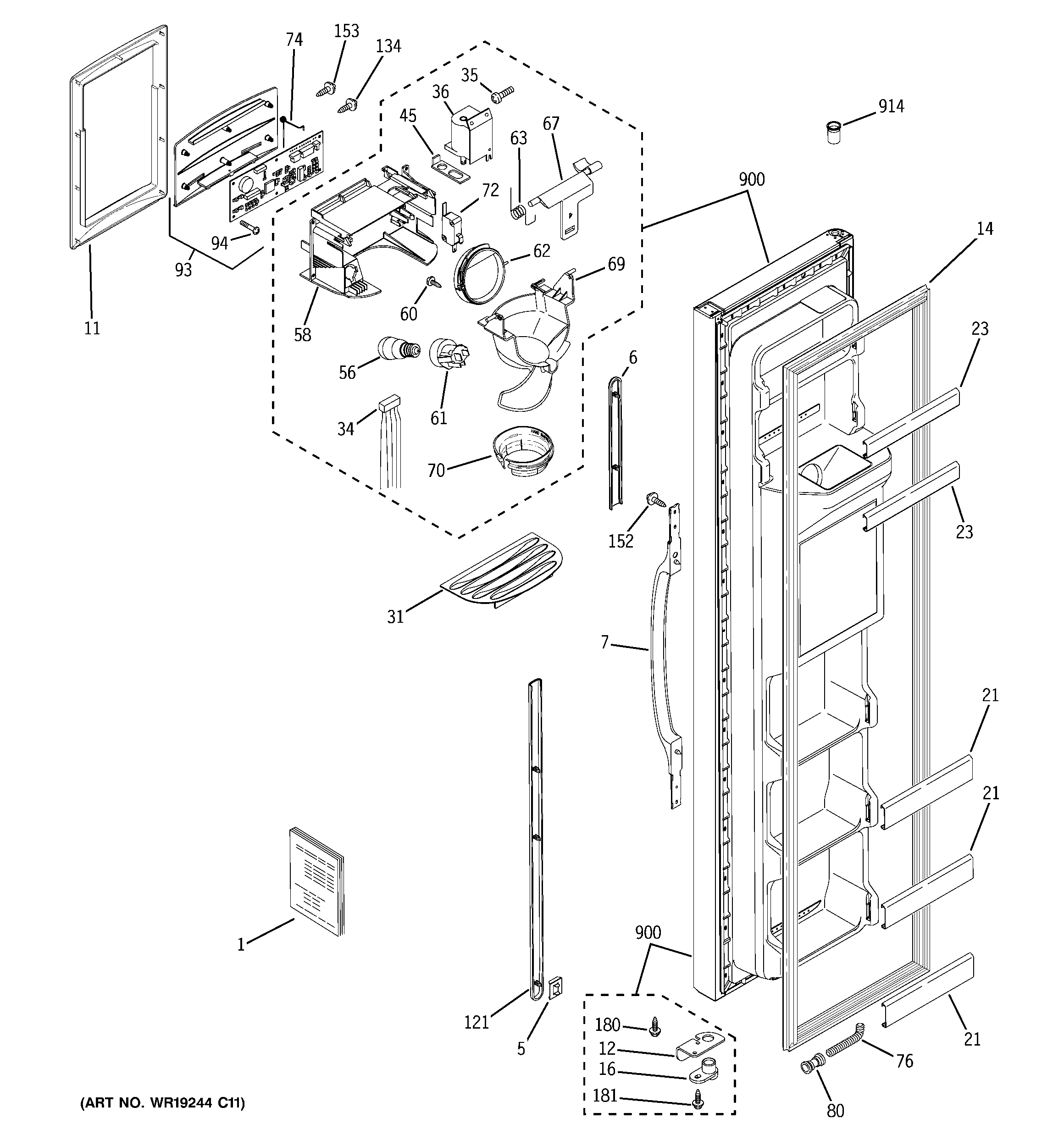

ESH25XGRABB FREEZER DOOR

ESH25XGRABB FREEZER DOOR

Written by

in

ESH25XGRABB FREEZER DOOR

Products

PositionProduct
1GEN 31-51447
1GEN 49-60272
5GEN WR02X10431
6GEN WR12X10393
7GEN WR12X10434
11WR38X23216 GE Refrigerator Trim Recess
12WR02X11466 GE Refrigerator Door Stop Plate
14WR24X23252 GE Refrigerator Door Gasket
16GEN WR02X11478
21GEN WR17X10709
23GEN WR17X10710
31GEN WR17X10745
34GEN WR23X10166
35WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X11170 GE Refrigerator Housing Shield Dispenser
60WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11267 GE Refrigerator Ice Dispenser Funnel
70WR49X10076 GE Refrigerator FUNL EXTN BK
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
76GEN WR02X8933
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10315
94GEN WR01X10319
121GEN WR12X10392
134WR01X10019 GE Refrigerator Screw 6-10 PL FLP 1/2 S
152GEN WR01X10038
153WR1X1505D GE Refrigerator Screw Package of 12
180WE02X10011 GE Screw
181GEN WR01X10215
900GEN WR78X10671
914GEN WR01X10200
