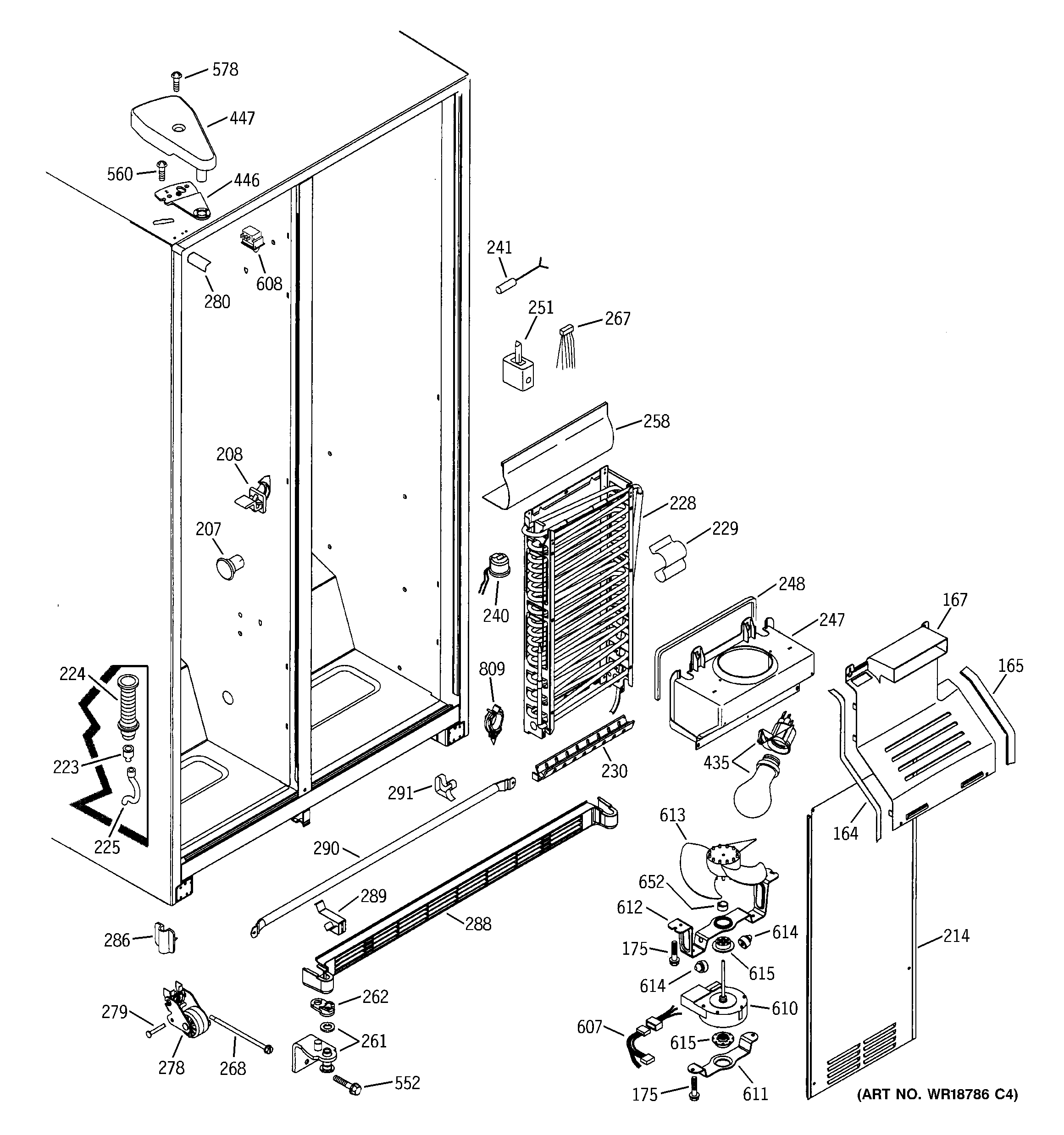

ESS25XGMACC FREEZER SECTION

ESS25XGMACC FREEZER SECTION

Written by

in

ESS25XGMACC FREEZER SECTION

Products

PositionProduct
164GEN WR14X10049
165GEN WR14X10048
167GEN WR17X10705
175SCR 8-18 AB IHW 5/8 S
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
207GEN WR02X4676
208GEN WR02X4674
214GEN WR01X10064
214GEN WR14X10045
223GEN WR02X10698
224GEN WR02X10563
225GEN WR02X10699
225GEN WR01X5042
228WR87X29147 GE Refrigerator 25' Evaporator
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
240WR50X10068 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
247GEN WR17X10721
248GEN WR14X10050
251GEN WR02X10632
258GEN WR17X10724
261GEN WR01X10202
261GEN WR13X10120
262GEN WR02X10568
267GEN WR23X10164
268GEN WR01X10199
278WR02X12454 GE Refrigerator Mobility Front Assembly
279GEN WR02X10574
280WR02X10613 GE Corner Cap – Biscuit
286GEN WR17X10728
288GEN WR74X10057
289GEN WR02X10560
290WR17X11428 GE Refrigerator Curb Handling Bar
291GEN WR02X10589
435WR02X10591 GE Light Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
446GEN WR13X10121
447GEN WR02X10614
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560GEN WR01X10195
578WZ2X464D GE Screw
607GEN WR23X10154
608FREEZER LIGHT SWITCH
610WR60X10185 GE Refrigerator Evaporator Fan Motor
611WR02X10764 GE Refrigerator Evaporator Bracket
612GEN WR02X10547
613BLADE EVAP FAN ASM
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
809WR1X1936 GE Refrigerator Fastener
