ESS25XGSBCC FREEZER DOOR

ESS25XGSBCC FREEZER DOOR

Written by

in

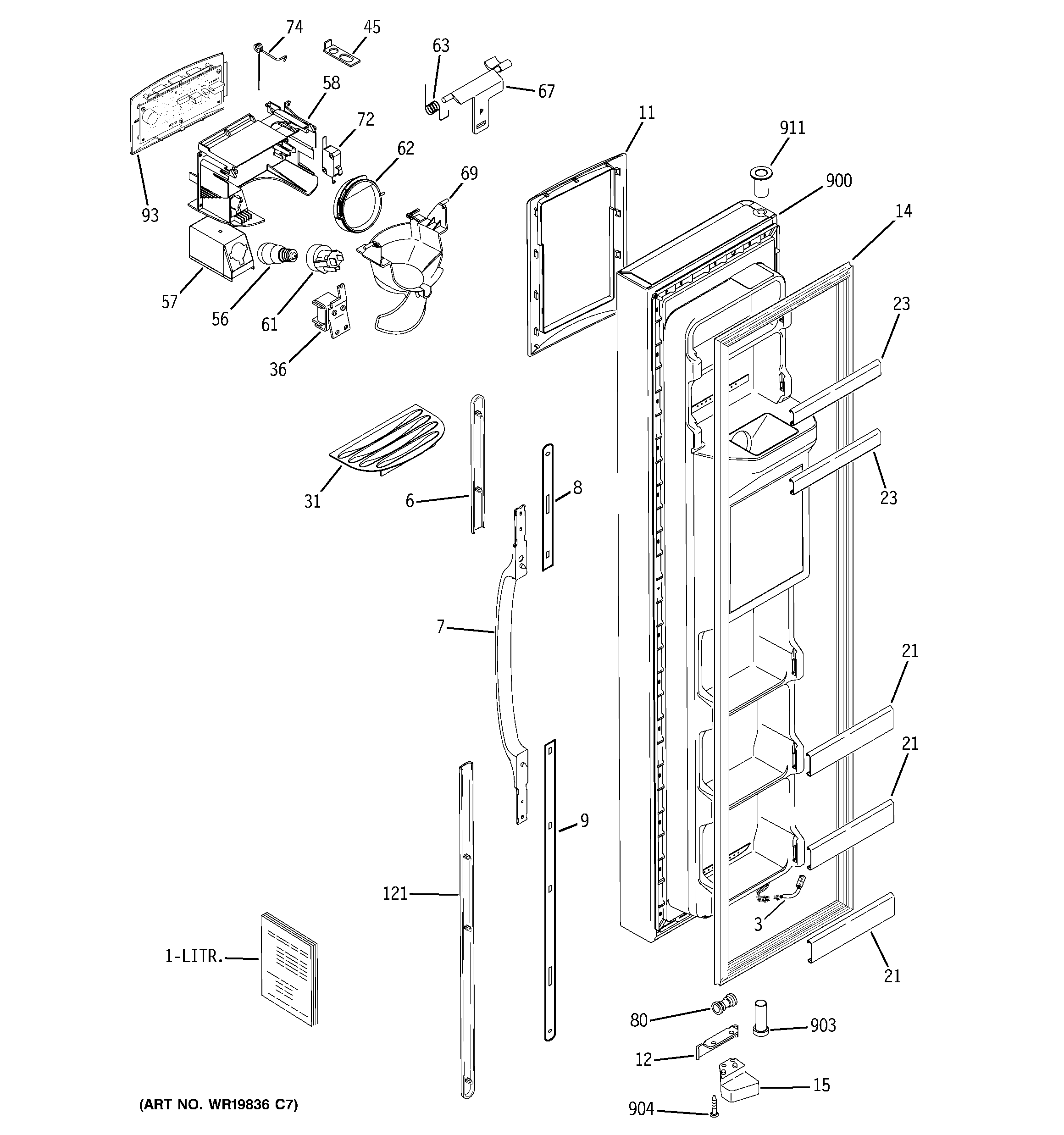

ESS25XGSBCC FREEZER DOOR

Products

PositionProduct
1GEN 31-51623
1GEN 49-60343
3GEN WR09X10132
6GEN WR12X10323
7GEN WR12X10783
8GEN WR12X10150
9GEN WR12X10190
11WR38X10364 GE Refrigerator Bisque Trim Recess Dispenser
12GEN WR02X10817
14WR24X10156 GE Refrigerator Door Gasket White
15WR02X10638 GE Refrigerator Cam Closure
21GEN WR17X11940
23GEN WR17X11941
31GEN WR17X11656
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58GEN WR17X11863
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69GEN WR17X11966
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10516
121GEN WR12X10324
900GEN WR78X11425
903WR01X10237 GE Refrigerator Thimble Door Bottom Bisque
904WR01X10611 GE Screw
911WR01X10957 GE Refrigerator Door Thimble
