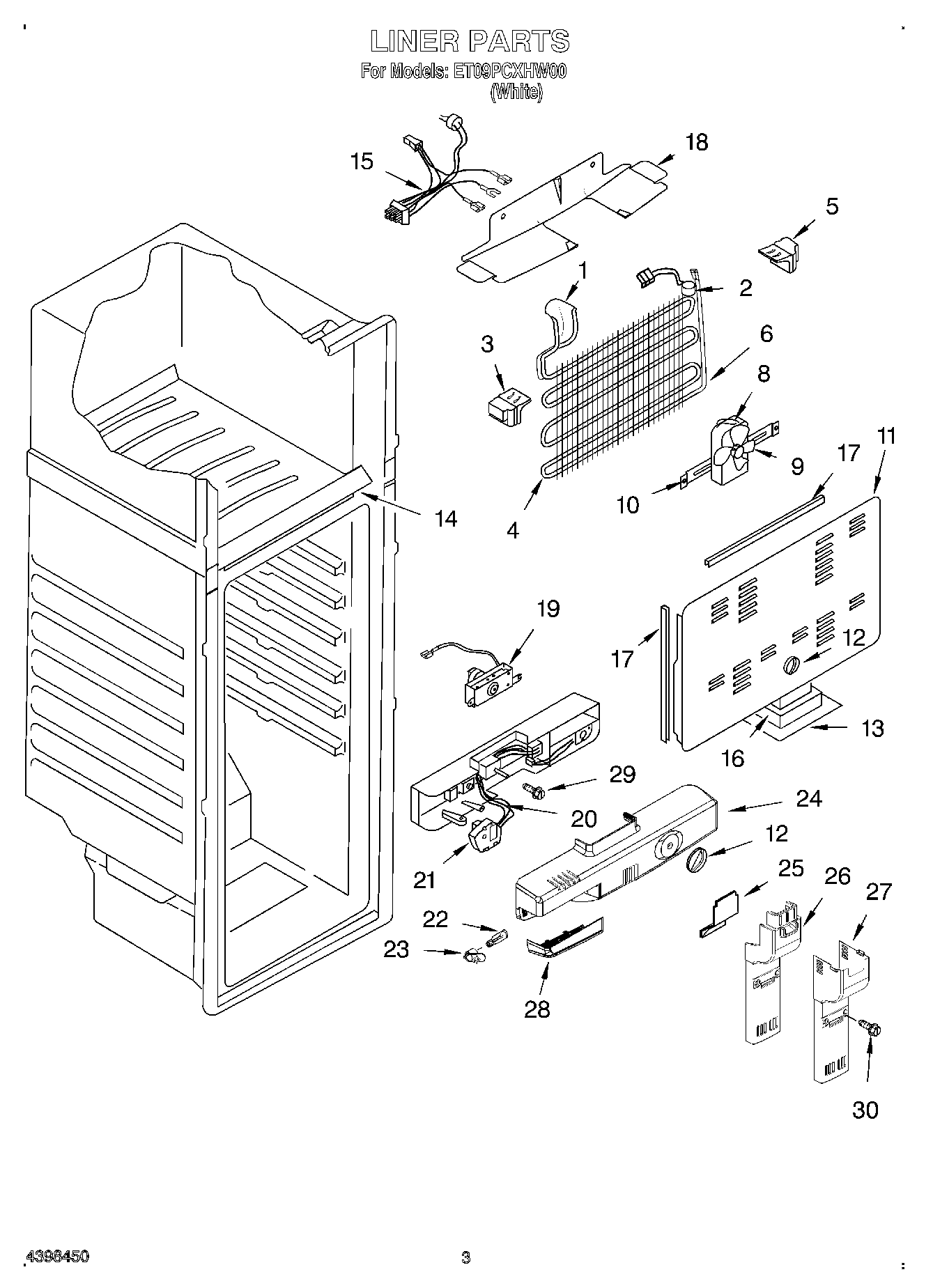

ET09PCXHW00 02 – LINER

ET09PCXHW00 02 – LINER

Written by

in

ET09PCXHW00 02 – LINER

Products

PositionProduct
14318168 Whirlpool Refrigerator Primary Permagum Sealer
29791833 Whirlpool Refrigerator Clip
2Bi-Metal, Defrost
3Wedge, Mounting Evaporator (Left)
4Evaporator
5Wedge, Mounting Evaporator (Right)
6Heater, Defrost
7Clip, Defrost Heater
8Motor, Fan
9Blade, Fan
10Grommet
11Plenum Assembly (Rear)
11Plenum Assembly (Front)
12Knob
13Gasket, Air Separator (Top)
13Gasket, Air Separator (Bottom)
14Floor, Freezer
15Wiring Harness
16Body, Air Separator
17Gasket, Cover (Top)
17Gasket, Cover (Side)
18Heat Shield
19Thermostat Assy.
20Wiring Harness, Control Box
21Timer, Defost
22Bulb, Light
23Socket, Light
24Control Box
25Body, Air Diffuser (Rear)
26Body, Air Diffuser (Not Serviced)
27Cover, Diffuser
28Lens, Light
29Screw
30Screw
