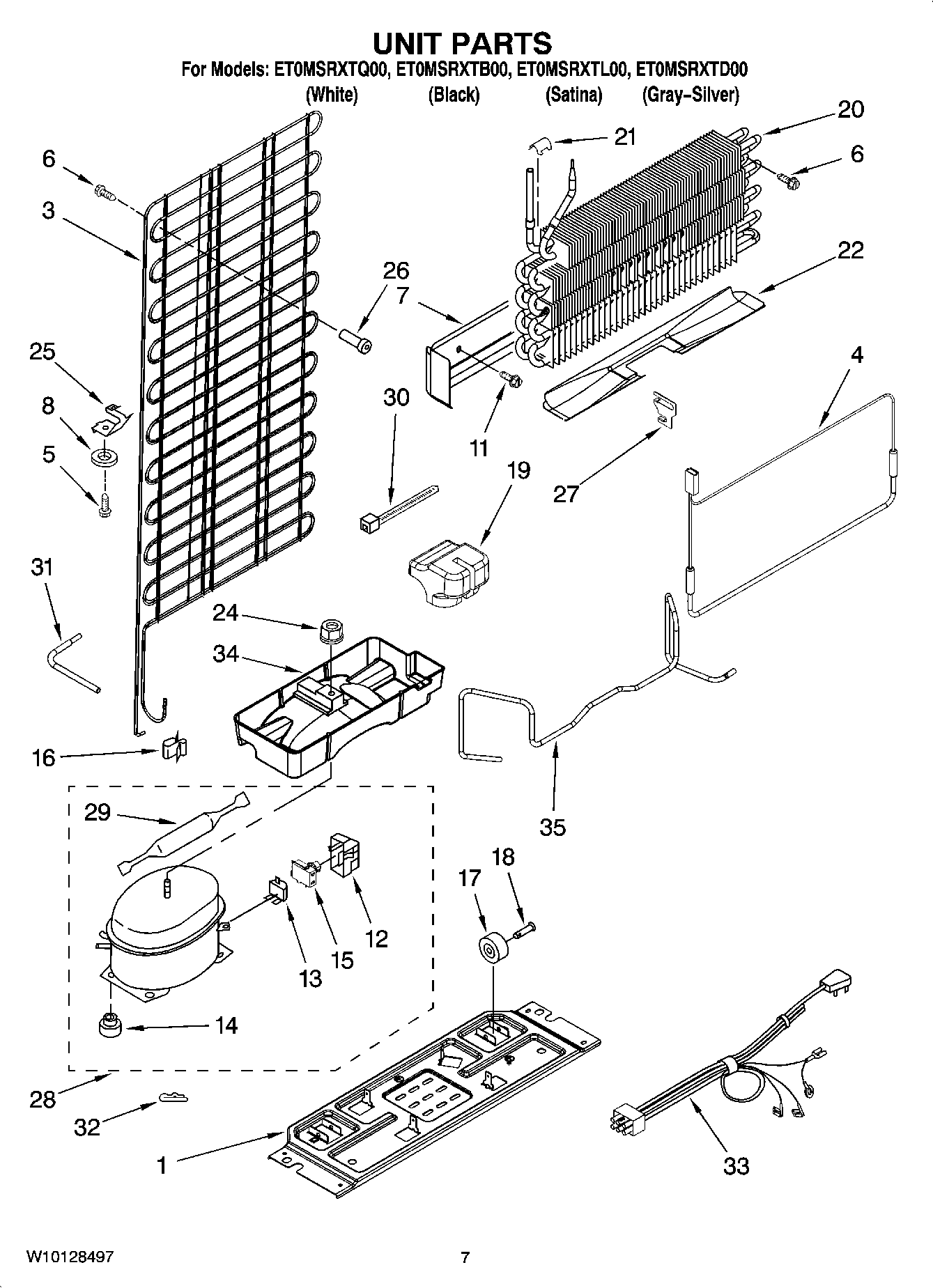

ET0MSRXTB00 04 – UNIT PARTS

ET0MSRXTB00 04 – UNIT PARTS

Written by

in

ET0MSRXTB00 04 – UNIT PARTS

Products

PositionProduct
12211011 Whirlpool Support
3Condenser
4WP2210895 Whirlpool Refrigerator Heater
5WP965173 Whirlpool Dishwasher Screw
6Screw
7Heat Shield
88526417 Whirlpool Washer
11WP489442 Whirlpool Refrigerator Screw
12WP2162358 Whirlpool Refrigerator Terminal Cover
132264602 Whirlpool Refrigerator Overload
14WP2163786 Whirlpool Refrigerator Grommet
152264603 Whirlpool Refrigerator Start Relay
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18WP2264756 Whirlpool Refrigerator Rivet
19Wedge, Evaporator
20Evaporator Assy.
219791833 Whirlpool Refrigerator Clip
222265095 Whirlpool Refrigerator Drip Pan
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
262258451 Whirlpool Spacer
272211075 Whirlpool Bracket
28Compressor (Includes Illus. 12,13,14 15 & 29)
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
31Tube, Process
32Clip, Compressor
332264421 Whirlpool Refrigerator Wire Harness
34Evaporator Tray
35Following Parts Not Illustrated and Optional Parts Not Included
35Tube, Discharge
35VALVE, ACCESS (5/8“)
35VALVE, ACCESS (1/2“)
35WP978025 Whirlpool Refrigerator Valve
35978030 Whirlpool Refrigerator Valve
35978027 Whirlpool Refrigerator Primary Valve
35978026 Whirlpool Refrigerator Primary Valve
35876764 Whirlpool Refrigerator Primary Valve
35REFRIGERANT CHARGE 3.00 Ozs. (R134A)
