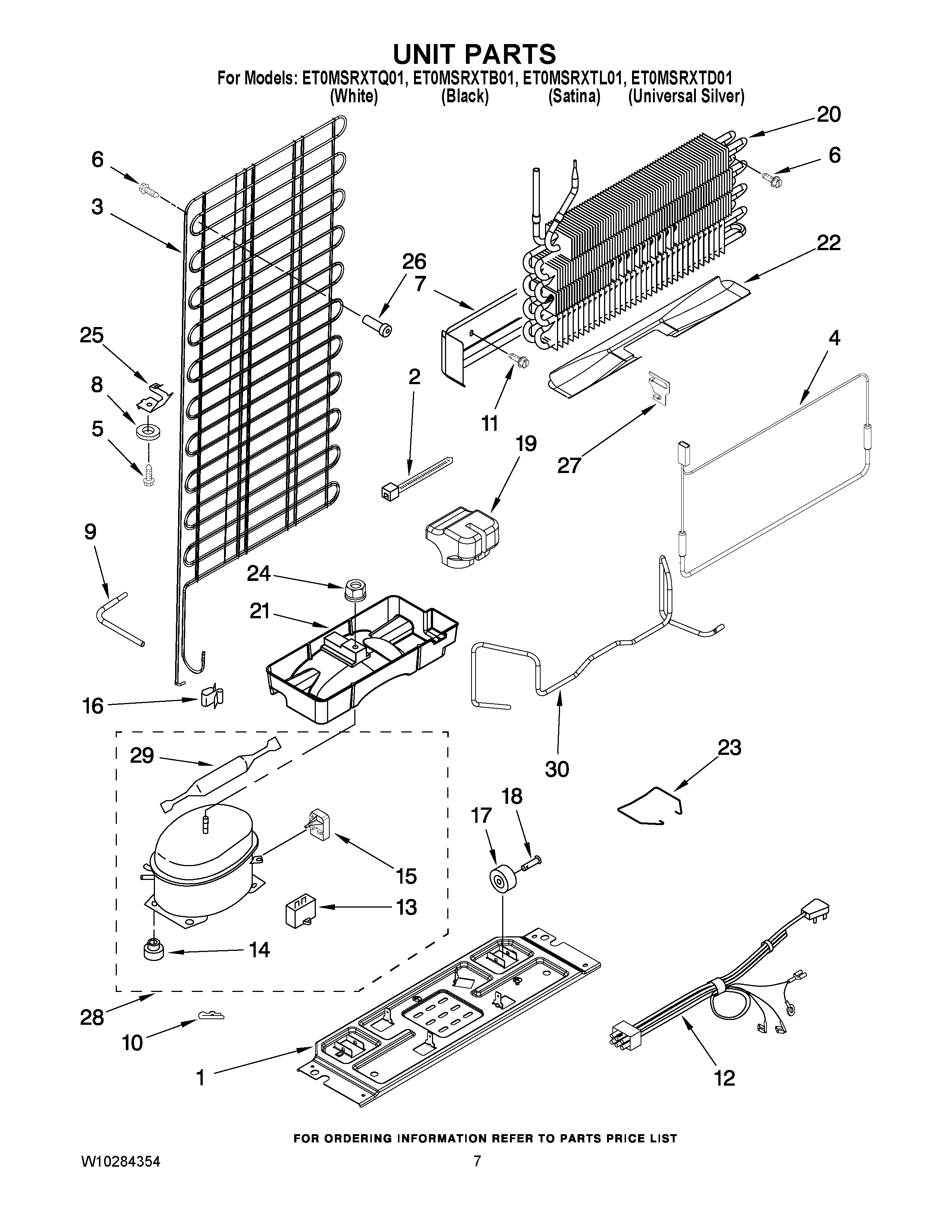

ET0MSRXTB01 04 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2``)
NIWP978025 Whirlpool Refrigerator Valve
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8``)
12211011 Whirlpool Support
2WPW10339879 Whirlpool Wire Tie
3Condenser
4WP2210895 Whirlpool Refrigerator Heater
5WP965173 Whirlpool Dishwasher Screw
6Screw
7Heat Shield
88526417 Whirlpool Washer
92202074 Whirlpool Tube
10Clip, Compressor
11WP489442 Whirlpool Refrigerator Screw
12W10216731 Whirlpool Refrigerator Wire Harness
13WP2262343 Whirlpool Refrigerator/Freezer Capacitor
14WP2163786 Whirlpool Refrigerator Grommet
15WP2264424 Whirlpool Refrigerator Start Relay
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18WP2264756 Whirlpool Refrigerator Rivet
19Wedge, Evaporator
20Evaporator Assy.
21Evaporator Tray
222265095 Whirlpool Refrigerator Drip Pan
232212996 Whirlpool Refrigerator Retainer
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
262258451 Whirlpool Spacer
272211075 Whirlpool Bracket
28W10237328 Whirlpool Refrigerator Compressor
29WPW10143759 Whirlpool Dryer Filter
29W10843121 Whirlpool Refrigerator Tube
302262342 Whirlpool Refrigerator Tube
