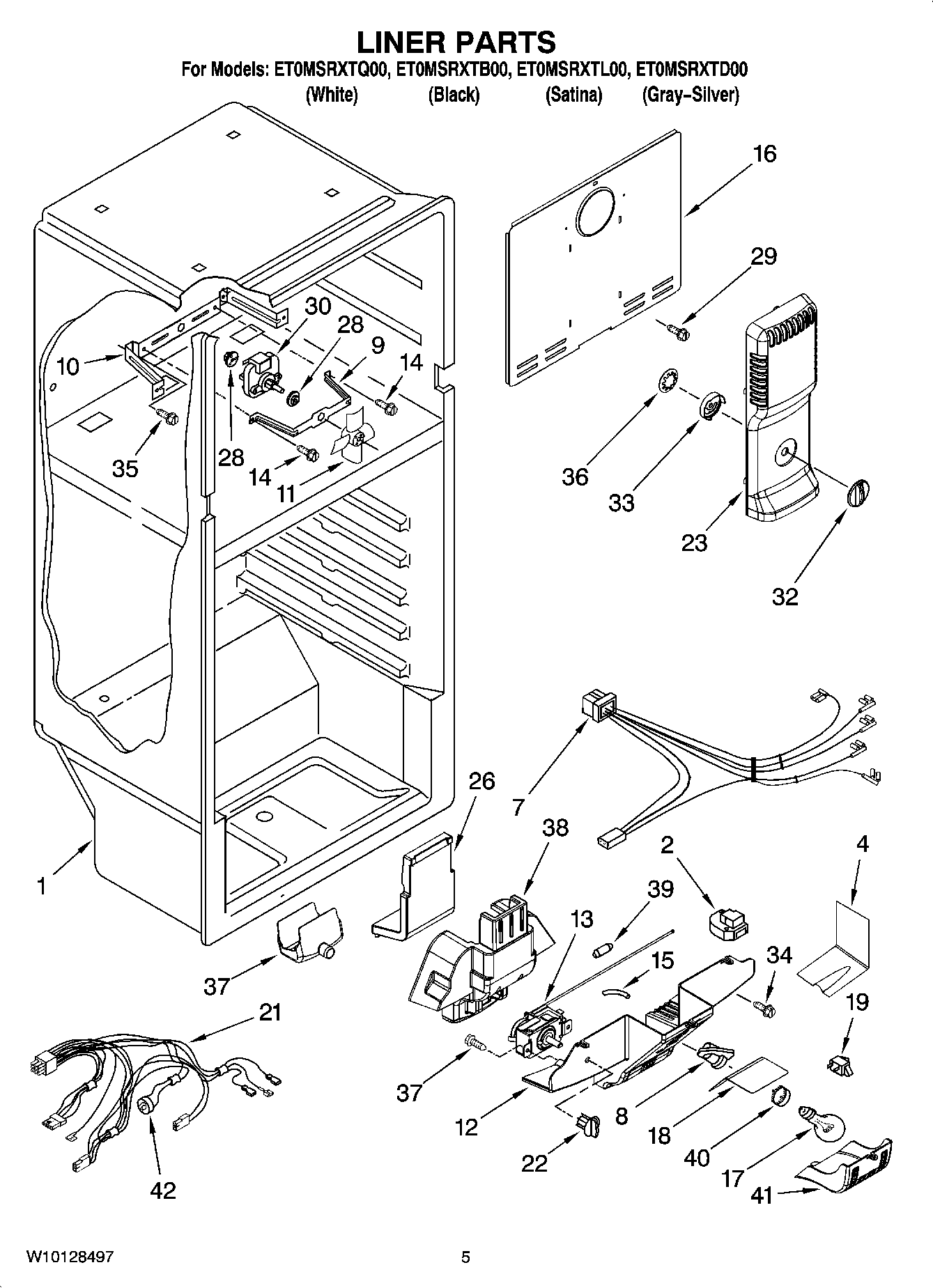

ET0MSRXTD00 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Defrost Timer
4	Shield, Timer
7	2265867 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	WP2211031 Whirlpool Refrigerator Thermostat
14	WP489399 Whirlpool Refrigerator Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Cover, Evaporator
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	2210832 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
21	2264422 Whirlpool Wire Harness
22	Control Knob
23	Air Tower
26	Air Diffuser, Rear
28	WP2264462 Whirlpool Refrigerator Grommet
29	WP489478 Whirlpool Refrigerator Screw
30	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
32	2211237 Whirlpool Refrigerator Thermal Knob
33	Damper, Freezer Control
34	WP487353 Whirlpool Refrigerator Screw
35	WP489442 Whirlpool Refrigerator Screw
36	2211239 Whirlpool Refrigerator Nut
37	Drain Cup
38	Air Diffuser (Front)
39	Weight, Thermal
40	WP2175210 Whirlpool Refrigerator Shroud
41	Cover, Light
42	WP2211224 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
