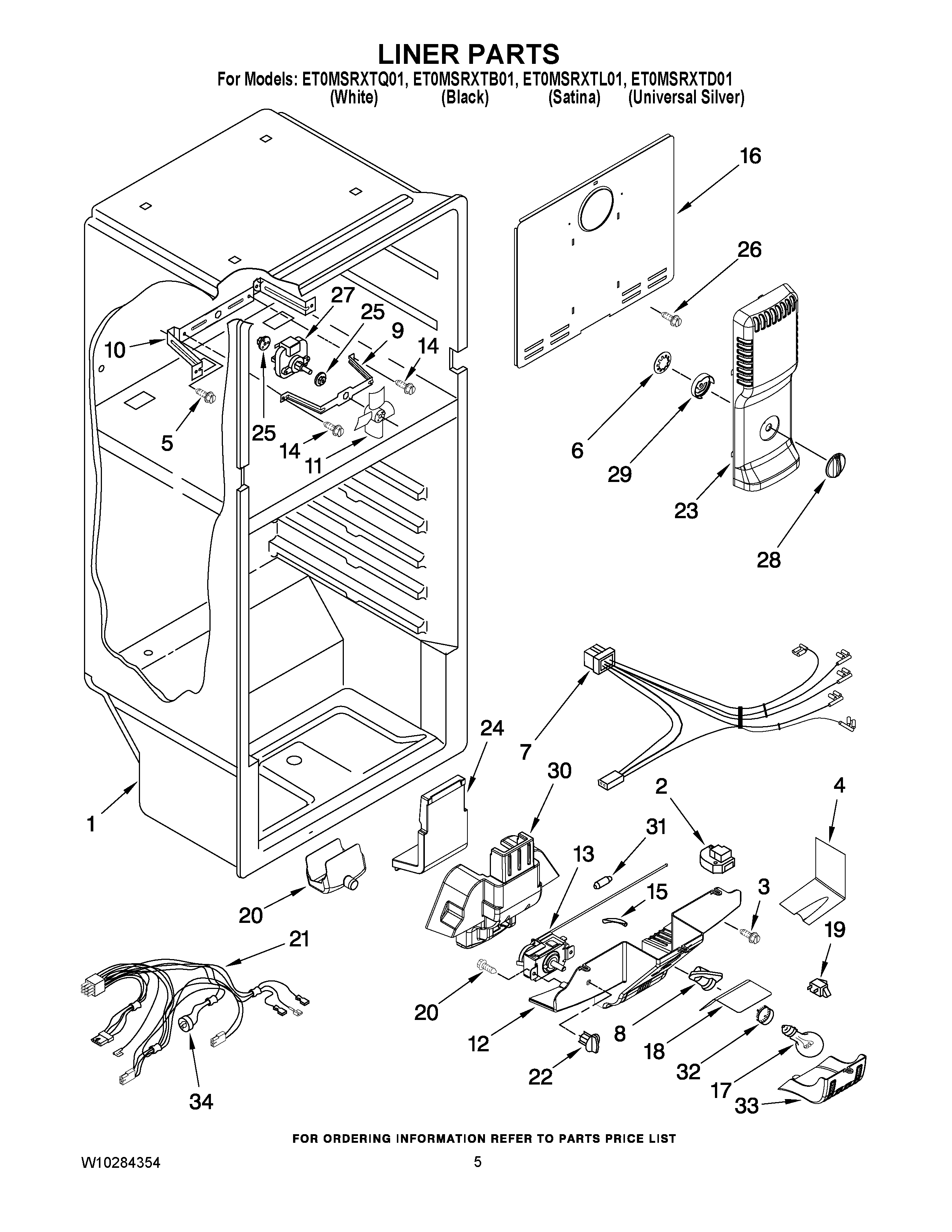

ET0MSRXTD01 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Defrost Timer
3	WP487353 Whirlpool Refrigerator Screw
4	Shield, Timer
5	WP489442 Whirlpool Refrigerator Screw
6	2211239 Whirlpool Refrigerator Nut
7	2265867 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	WP2211031 Whirlpool Refrigerator Thermostat
14	WP489399 Whirlpool Refrigerator Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Cover, Evaporator
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	2210832 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	Drain Cup
21	W10164677 Whirlpool Refrigerator Wire Harness
22	Control Knob
23	Air Tower
24	Air Diffuser, Rear
25	WP2264462 Whirlpool Refrigerator Grommet
26	WP489478 Whirlpool Refrigerator Screw
27	WPW10188389 Whirlpool Evaporator Fan Motor
28	2211237 Whirlpool Refrigerator Thermal Knob
29	Damper, Freezer Control
30	Air Diffuser (Front)
31	Weight, Thermal
32	WP2175210 Whirlpool Refrigerator Shroud
33	Cover, Light
34	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
