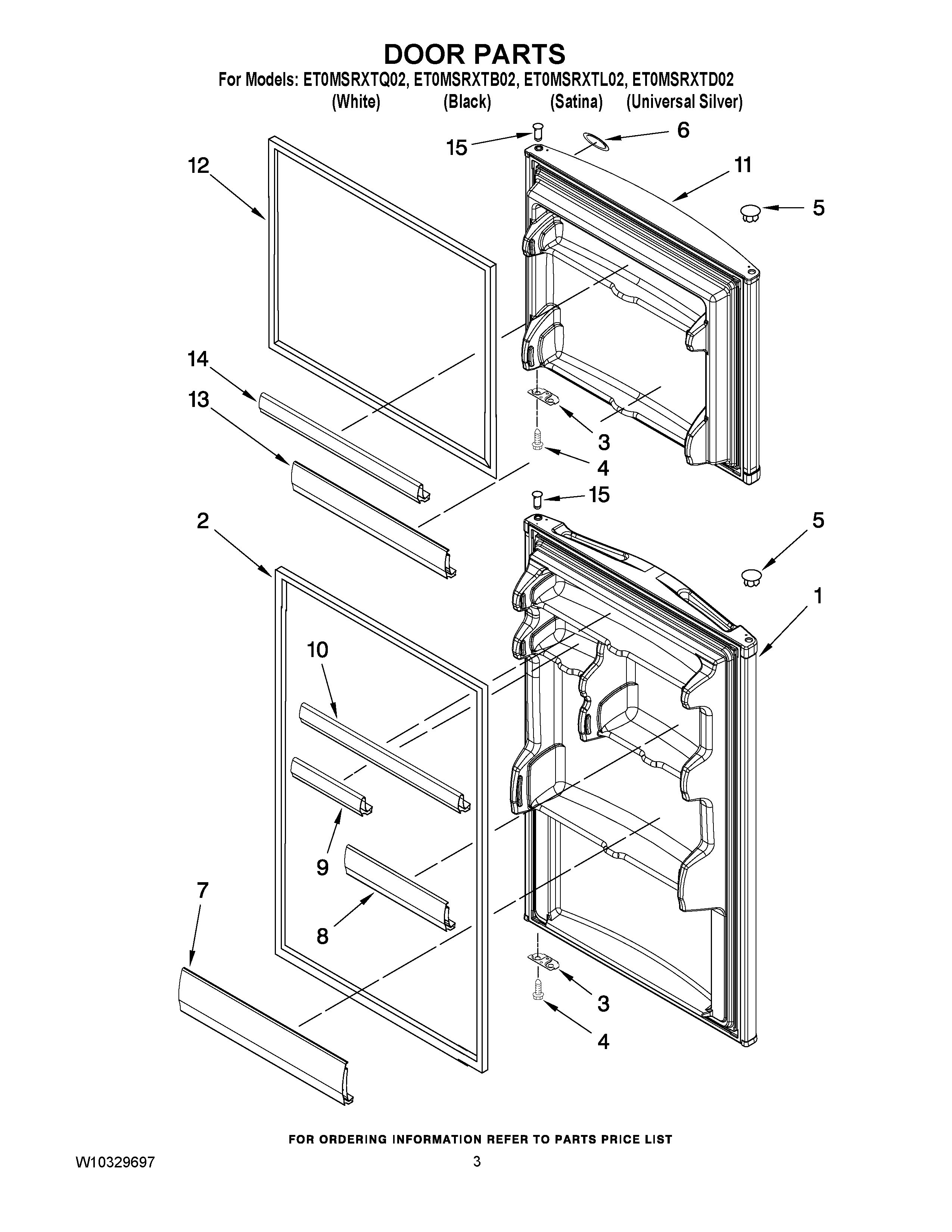

ET0MSRXTD02 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 2,3,4 5 & 15) (Black)
1	Refrigerator Door Also Includes 2) (Satina)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (UNIVERSAL SILVER)
2	Gasket, Door (RC) (Black)
2	GASKET, DOOR (RC) (MIST BEIGE)
3	Bracket, Door Stop
4	WP488921 Whirlpool Refrigerator Screw
5	Hole Plug (White)
5	2211250B Whirlpool Refrigerator Plug Button
6	WP2213265 Whirlpool Refrigerator Nameplate
7	TRIM, DOOR SHELF (BOTTOM)
8	WPW10304911 Whirlpool Door Trim
9	Trim, Door Shelf (Middle-Left)
10	Trim, Door Shelf (Top)
11	Freezer Door (Includes Illus. 3,4,5 12 & 15) (Black)
11	Freezer Door (Includes Illus. 3,4,5 12 & 15) (Satina)
11	FREEZER DOOR (INCLUDES ILLUS. 3,4,5 12 & 15) (UNIVERSAL SILVER)
11	FREEZER DOOR (INCLUDES ILLUS. 3,4,5 12 & 15) (WHITE)
12	GASKET, DOOR (FC) (MIST BEIGE)
12	WP2265773 Whirlpool Refrigerator FIP Gasket
13	TRIM, DOOR SHELF (BOTTOM)
14	2219150 Whirlpool Refrigerator Door Trim
15	Thimble
