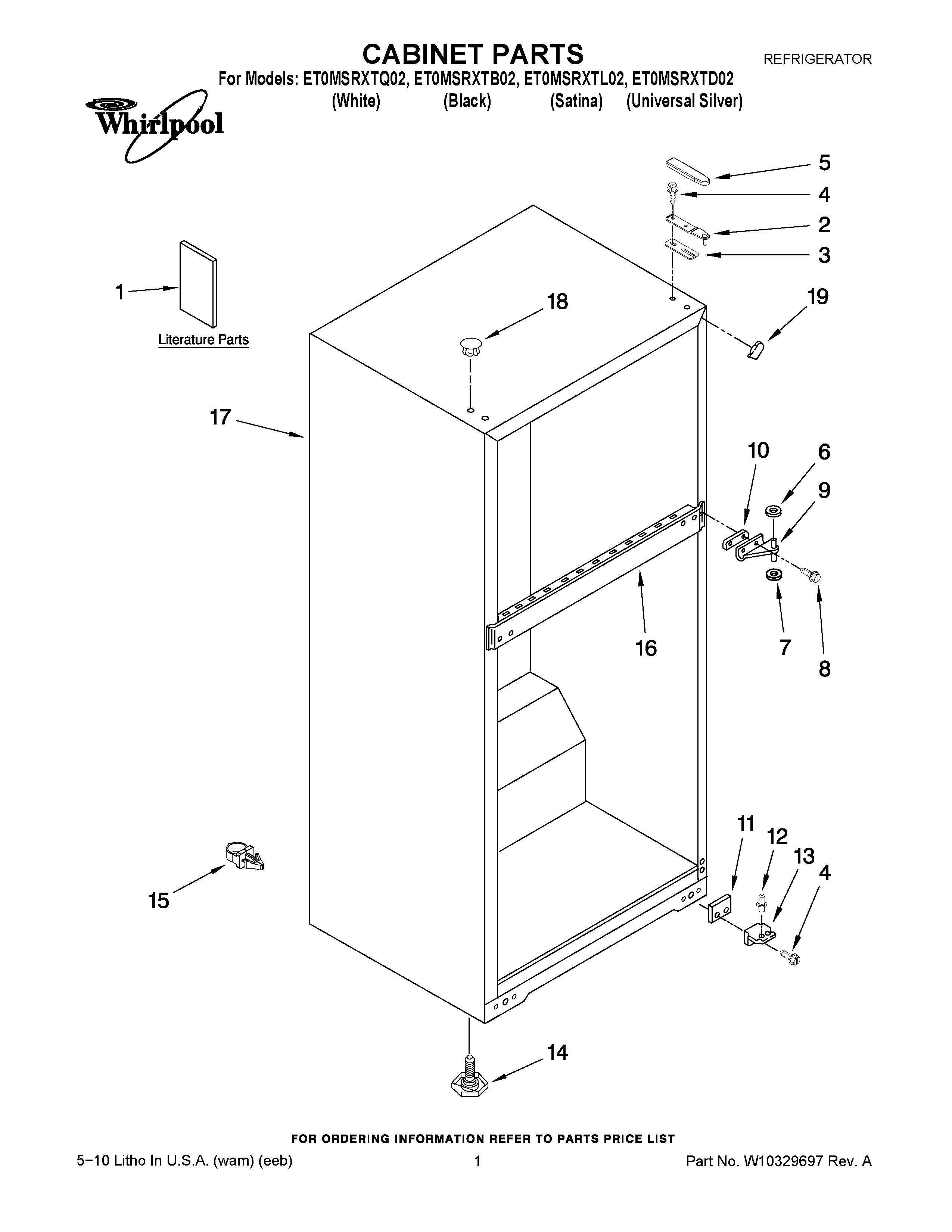

ET0MSRXTL02 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Energy Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1SERVICE & WIRING SHEET
2W10225158 Whirlpool Refrigerator Door Hinge
3SHIM, HINGE TOP (WHITE)
3SHIM, HINGE TOP (BLACK)
4WP489497 Whirlpool Screw
5COVER, HINGE (WHITE)
5COVER, HINGE (BLACK)
6WP487576 Whirlpool Washer
7WP487802 Whirlpool Refrigerator Washer
83400112 Whirlpool Refrigerator Screw
92211114 Whirlpool Refrigerator Door Hinge
102215385 Whirlpool Refrigerator Shim
102166043 Whirlpool Refrigerator Shim
112211299 Whirlpool Refrigerator Hinge Shim
12W10215067 Whirlpool Refrigerator Hinge Pin
13W10215063 Whirlpool Refrigerator Door Hinge
14W11117769 Whirlpool Refrigerator Leveler
152219077 Whirlpool Refrigerator Clip
17CABINET (NOT A SERVICEABLE PART)
18WP2151652 Whirlpool Refrigerator Button Plug
18WP2183998 Whirlpool Refrigerator Button Plug
192191595 Whirlpool Refrigerator Filler
192219294 Whirlpool Filler Assembly
