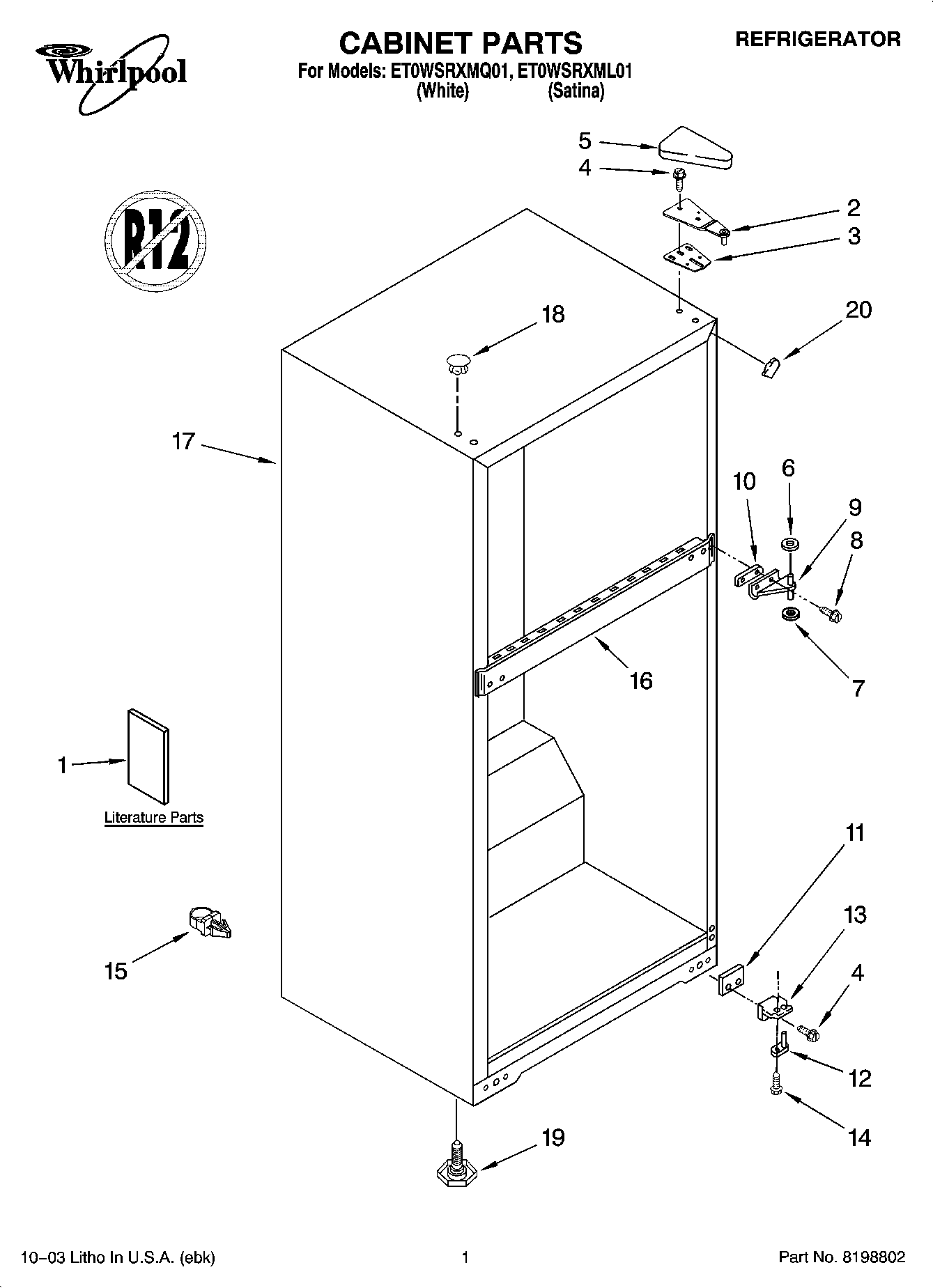

ET0WSRXML01 01 – CABINET PARTS

ET0WSRXML01 01 – CABINET PARTS

Written by

in

ET0WSRXML01 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Energy Guide)
1Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1Literature Parts (Service & Wiring Sheet)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Use & Care Guide)
22211109 Whirlpool Refrigerator Door Hinge
3W11169703 Whirlpool Refrigerator Shim
4WP489497 Whirlpool Screw
51119787 Whirlpool Refrigerator Hinge Cover
5Hinge Cover (Black)
6WP487576 Whirlpool Washer
7WP487802 Whirlpool Refrigerator Washer
83400112 Whirlpool Refrigerator Screw
92211114 Whirlpool Refrigerator Door Hinge
102166043 Whirlpool Refrigerator Shim
112211299 Whirlpool Refrigerator Hinge Shim
122211158 Whirlpool Refrigerator Door Hinge
13W10215063 Whirlpool Refrigerator Door Hinge
14WP3428970 Whirlpool Refrigerator Screw
152219077 Whirlpool Refrigerator Clip
16Rail Center (Not Serviced)
17Cabinet (Not Serviced)
18WP2183998 Whirlpool Refrigerator Button Plug
18WP2151652 Whirlpool Refrigerator Button Plug
19W11117769 Whirlpool Refrigerator Leveler
202191595 Whirlpool Refrigerator Filler
202219294 Whirlpool Filler Assembly
