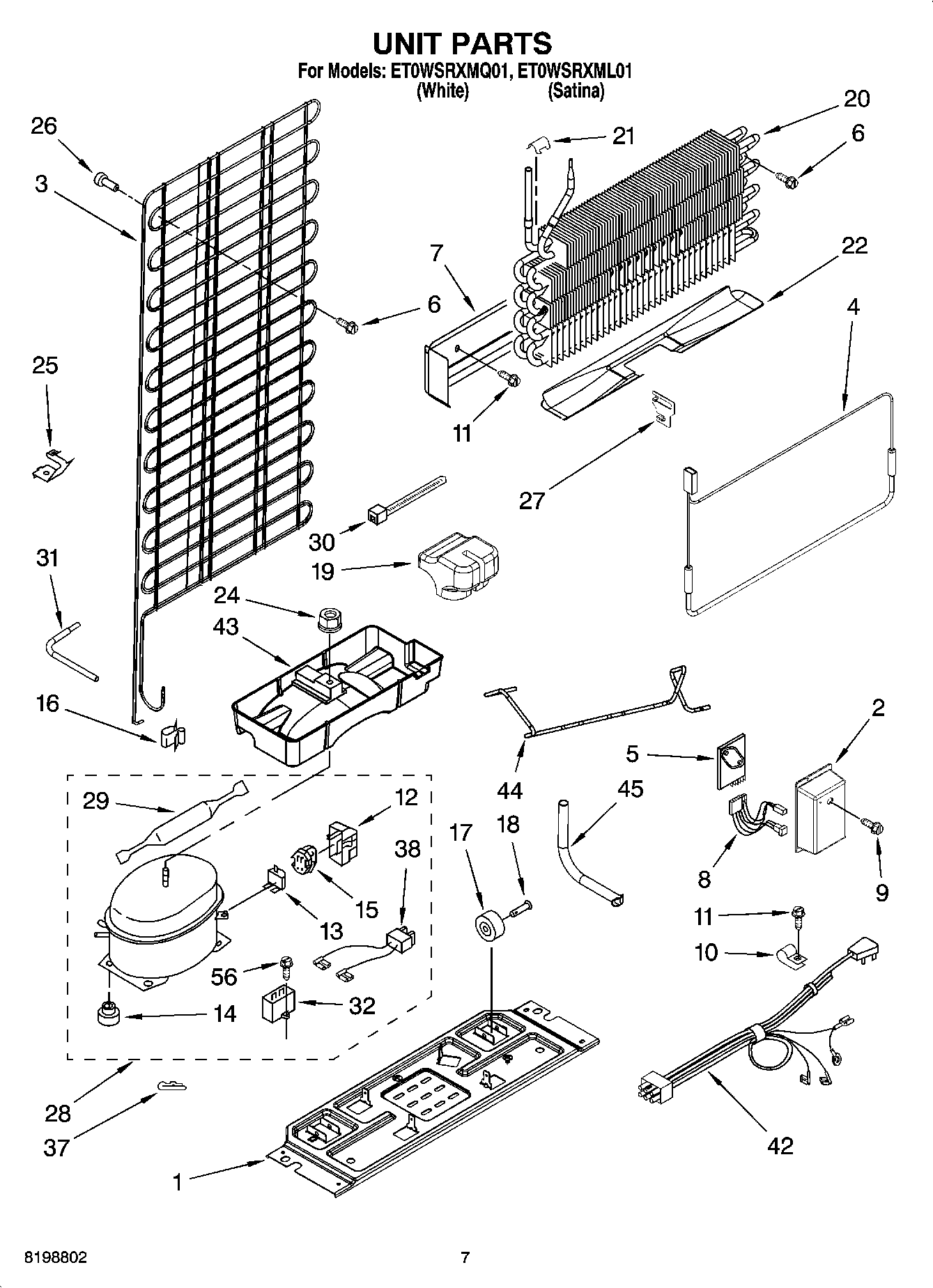

ET0WSRXML01 04 – UNIT PARTS

Products

Position	Product
1	2211011 Whirlpool Support
2	Cover, ADC
3	Condenser
4	WP2210895 Whirlpool Refrigerator Heater
5	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
6	Screw
7	Heat Shield
8	Wire Assembly, ADC
9	WP487353 Whirlpool Refrigerator Screw
10	WP308605 Whirlpool Refrigerator Clamp
11	WP489442 Whirlpool Refrigerator Screw
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
13	WP4387938 Whirlpool Refrigerator Overload
14	WP2163786 Whirlpool Refrigerator Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2262181 Whirlpool Refrigerator Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Wedge, Evaporator
20	Evaporator Assy.
21	9791833 Whirlpool Refrigerator Clip
22	2265095 Whirlpool Refrigerator Drip Pan
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258451 Whirlpool Spacer
27	2211075 Whirlpool Bracket
28	W10823815 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	Tube, Process
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
37	Clip, Compressor
38	WP2172890 Whirlpool Refrigerator Wire
42	Wire Assy. Unit
43	Evaporator Tray
44	Tube, Discharge
45	Tube, Process
56	SCREW
56	Following Parts Not Illustrated and Optional Parts Not Included
56	WP978025 Whirlpool Refrigerator Valve
56	876764 Whirlpool Refrigerator Primary Valve
56	978026 Whirlpool Refrigerator Primary Valve
56	978027 Whirlpool Refrigerator Primary Valve
56	978030 Whirlpool Refrigerator Valve
56	VALVE, ACCESS (1/2“)
56	VALVE, ACCESS (5/8“)
56	REFRIGERANT CHARGE 3.00 Ozs. (R134A)
