ET0WSRXMQ02 01 – CABINET PARTS

ET0WSRXMQ02 01 – CABINET PARTS

Written by

in

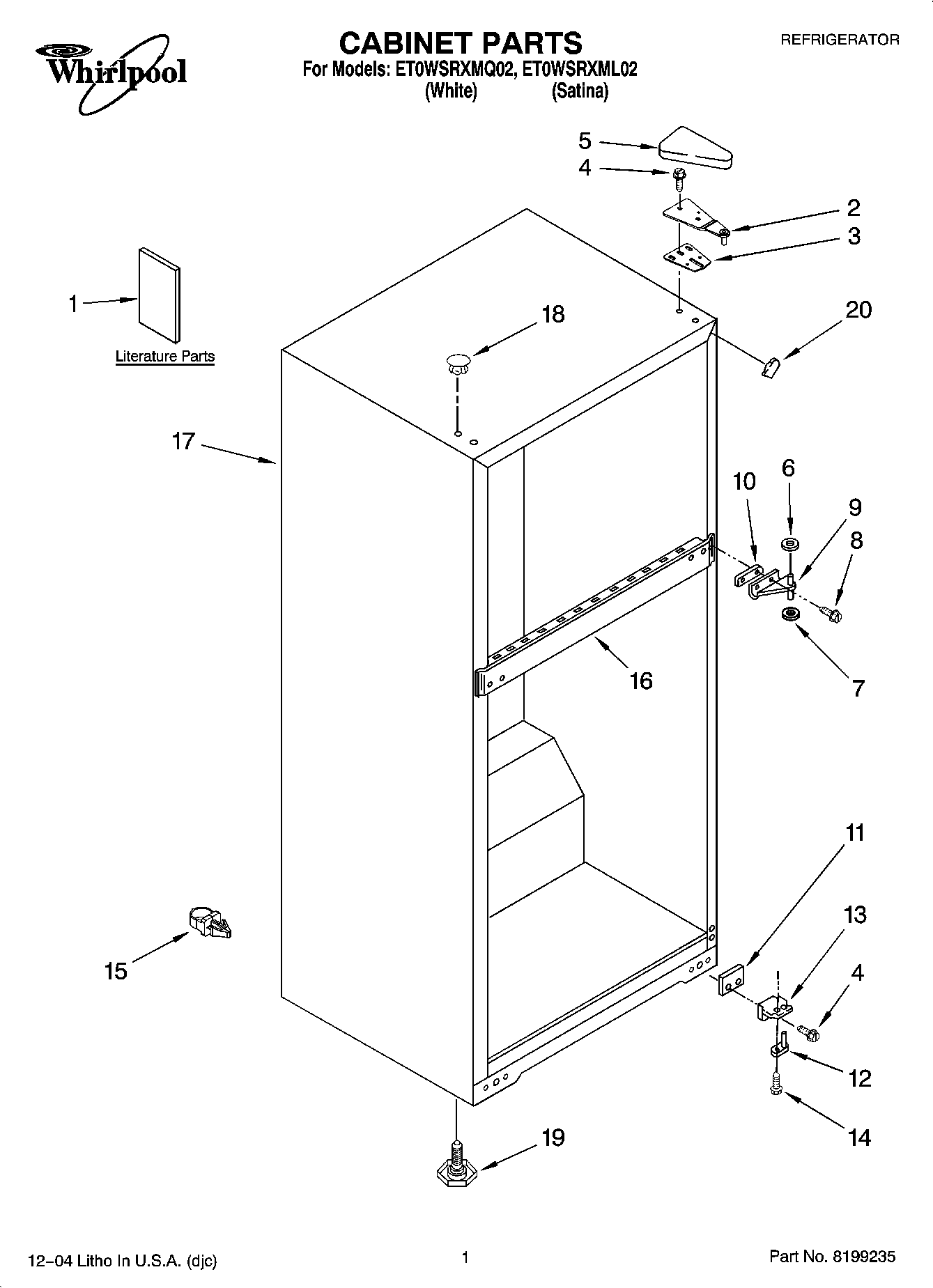

ET0WSRXMQ02 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Service & Wiring Sheet
1Energy Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide
22211109 Whirlpool Refrigerator Door Hinge
3Shim, Hinge Top (Black)
3W11169703 Whirlpool Refrigerator Shim
4WP489497 Whirlpool Screw
51119787 Whirlpool Refrigerator Hinge Cover
6WP487576 Whirlpool Washer
7WP487802 Whirlpool Refrigerator Washer
83400112 Whirlpool Refrigerator Screw
92211114 Whirlpool Refrigerator Door Hinge
102166043 Whirlpool Refrigerator Shim
102215385 Whirlpool Refrigerator Shim
112211299 Whirlpool Refrigerator Hinge Shim
122211158 Whirlpool Refrigerator Door Hinge
13W10215063 Whirlpool Refrigerator Door Hinge
14WP3428970 Whirlpool Refrigerator Screw
152219077 Whirlpool Refrigerator Clip
16Rail Center (Not Serviced)
17Cabinet (Not Serviced)
18WP2183998 Whirlpool Refrigerator Button Plug
18WP2151652 Whirlpool Refrigerator Button Plug
19W11117769 Whirlpool Refrigerator Leveler
202219294 Whirlpool Filler Assembly
202191595 Whirlpool Refrigerator Filler
