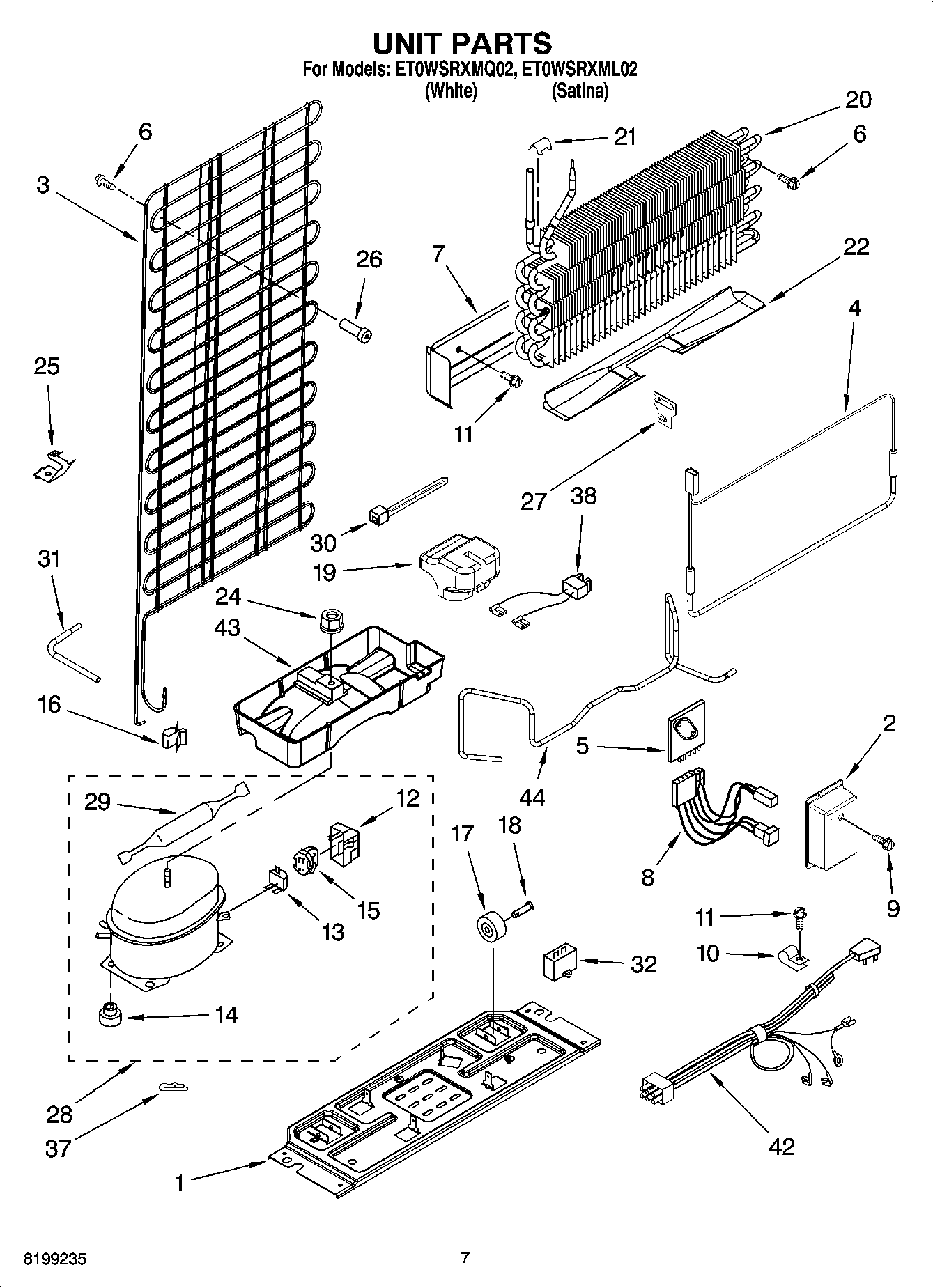

ET0WSRXMQ02 04 – UNIT PARTS

ET0WSRXMQ02 04 – UNIT PARTS

Written by

in

ET0WSRXMQ02 04 – UNIT PARTS

Products

PositionProduct
12211011 Whirlpool Support
2Cover, ADC
3Condenser
4WP2210895 Whirlpool Refrigerator Heater
54388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
6Screw
7Heat Shield
8Wire Assembly, ADC
9WP487353 Whirlpool Refrigerator Screw
10WP308605 Whirlpool Refrigerator Clamp
11WP489442 Whirlpool Refrigerator Screw
12WP2162358 Whirlpool Refrigerator Terminal Cover
1361004883 Whirlpool Refrigerator Overload
14WP2163786 Whirlpool Refrigerator Grommet
15W10920279 Whirlpool Refrigerator Start Relay
15WP2262181 Whirlpool Refrigerator Start Relay
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Wedge, Evaporator
20Evaporator Assy.
219791833 Whirlpool Refrigerator Clip
222265095 Whirlpool Refrigerator Drip Pan
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
262258451 Whirlpool Spacer
272211075 Whirlpool Bracket
28Compressor (Includes Illus. 12,13,14 15 & 29)
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
31Tube, Process
32WPW10662129 Whirlpool Refrigerator Run Capacitor
37Clip, Compressor
38WP2172890 Whirlpool Refrigerator Wire
42Wire Assy. Unit
43Evaporator Tray
44Tube, Discharge
44Following Parts Not Illustrated and Optional Parts Not Included
44978030 Whirlpool Refrigerator Valve
44876764 Whirlpool Refrigerator Primary Valve
44978026 Whirlpool Refrigerator Primary Valve
44978027 Whirlpool Refrigerator Primary Valve
44WP978025 Whirlpool Refrigerator Valve
44VALVE, ACCESS (1/2“)
44VALVE, ACCESS (5/8“)
44REFRIGERANT CHARGE 3.00 Ozs. (R134A)
