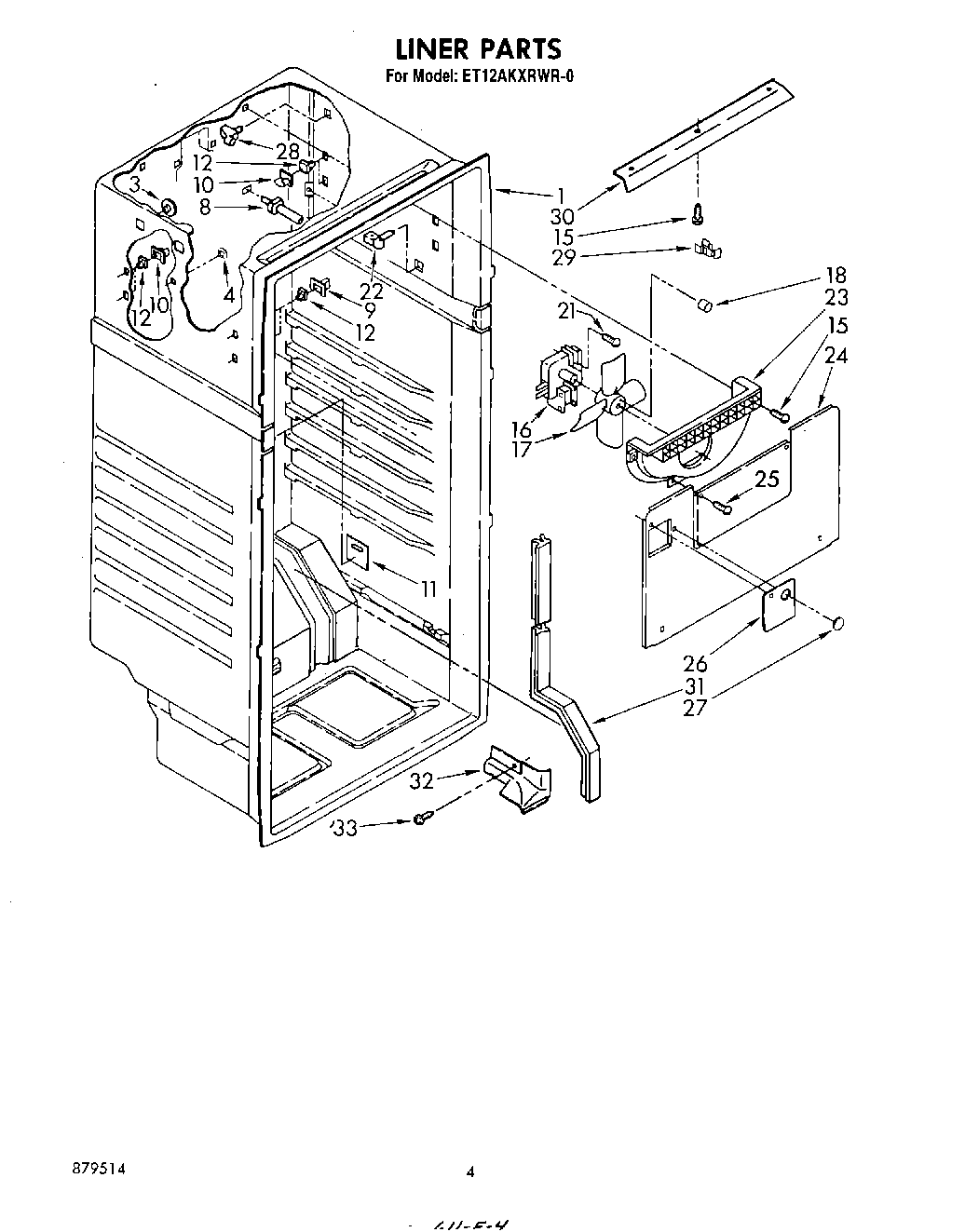

ET12AKXRWR0 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	Hole Plug (2)
4	WP941839 Whirlpool Refrigerator Button Plug
8	Stud, Evaporator
9	Stud, Front R.S.
10	819091 Whirlpool Refrigerator Shelf Stud
11	Shield, Wiring
12	Stud, Support
15	W11624204 Whirlpool Screw
16	Motor, Fan
17	Blade, Fan
18	Ring, Compression
21	Screw, 8 x 1-1/4 (2)
22	Retainer, Stud (4)
23	Scroll, Fan
24	Evaporator Cover
25	WP488729 Whirlpool Refrigerator Door Screw
26	WP2217784 Whirlpool Refrigerator Cover
27	Hole Plug
28	4388405 Whirlpool Refrigerator Shelf Stud
29	Clip, Ground
30	Baffle, Liner Top
31	Cover Tube, Rear
32	Cover Tube, Bottom
33	W11693756 Whirlpool Screw Assembly
