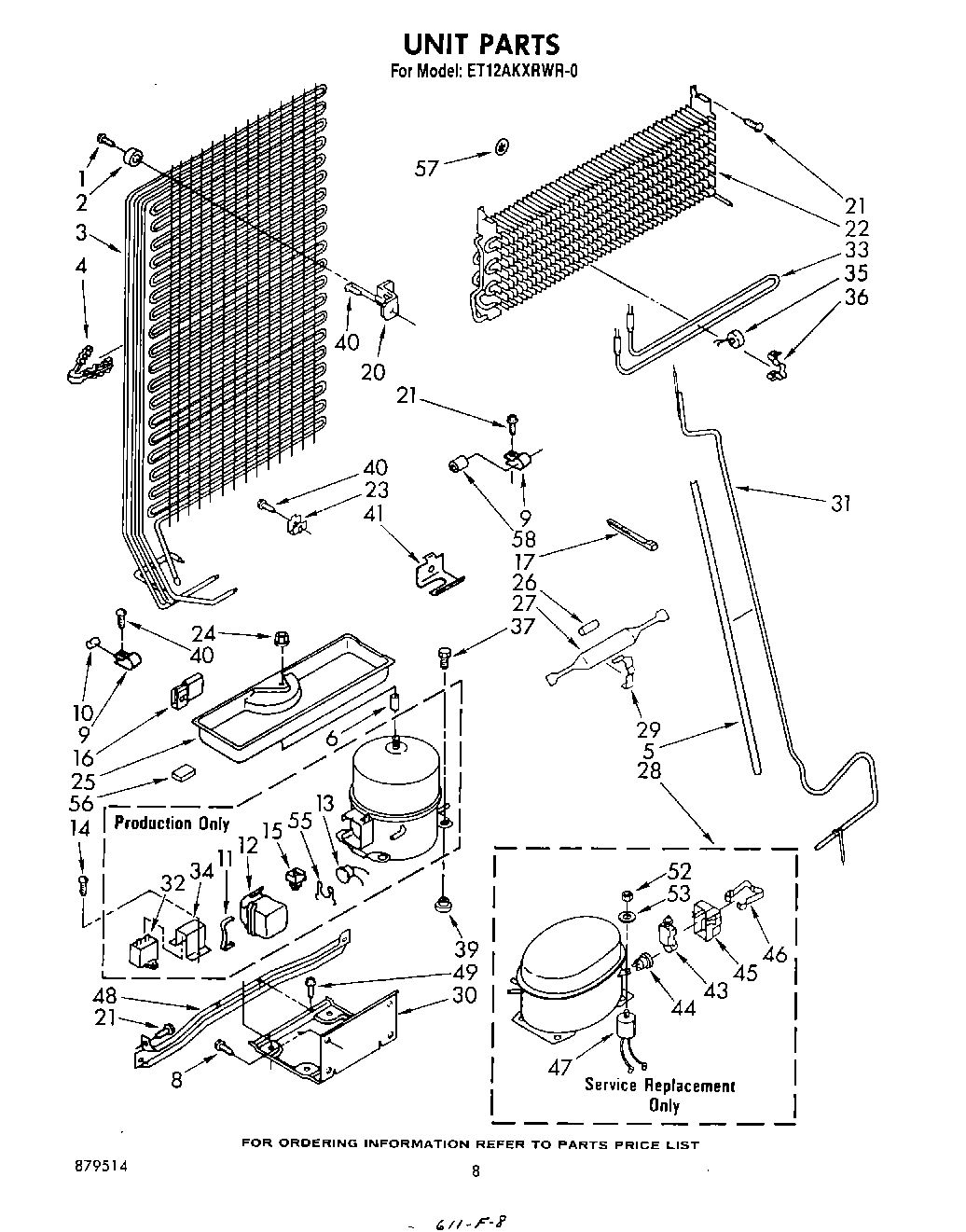

ET12AKXRWR0 07 – UNIT

Written by

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
8	WP250830 Whirlpool Refrigerator Screw
9	Clamp Tube
10	Dampener
11	case spring
12	Case, Relay
13	Overload
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	Strap
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Evaporator
23	Clip, Condenser Mounting (2)
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Heater, Defrost
34	Cover, Capacitor
35	Bi-Metal, Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
41	Bracket, Wire Receptacles
43	Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
52	Nut
53	Washer
55	Spring, Overload
56	Pad, Sound
57	Retainer, Evaporator
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	WP978025 Whirlpool Refrigerator Valve
58	WP2158826 Whirlpool Refrigerator Dampener
58	VALVE, ACCESS (1/2“)
58	VALVE, ACCESS (5/8“)
