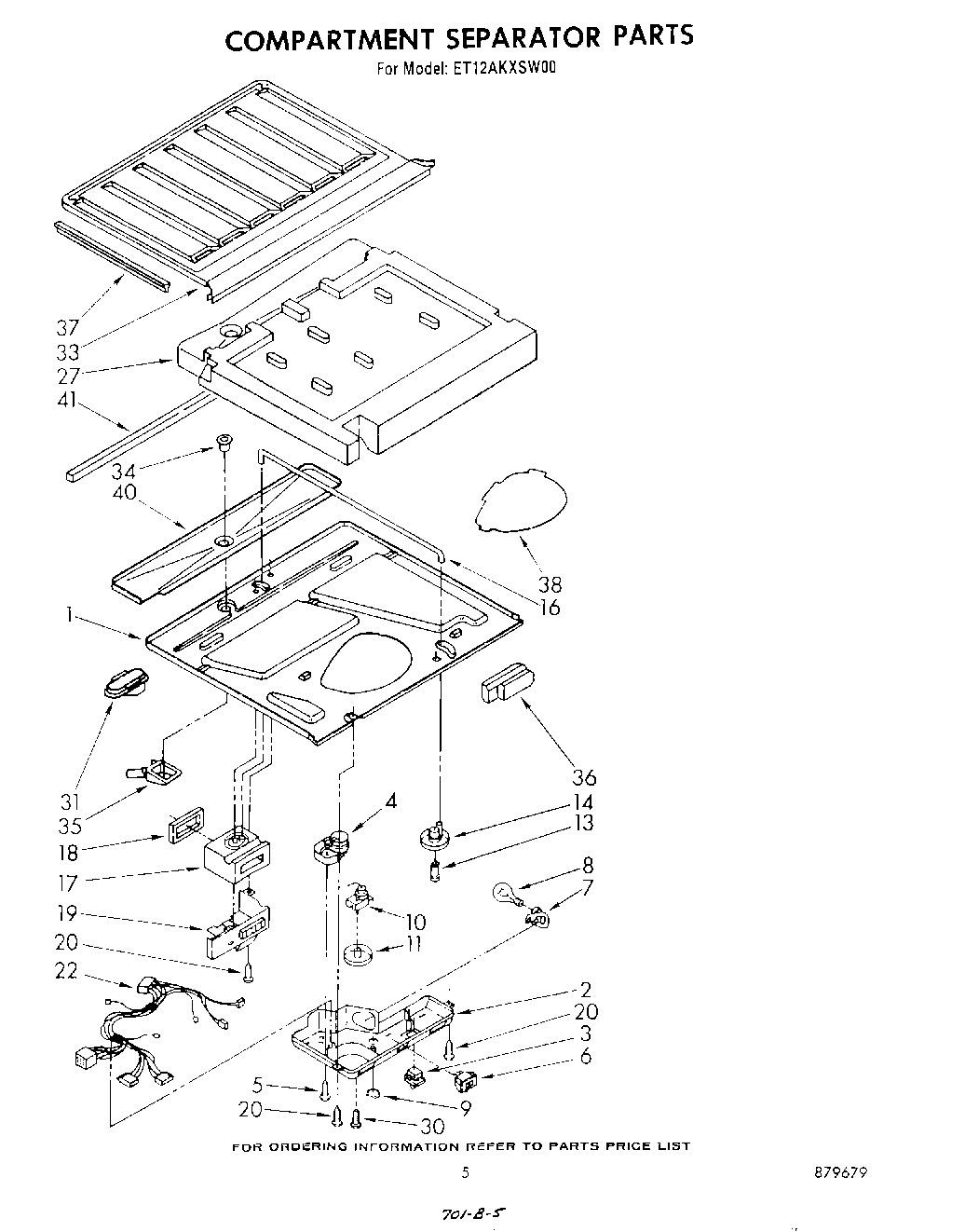

ET12AKXSW00 04 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	W11384469 Whirlpool Door Switch
4	Defrost Timer
5	WP487353 Whirlpool Refrigerator Screw
6	WP938213 Whirlpool Refrigerator Power Switch
7	4387478 Whirlpool Refrigerator Light Socket
8	W11679940 Whirlpool Refrigerator Light Bulb Assembly
9	940014 Whirlpool Refrigerator Primary Button Plug
10	WP819470 Whirlpool Refrigerator Thermostat
11	Knob, Thermostat
13	Retainer, Knob
14	Knob, Air Control
16	Rod, Connecting
17	Air Diffuser
18	Gasket, Air Diffuser
19	Cover, Air Diffuser
20	W11624204 Whirlpool Screw
22	Wiring, Assembly Control Box
27	Insulation, Compartment
30	Screw, 8 x 3/8
31	Hood, Air Return
33	Separator, Compartment (Top)
34	Drain Insert
35	Cup, Drain
36	Rear Corner Block (2)
37	Gasket
38	Heat Shield
40	Drain Pan
41	Gasket, Drain Pan
