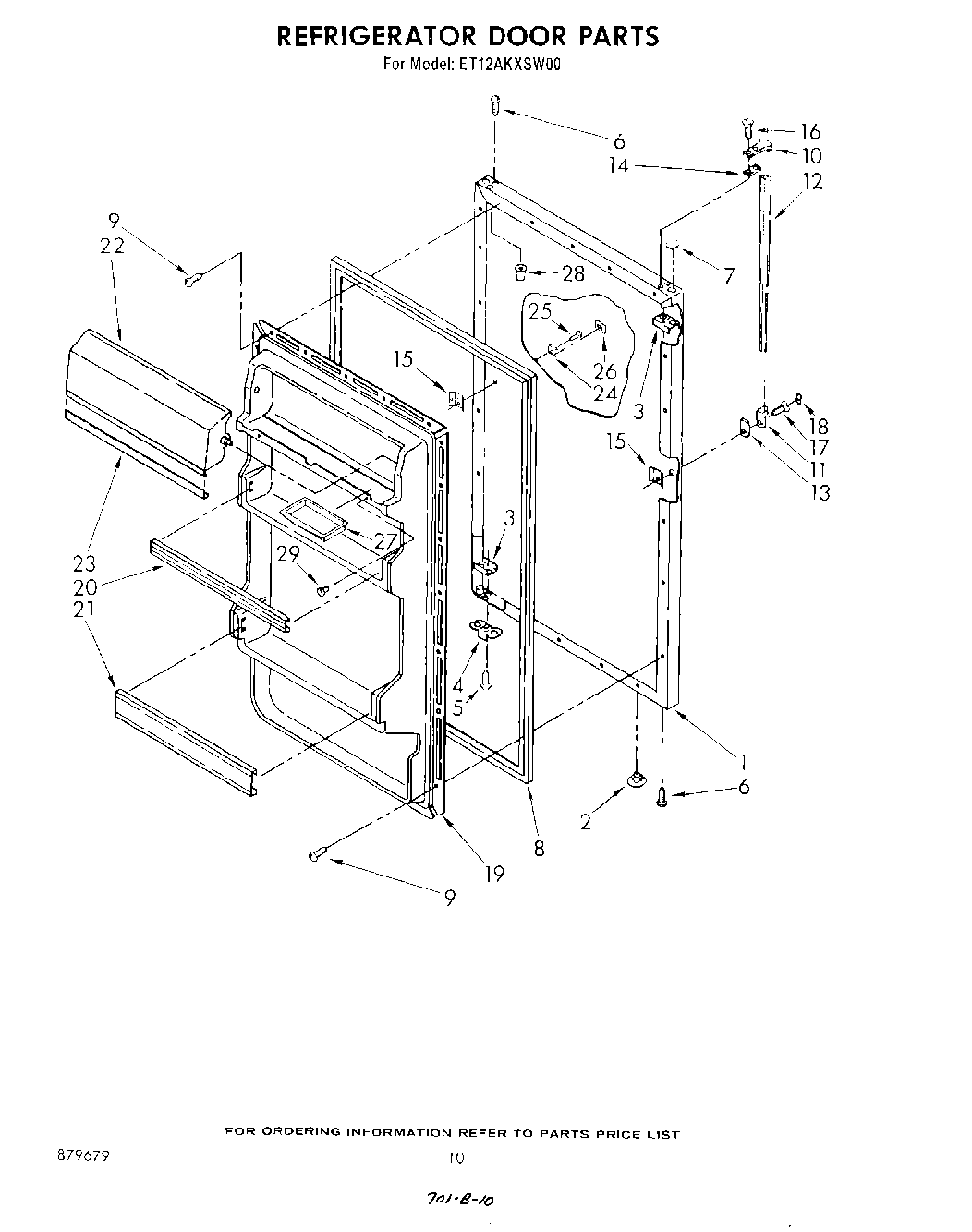

ET12AKXSW00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET12AKXSW00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET12AKXSW00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
285006 Whirlpool Spray
WPL LIT879679
350942 Whirlpool Spray Paint
WPL LIT1108526
WPL LIT1108528
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest
WPL LIT1116653
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
Leveler (Thinner)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Almond)
1Panel, Refrigerator Door (Platinum) (Use 978941 Fiberglass Insulation)
1Panel, Refrigerator Door (Toast)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Platinum)
7Hole Plug (Toast)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic
9SCREW
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel (Refrigerator)
20Trim, Door (Top)
21Trim, Door (Bottom)
22Compartment, Utility Door
23Trim, Compartment Door
24Clip, Medallion
26Medallion
28Cap, Hinge Sleeve (2)
29511873 Whirlpool Refrigerator Paint
29212643 Whirlpool Refrigerator Permagum Sealer
29WPL 72112
2972113 Whirlpool Touch-Up Paint
29Platinum (Uncut)
29Enamal, Toast (1 Qt. Uncut)
29Golden Harvest (Uncut)
2972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29Almond (Uncut)
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
29606755 Whirlpool Refrigerator Bag
29833938 Whirlpool Refrigerator Terminal
29WP542638 Whirlpool Refrigerator Grease
29WPL 876029
29WPL 799833
29Silicone (Spray)
29WPL 799832
29Enamel, Black (1 Qt. Uncut)
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29TAPE, VINYL (3/4 X 108“)
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29876370 Whirlpool Refrigerator Insulation
29Bunper (2)
2972032 Whirlpool Touch Up Paint Black
