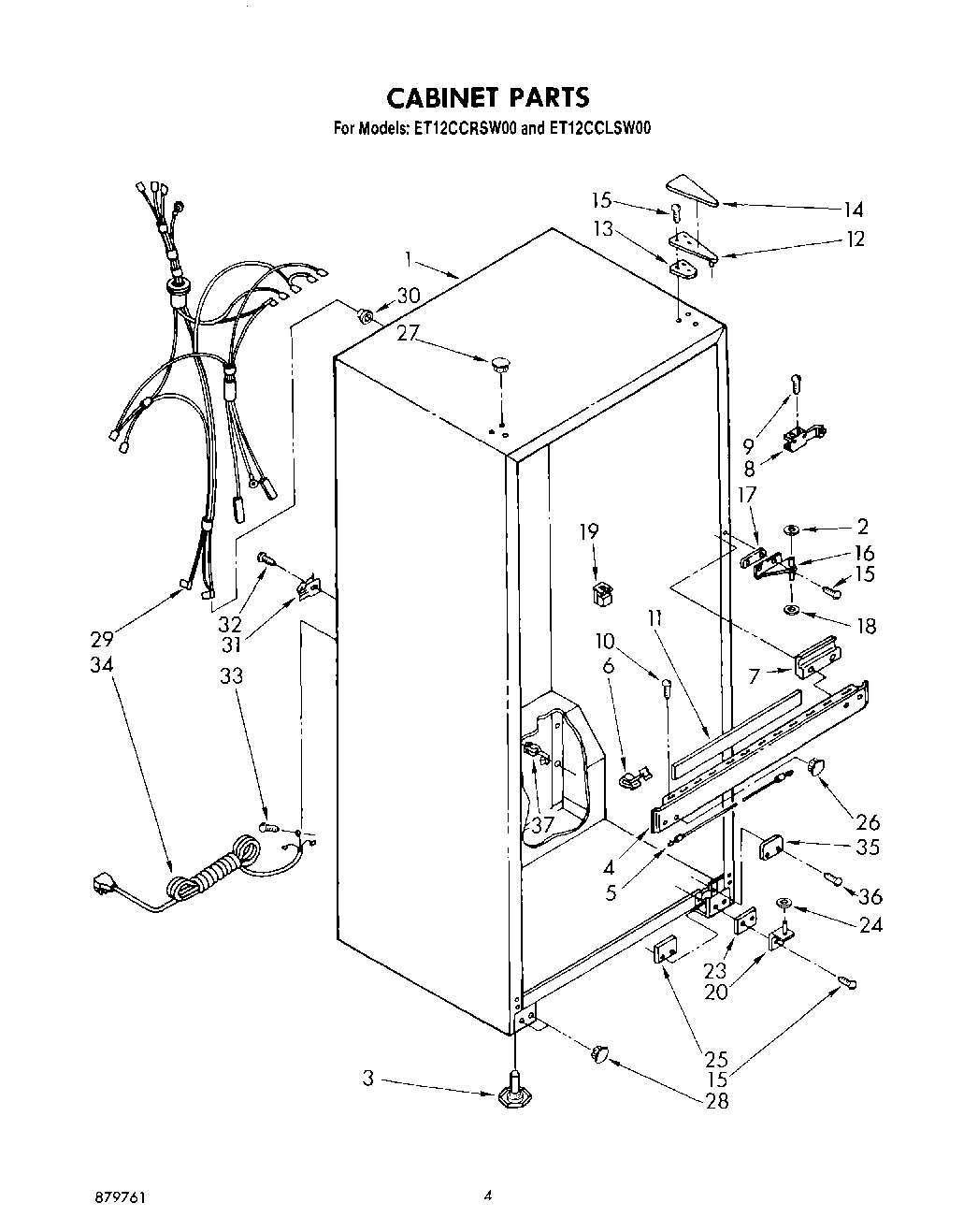

ET12CCLSN00 03 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP487802 Whirlpool Refrigerator Washer
3W11117769 Whirlpool Refrigerator Leveler
4Center, Rail (Almond)
4Center Rail (Golden Harvest)
4Center, Rail (Platinum)
4Center, Rail (Toast)
4Center, Rail (White)
5Heater, Mullion
6Breaker, Trim Clip
7Center, Rail Shim (2)
8Bracket, Center Rail (2)
10WP488729 Whirlpool Refrigerator Door Screw
11Seal, Strip
12Shim, Hinge Top
13Shim, Hinge
14Hinge Cover (Toast)
141119787 Whirlpool Refrigerator Hinge Cover
14Hinge Cover (Golden Harvest)
15Screw (Repair)
15WP999367 Whirlpool Refrigerator Screw
16Hinge, Center
17Shim, Hinge Center
18WP488296 Whirlpool Washer Refrigerator
19Spacer (2)
20Hinge, Bottom R.H.
20Hinge, Bottom L.H.
23Shim, Bottom Hinge
24WP487576 Whirlpool Washer
25Tap Plate, Bottom
26Hole Plug (White)
26WPL 1119708
26WPL 1119710
26WPL 1119711
26Hole Plug (Almond)
27Hole Plug (3) (Toast)
27Hole Plug (2) (White)
27Hole Plug (3) (Platinum)
27Hole Plug (2) (Almond)
27Hole Plug (2) (Golden Harvest)
28WPL 941416
28Hole Plug (2) (Platinum)
28Hole, Plug (2) (Almond)
28Hole Plug (2) (Golden Harvest)
28Hole Plug (2) (Toast)
29Cabinet, Wiring Assembly
30Grommet, Wiring
31Clamp
32W11624204 Whirlpool Screw
33Screw, 8-32 x 3/8
34Cord, Service
35Tube, Rail Cover (White)
35Tube, Rail Cover (Golden Harvest)
35Tube, Rail Cover (Toast)
35Tube, Rail Cover (Platinum)
35Tube, Rail Cover (Almond)
36Screw
37Bushing, Strain Relief
