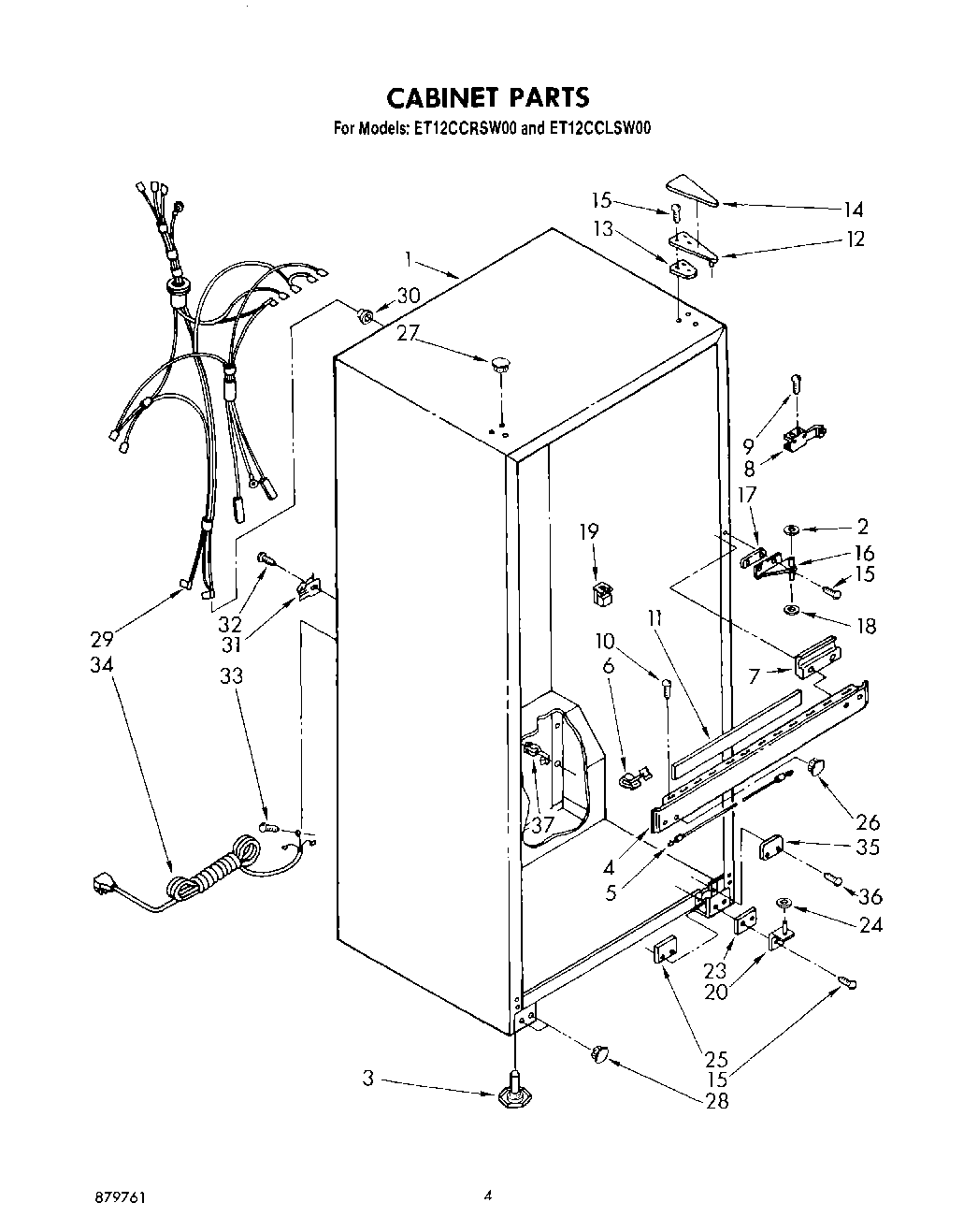

ET12CCLSW00 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP487802 Whirlpool Refrigerator Washer
3	W11117769 Whirlpool Refrigerator Leveler
4	Center, Rail (Almond)
4	Center Rail (Golden Harvest)
4	Center, Rail (Platinum)
4	Center, Rail (Toast)
4	Center, Rail (White)
5	Heater, Mullion
6	Breaker, Trim Clip
7	Center, Rail Shim (2)
8	Bracket, Center Rail (2)
10	WP488729 Whirlpool Refrigerator Door Screw
11	Seal, Strip
12	Shim, Hinge Top
13	Shim, Hinge
14	Hinge Cover (Toast)
14	1119787 Whirlpool Refrigerator Hinge Cover
14	Hinge Cover (Golden Harvest)
15	Screw (Repair)
15	WP999367 Whirlpool Refrigerator Screw
16	Hinge, Center
17	Shim, Hinge Center
18	WP488296 Whirlpool Washer Refrigerator
19	Spacer (2)
20	Hinge, Bottom R.H.
20	Hinge, Bottom L.H.
23	Shim, Bottom Hinge
24	WP487576 Whirlpool Washer
25	Tap Plate, Bottom
26	Hole Plug (White)
26	WPL 1119708
26	WPL 1119710
26	WPL 1119711
26	Hole Plug (Almond)
27	Hole Plug (3) (Toast)
27	Hole Plug (2) (White)
27	Hole Plug (3) (Platinum)
27	Hole Plug (2) (Almond)
27	Hole Plug (2) (Golden Harvest)
28	WPL 941416
28	Hole Plug (2) (Platinum)
28	Hole, Plug (2) (Almond)
28	Hole Plug (2) (Golden Harvest)
28	Hole Plug (2) (Toast)
29	Cabinet, Wiring Assembly
30	Grommet, Wiring
31	Clamp
32	W11624204 Whirlpool Screw
33	Screw, 8-32 x 3/8
34	Cord, Service
35	Tube, Rail Cover (White)
35	Tube, Rail Cover (Golden Harvest)
35	Tube, Rail Cover (Toast)
35	Tube, Rail Cover (Platinum)
35	Tube, Rail Cover (Almond)
36	Screw
37	Bushing, Strain Relief
