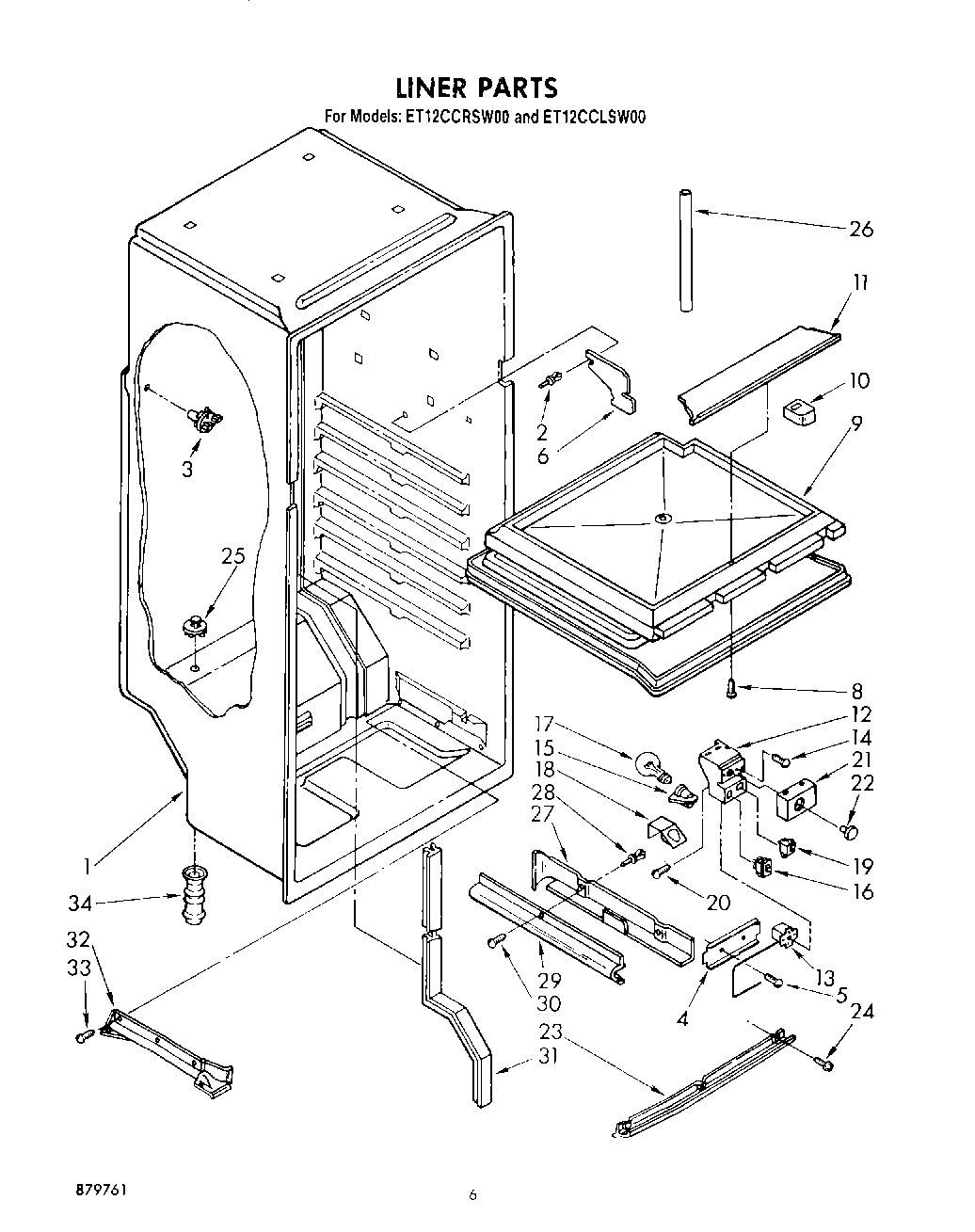

ET12CCLSW00 04 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Screw Anchor (4)
4	Clip, Thermostat
5	W11693756 Whirlpool Screw Assembly
6	Electric Shield
8	WP488163 Whirlpool Refrigerator Screw
9	Insulation, Compartment Separator Assembly
10	Insulation, Crossover Tube
11	Breaker Trim, Mullion
12	Control Box
13	Thermostat
14	WP489128 Whirlpool Refrigerator Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	WP938213 Whirlpool Refrigerator Power Switch
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	Light Shield
19	W11384469 Whirlpool Door Switch
20	WP489069 Whirlpool Compactor Screw
21	Cover, Control Box
22	Knob, Control
23	Drain Trough
24	WP488729 Whirlpool Refrigerator Door Screw
25	Drain, Ferrule Cap
26	Cover, Connecting Lines
27	Wire Cover (Rear)
28	Rivet, Plastic (2)
29	Wire Cover (Front)
30	Screw, 8-15 x 1/2 (4)
31	Cover, Tube (Rear)
32	Cover Tube, Bottom
34	Fitting, Drain
