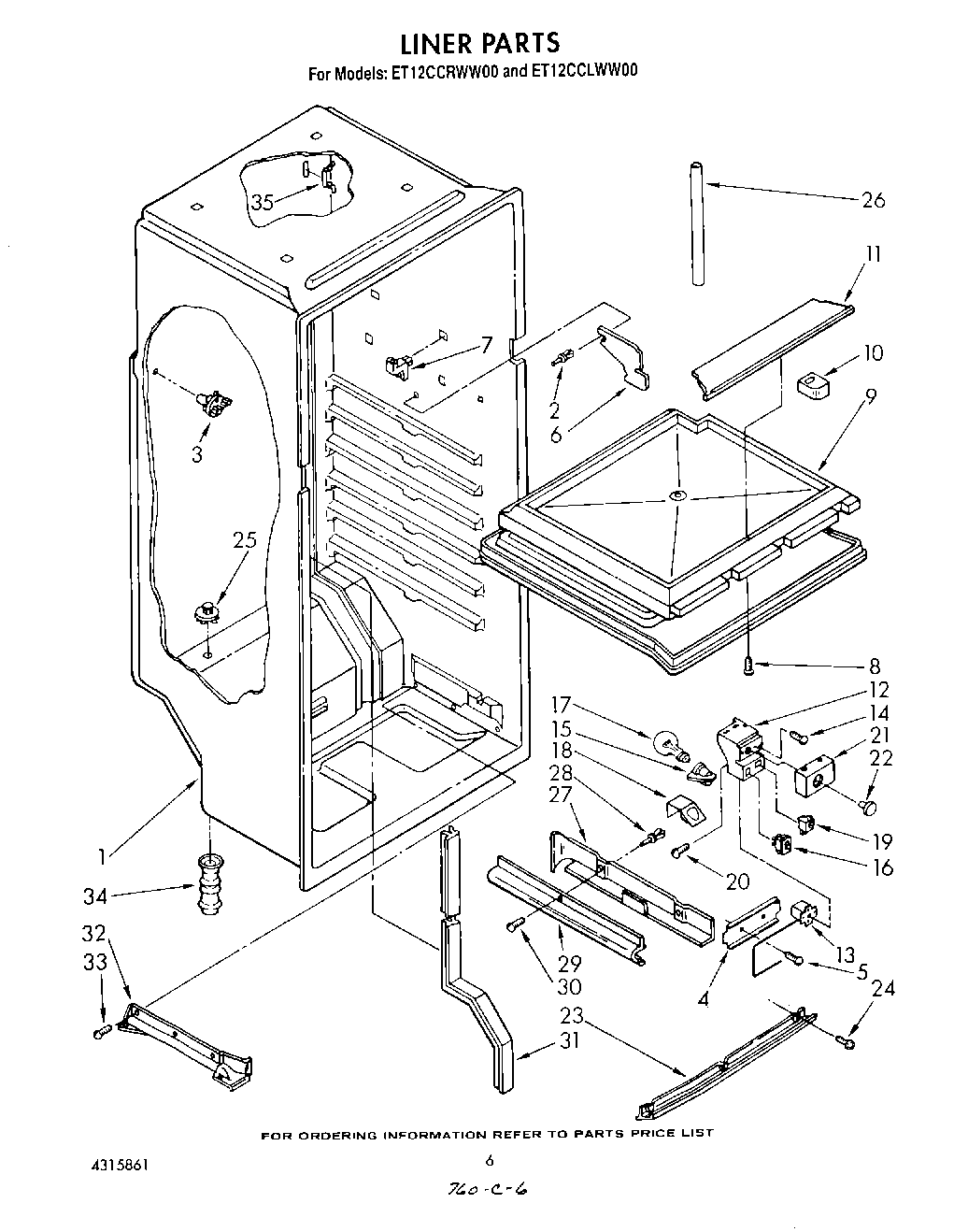

ET12CCLWN00 04 – LINER , LIT/OPTIONAL

ET12CCLWN00 04 – LINER , LIT/OPTIONAL

Written by

in

ET12CCLWN00 04 – LINER , LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Torx Key
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
WPL LIT1124598
WPL LIT1124599
Leveler (Thinner)
350956 Whirlpool Spray Assembly
WPL LIT4315861
WPL LIT1127523
1Liner (Not A Serviceable Part)
2939962 Whirlpool Refrigerator Rivet
3Screw Anchor (4)
4Clip, Thermostat
5W11693756 Whirlpool Screw Assembly
6Electric Shield
74388405 Whirlpool Refrigerator Shelf Stud
8WP488163 Whirlpool Refrigerator Screw
9Insulation, Compartment Separator Assembly
10Insulation, Crossover Tube
11Breaker Trim, Mullion
12Control Box
13Thermostat
14WP489128 Whirlpool Refrigerator Screw
154387478 Whirlpool Refrigerator Light Socket
16WP938213 Whirlpool Refrigerator Power Switch
17W11679940 Whirlpool Refrigerator Light Bulb Assembly
18Light Shield
19W11384469 Whirlpool Door Switch
20WP489069 Whirlpool Compactor Screw
21Cover, Control Box
22Knob, Control
23Drain Trough
24WP488729 Whirlpool Refrigerator Door Screw
25Drain, Ferrule Cap
26Cover, Connecting Lines
27Wire Cover (Rear)
28Rivet, Plastic (2)
29Wire Cover (Front)
30Screw, 8-15 x 1/2 (4)
31Cover, Tube (Rear)
32Cover Tube, Bottom
34Fitting, Drain
35212643 Whirlpool Refrigerator Permagum Sealer
35Almond (Uncut)
35511873 Whirlpool Refrigerator Paint
35606755 Whirlpool Refrigerator Bag
35WP72107 Whirlpool Touchup
35799344 Whirlpool Refrigerator Paint
35833938 Whirlpool Refrigerator Terminal
3572032 Whirlpool Touch Up Paint Black
35876370 Whirlpool Refrigerator Insulation
35WPL 876029
35WPL 799832
35Enamel, Black (1 Qt. Uncut)
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
35WP542638 Whirlpool Refrigerator Grease
35TAPE, VINYL (3/4 X 108“)
35Kit, Evaporator Repair (Aluminum Epoxy)
35Speed Clip, Light Lens (3)
35WP505587 Whirlpool Refrigerator Sealer
35WP503695 Whirlpool Refrigerator Sealer
3572017 Whirlpool Appliance Touch-Up Paint White
