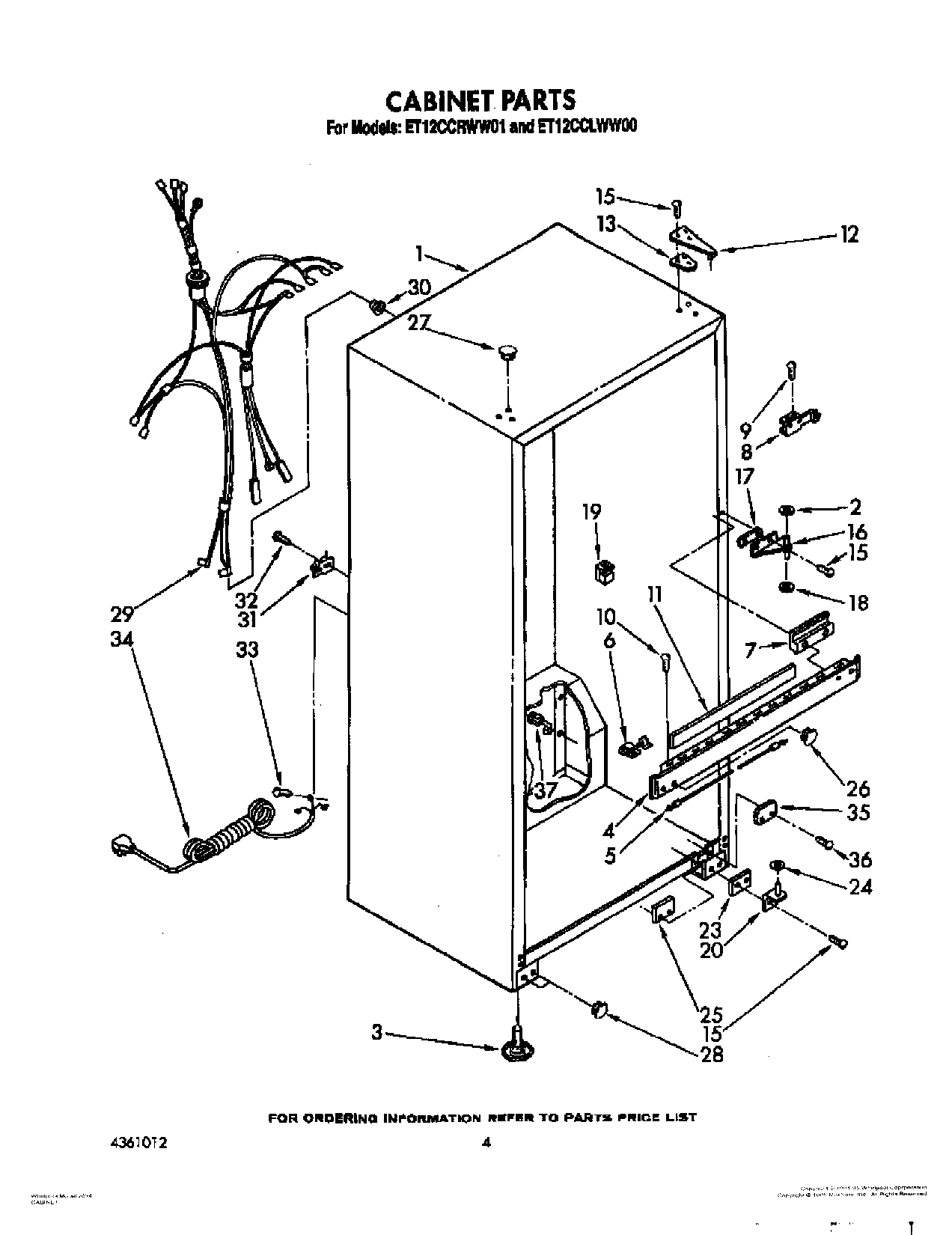

ET12CCLWW01 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP487802 Whirlpool Refrigerator Washer
3	W11117769 Whirlpool Refrigerator Leveler
4	Center, Rail (Almond)
4	Center, Rail (White)
5	Heater, Mullion
6	Breaker, Trim Clip
7	Center, Rail Shim (2)
8	Bracket, Center Rail (2)
10	WP488729 Whirlpool Refrigerator Door Screw
11	Seal, Strip
12	Shim, Hinge Top
13	Shim, Hinge
13	Shim, Hinge
15	Screw
16	Hinge, Center
17	Shim, Hinge Center
18	WP488296 Whirlpool Washer Refrigerator
19	Spacer (3)
20	Hinge, Bottom R.H.
23	Shim, Bottom Hinge
24	WP487576 Whirlpool Washer
25	Tap Plate, Bottom
26	Hole Plug (White)
26	Hole Plug (Almond)
27	Hole Plug (2) (Almond)
27	Hole Plug (2) (White)
28	WPL 941416
28	Hole, Plug (2) (Almond)
29	Cabinet, Wiring Assembly
30	Grommet, Wiring
31	Clamp
33	Screw, 8-32 x 3/8
34	Cord, Service
35	Tube, Rail Cover (Almond)
35	Tube, Rail Cover (White)
36	Screw
37	Bushing, Strain Relief
