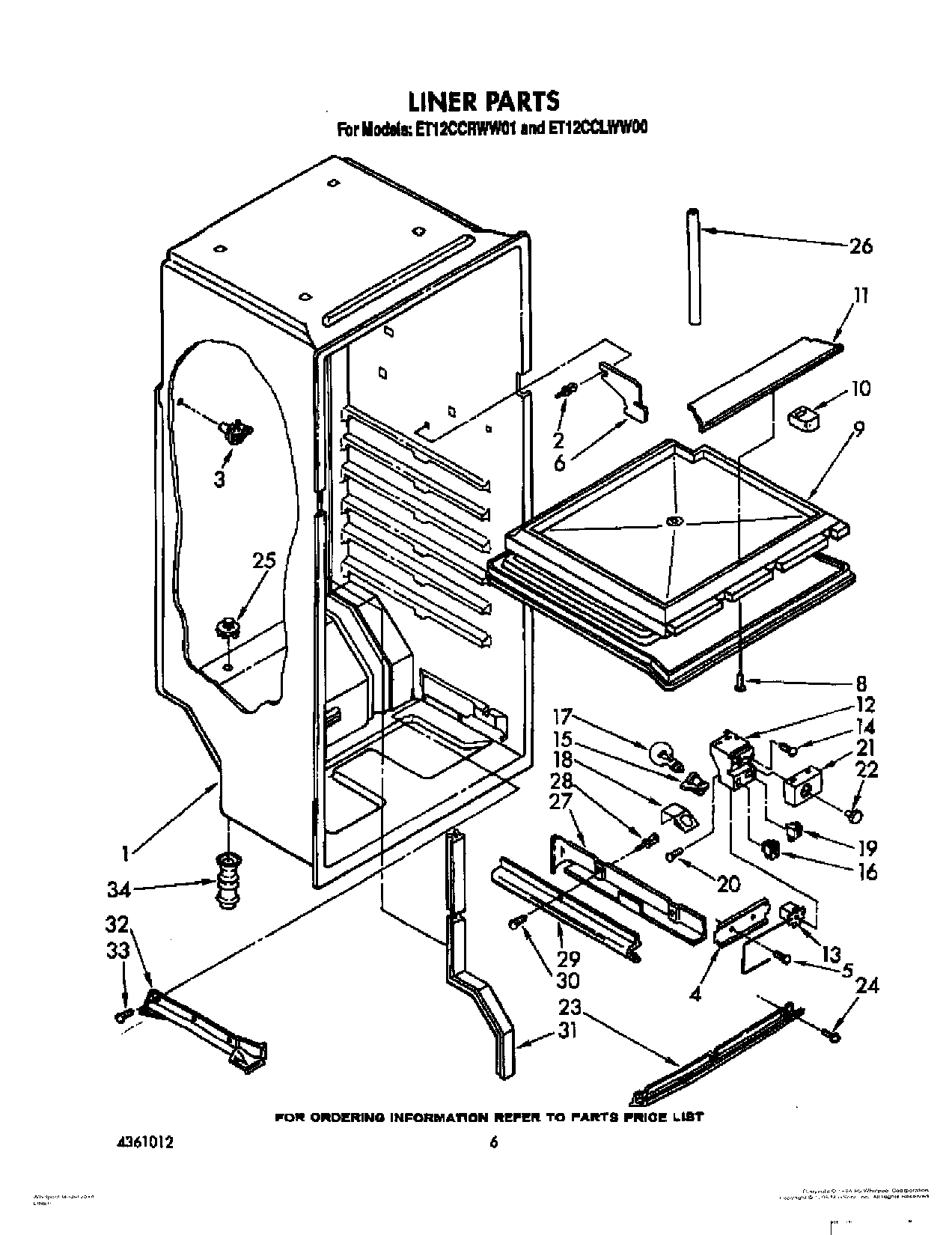

ET12CCLWW01 04 – LINER, LIT/OPTIONAL

ET12CCLWW01 04 – LINER, LIT/OPTIONAL

Written by

in

ET12CCLWW01 04 – LINER, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Torx Key
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	WPL LIT1124598
	Leveler (Thinner)
	WPL LIT1128232
	350956 Whirlpool Spray Assembly
	WPL LIT4361012
	WPL LIT2148855
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Screw Anchor (4)
4	Clip, Thermostat
5	W11693756 Whirlpool Screw Assembly
6	Electric Shield
8	WP488163 Whirlpool Refrigerator Screw
9	Insulation, Compartment Separator Assembly
10	Insulation, Crossover Tube
11	Breaker Trim, Mullion
12	Control Box
13	Thermostat
14	WP489128 Whirlpool Refrigerator Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	WP938213 Whirlpool Refrigerator Power Switch
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	Light Shield
19	W11384469 Whirlpool Door Switch
20	WP489069 Whirlpool Compactor Screw
21	Cover, Control Box
22	Knob, Control
23	Drain Trough
24	WP488729 Whirlpool Refrigerator Door Screw
25	Drain, Ferrule Cap
26	Cover, Connecting Lines
27	Wire Cover (Rear)
28	Rivet, Plastic (2)
29	Wire Cover (Front)
30	Screw, 8-15 x 1/2 (4)
31	Cover, Tube (Rear)
32	Cover Tube, Bottom
34	606755 Whirlpool Refrigerator Bag
34	511873 Whirlpool Refrigerator Paint
34	212643 Whirlpool Refrigerator Permagum Sealer
34	WPL 799832
34	Almond (Uncut)
34	72017 Whirlpool Appliance Touch-Up Paint White
34	799344 Whirlpool Refrigerator Paint
34	WP72107 Whirlpool Touchup
34	TAPE, VINYL (3/4 X 108“)
34	833938 Whirlpool Refrigerator Terminal
34	WP542638 Whirlpool Refrigerator Grease
34	CEMENT, ALUMILASTIC (1 1/4 OZ.)
34	72032 Whirlpool Touch Up Paint Black
34	Kit, Evaporator Repair (Aluminum Epoxy)
34	WP505587 Whirlpool Refrigerator Sealer
34	Enamel, Black (1 Qt. Uncut)
34	WP503695 Whirlpool Refrigerator Sealer
34	876370 Whirlpool Refrigerator Insulation
34	Fitting, Drain
34	WPL 876029
