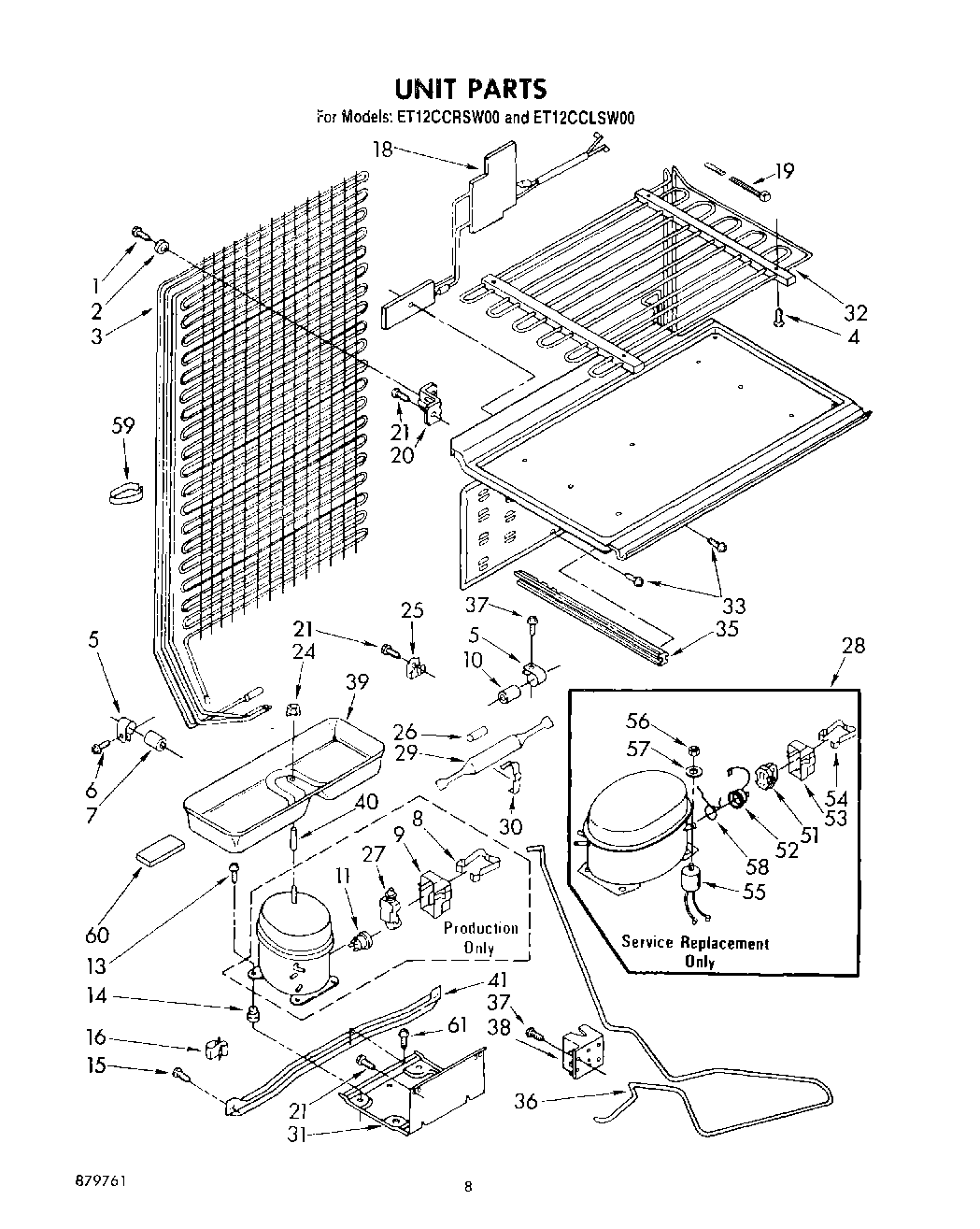

ET12CCRSN00 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly (Formed)
4	Screw, 8 x 1-1/4 (3)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	Dampener
9	Terminal Cover
10	Dampener
11	Overload
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	Defrost Heater
19	Strap
20	Condenser Bracket (Top)
21	WP489069 Whirlpool Compactor Screw
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Restrictor Sleeve
27	Relay
28	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit Mounting Plate
32	Evaporator Assembly
33	Screw, 8-15 x 1/2 (4)
35	Gasket, Evaporator
36	Heat Exchanger
37	W11624204 Whirlpool Screw
38	Box, Junction
39	Tray, Evaporator
40	Spacer
41	Unit Mounting Rail
51	WP2262181 Whirlpool Refrigerator Start Relay
52	Overload
53	Cover, Terminal
54	Strap
55	Capacitor
56	Nut
57	Washer
58	Overload Spring
59	Clip, Tube
60	Pad, Sound
61	WP965173 Whirlpool Dishwasher Screw
61	978027 Whirlpool Refrigerator Primary Valve
61	978026 Whirlpool Refrigerator Primary Valve
61	VALVE, ACCESS (5/8“)
61	WP978025 Whirlpool Refrigerator Valve
61	876764 Whirlpool Refrigerator Primary Valve
61	VALVE, ACCESS (1/2“)
61	978030 Whirlpool Refrigerator Valve
