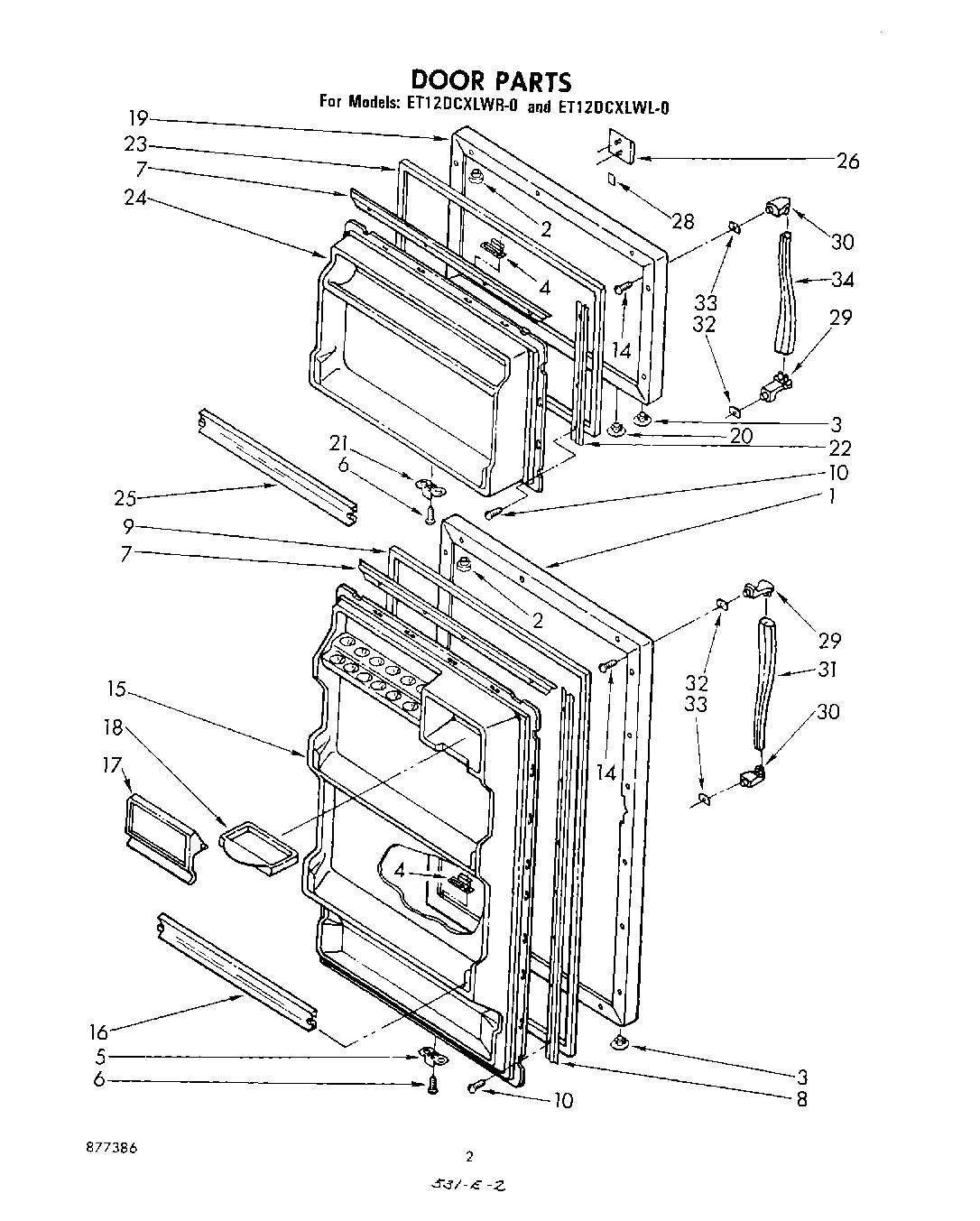

ET12DCXLWR0 02 – DOOR , LIT/OPTIONAL

ET12DCXLWR0 02 – DOOR , LIT/OPTIONAL

Written by

in

ET12DCXLWR0 02 – DOOR , LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
Golden Harvest
Paint, Spray 13 Oz. (Avocado)
paint, spray 13 oz. (coffee)
Leveler (Thinner)
285006 Whirlpool Spray
350956 Whirlpool Spray Assembly
1Refrigerator Door Panel (R.H. Swing) (New Avocado)
1Refrigerator Door Panel (R.H. Swing) (Almond (L.H. Swing))
1Refrigerator Door Panel (R.H. Swing) (New Avocado)
1Refrigerator Door Panel (R.H. Swing) (Harvest Gold)
1Refrigerator Door Panel (R.H. Swing) (Coffee)
1Refrigerator Door Panel (R.H. Swing) (White)
1Refrigerator Door Panel (R.H. Swing) (White)
1Refrigerator Door Panel (R.H. Swing) (Coffee)
1Refrigerator Door Panel (R.H. Swing) (Harvest Gold)
1Refrigerator Door Panel (R.H. Swing) (Almond)
2Cap, Hinge Sleeve (2)
3Hole Plug (2) (Almond)
3Hole Plug (2)
3Hole Plug (2) (New Avocado)
3Hole Plug (2) (Golden Harvest)
3Hole Plug (2) (Coffee)
4W10833053 Whirlpool Refrigerator Plate
5Bracket, Door Stop
6WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
7Gasket Retainer, Top & Bottom (2)
8Retainer, Gasket Side (2)
9Door Gasket, Magnetic
10SCREW
10WP489069 Whirlpool Compactor Screw
14Screw (2)
15Interior Door Panel (Refrigerator)
16Trim, Door Shelf (2)
17Butter Door
19Freezer
19Freezer Door Panel (R.H. Swing) (White)
19WPL 944067
19WPL 944065
19WPL 944064
19WPL 944066
19Freezer Door Panel (R.H. Swing) (Coffee)
19Freezer Door Panel (R.H. Swing) (New Avocado)
19WPL 944062
19WPL 939927
20WPL 941750
21Bracket, Door Stop
22Retainer, Gaske
23WPL 1100009
24WPL 943095
25Trim, Door Shelf
26Nameplate
28Tape Strip
29WPL 982947
30WPL 982948
32WPL 941917
33WPL 941918
34876370 Whirlpool Refrigerator Insulation
34WP503695 Whirlpool Refrigerator Sealer
34Golden Harvest (Uncut)
34WP505587 Whirlpool Refrigerator Sealer
34WP542638 Whirlpool Refrigerator Grease
34WPL 799351
34TAPE, VINYL (3/4 X 108“)
34833938 Whirlpool Refrigerator Terminal
34606755 Whirlpool Refrigerator Bag
34511873 Whirlpool Refrigerator Paint
34212643 Whirlpool Refrigerator Permagum Sealer
3472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
34Almond (Uncut)
34WP72107 Whirlpool Touchup
34799344 Whirlpool Refrigerator Paint
34CEMENT, ALUMILASTIC (1 1/4 OZ.)
34Enamel, Black (1 Qt. Uncut)
34WPL 942261
34WPL 946677
34Enamel, New Avocado (1 Qt. Uncut)
34Enamel, Coffee (1 Qt. Uncut)
34Paint, Touch-Up 1/2 Oz. (Coffee)
34WPL 942255
3472109 Whirlpool Dacor Avocado Touch-Up Paint
34WPL 877386
3472032 Whirlpool Touch Up Paint Black
34WPL 942262
34WPL 876029
34WPL 946857
34WPL 799833
34WPL 799832
3472017 Whirlpool Appliance Touch-Up Paint White
