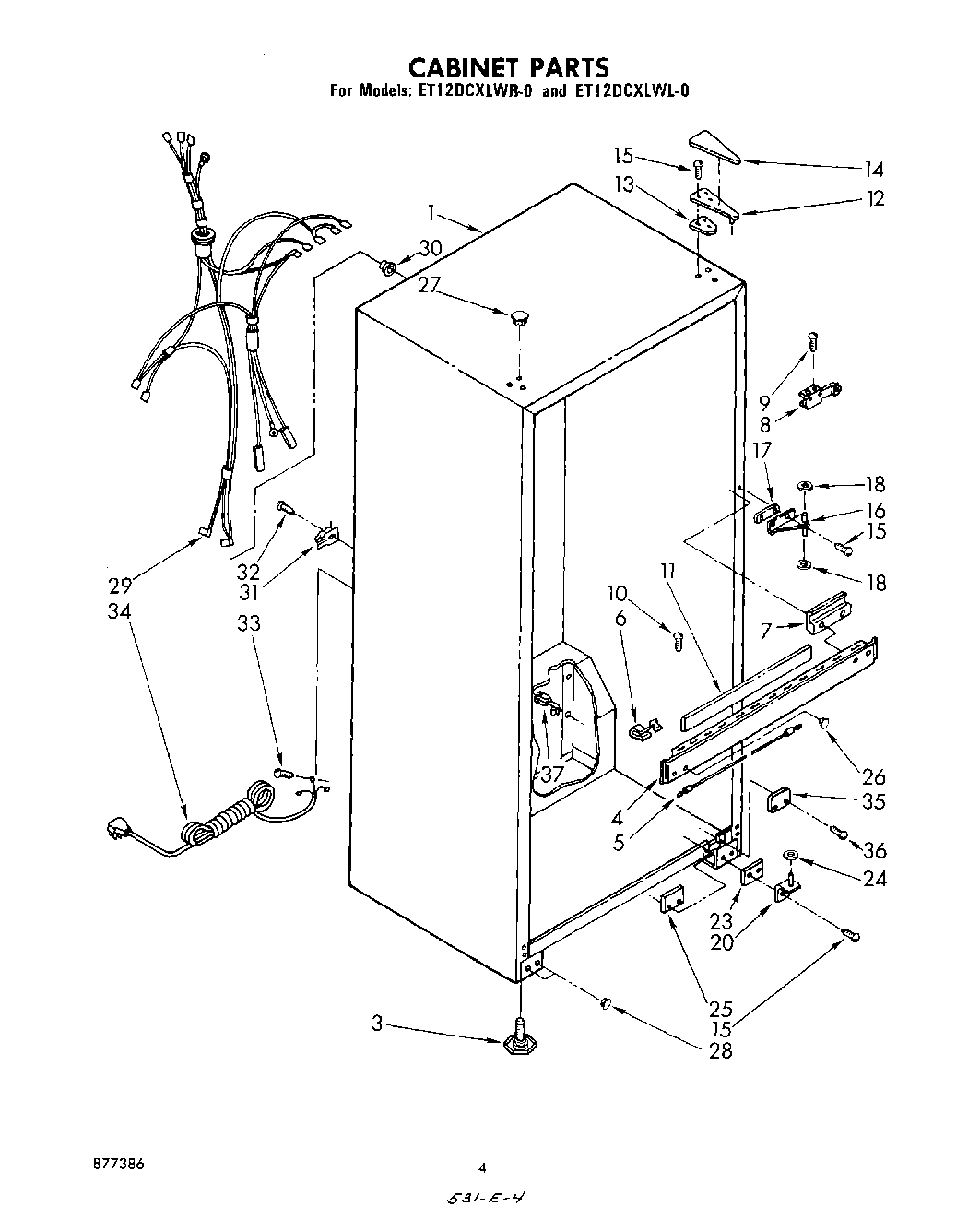

ET12DCXLWR0 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	W11117769 Whirlpool Refrigerator Leveler
4	Center Rail (New Avocado)
4	Center Rail (Almond)
4	Center Rail (Coffee)
4	Center Rail (White)
4	Center Rail (Golden Harvest)
5	Heater, Mullion
6	Breaker, Trim Clip
7	Center, Rail Shim (2)
8	Bracket, Center Rail (2)
10	WP488729 Whirlpool Refrigerator Door Screw
11	Seal Strip, Center Rail
12	Hinge, Top
13	Shim, Hinge
14	Hinge Cover (New Avocado)
14	Hinge, Cover (Coffee)
14	Hinge Cover (Golden Harvest)
14	1119787 Whirlpool Refrigerator Hinge Cover
15	WP999367 Whirlpool Refrigerator Screw
15	Screw (Repair)
16	Hinge, Center
17	Shim, Hinge Center
18	WP487802 Whirlpool Refrigerator Washer
20	Hinge, Bottom L.H.
20	Hinge, Bottom R.H.
23	Shim, Bottom Hinge
24	WP487576 Whirlpool Washer
25	Tap Plate, Bottom
26	Hole Plug (2) (Coffee)
26	WPL 940090
26	Hole Plug (2)
26	Hole Plug (2) (Golden Harvest)
26	Hole Plug (2) (Almond)
27	Hole Plug (2) (Golden Harvest)
27	Hole Plug (2) (White)
27	Hole Plug (2) (Almond)
27	Hole Plug (New Avocado)
27	Hole Plug (Coffee)
28	Plug Button (2) (Coffee)
28	Hole, Plug (2) (Almond)
28	Hole Plug (2) (Golden Harvest)
28	Plug Button (2) (New Avocado)
28	WPL 941416
29	WPL 939913
30	Grommet, Wiring
31	Clamp
32	W11624204 Whirlpool Screw
33	Screw, 8-32 x 3/8
34	Cord, Service
35	Tube, Rail Cover (White)
35	Tube, Rail Cover (Golden Harvest)
35	Tube, Rail Cover (Almond)
35	Tube, Rail Cover (Coffee)
35	WPL 935710
36	Screw
37	Bushing, Strain Relief
