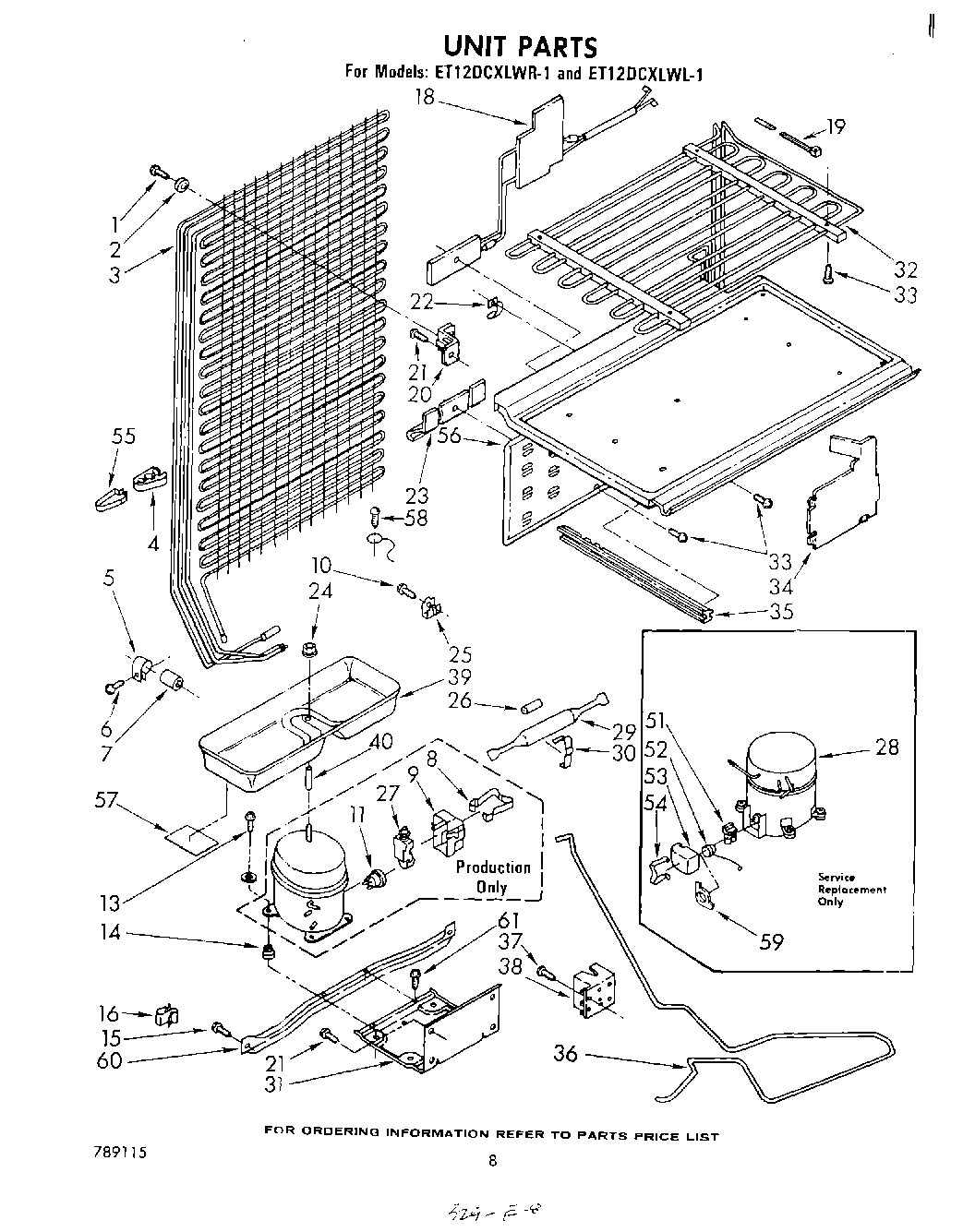

ET12DCXLWR1 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Tube Clip (2)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	dampener
8	Strap
9	Cover, Terminal
11	Overload
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	Defrost Heater
19	Strap
20	Bracket, Condenser (2)
21	WP489069 Whirlpool Compactor Screw
22	Clip, Capillary Tube
23	Clamp, Capillary Tube
24	WP487939 Whirlpool Refrigerator Nut
25	Clip, Condenser Mounting (2)
26	Restrictor Sleeve
27	Relay
28	Compressor (Includes Items 32, 33, 34, 35 & 36) (Also Order 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit Mounting Plate
32	Evaporator Assembly
33	Screw, 8-15 x 1/2 (4)
34	Tube Cover
35	Gasket, Evaporator Lower R.S.
35	Gasket, Evaporator Lower L.S.
36	Heat Exchanger
37	W11624204 Whirlpool Screw
38	Box, Junction
39	Tray, Evaporator
40	Spacer
51	Relay
52	overload
53	Cover, Terminal
54	Cover, Spring
55	Tube Grommet (2)
56	Evaporator Plate
57	Pad, Sound
58	303776 Whirlpool Dishwasher Screw
59	Spring, Overload
60	Unit Mounting Rail
61	VALVE, ACCESS (1/2“)
61	WP978025 Whirlpool Refrigerator Valve
61	876764 Whirlpool Refrigerator Primary Valve
61	978030 Whirlpool Refrigerator Valve
61	978027 Whirlpool Refrigerator Primary Valve
61	978026 Whirlpool Refrigerator Primary Valve
61	WP965173 Whirlpool Dishwasher Screw
61	VALVE, ACCESS (5/8“)
