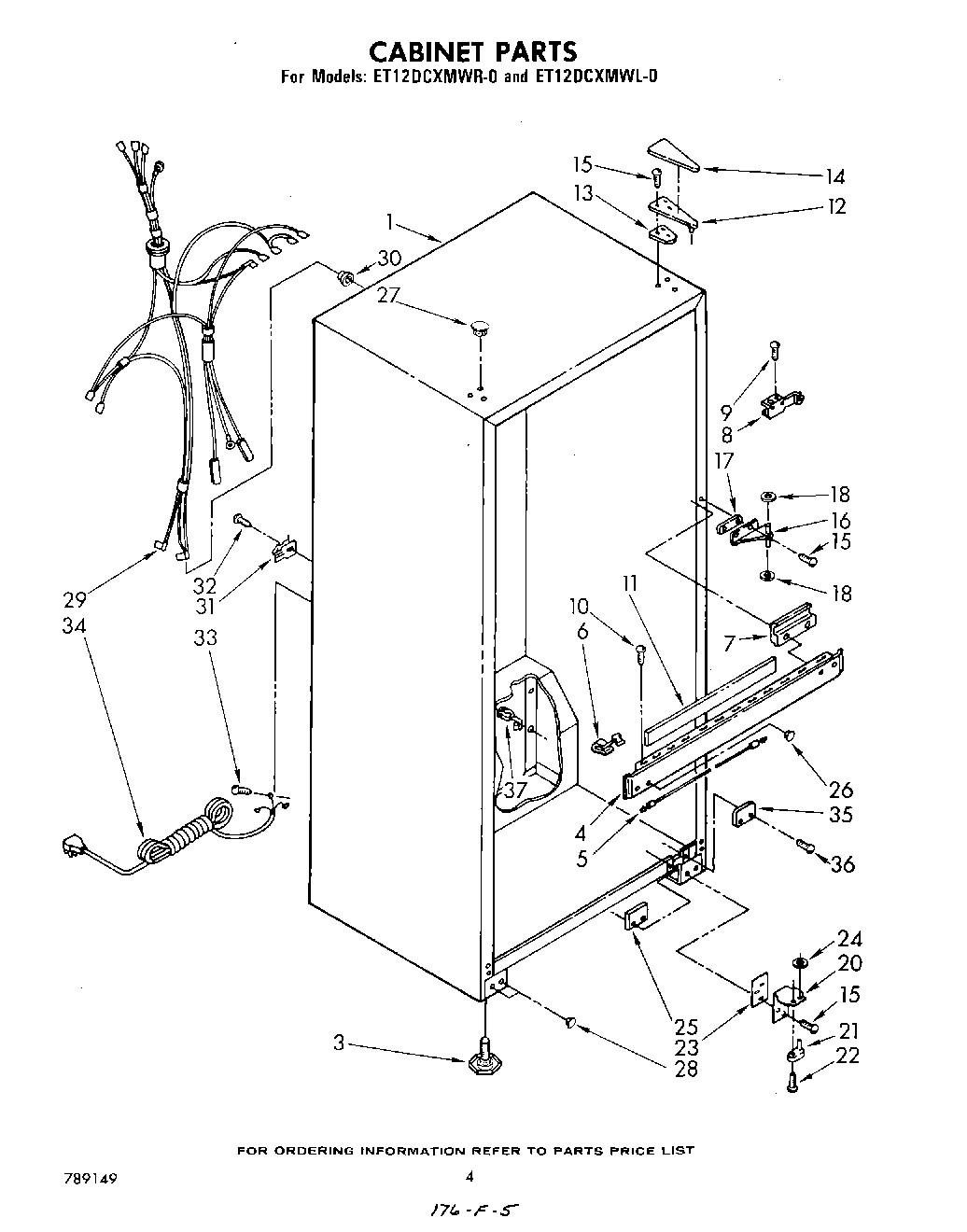

ET12DCXMWR0 03 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
3W11117769 Whirlpool Refrigerator Leveler
4Center Rail (Coffee)
4Center Rail (Golden Harvest)
4Center Rail (New Avocado)
4Center Rail (Toast)
4Center Rail (Platinum)
4Center Rail (Almond)
4Center Rail (White)
5Heater, Mullion
6Breaker, Trim Clip
7Center, Rail Shim (2)
8Bracket, Center Rail (2)
10WP488729 Whirlpool Refrigerator Door Screw
11Seal Strip, Center Rail
12Hinge, Top
13Shim, Hinge
141119787 Whirlpool Refrigerator Hinge Cover
14Hinge Cover (Golden Harvest)
14Hinge, Cover (Coffee)
14Hinge Cover (New Avocado)
14Hinge Cover (Toast)
15WP999367 Whirlpool Refrigerator Screw
15Screw (Repair)
16Hinge, Center
17Shim, Hinge Center
18WP487802 Whirlpool Refrigerator Washer
20Butt Hinge (Bottom)
21Hinge Pin, Bottom
22Screw 10-32 x 5/16
23Shim, Bottom Hinge
24WP487576 Whirlpool Washer
25Tap Plate, Bottom
26Hole Plug (2) (Platinum)
26Hole Plug (2) (Golden Harvest)
26Hole Plug (2) (Coffee)
26Hole Plug (2) (Almond)
26Hole Plug (2) (Toast)
26WPL 940090
26Hole Plug (2)
27Hole Plug (2) (Golden Harvest)
27Hole Plug (2) (Almond)
27Hole Plug (New Avocado)
27Hole Plug (2) (White)
27Hole Plug (3) (Platinum)
27Hole Plug (3) (Toast)
27Hole Plug (Coffee)
28Hole Plug (2) (Toast)
28WPL 941416
28Hole, Plug (2) (Almond)
28Hole Plug (2) (Platinum)
28Plug Button (2) (New Avocado)
28Plug Button (2) (Coffee)
28Hole Plug (2) (Golden Harvest)
29WPL 939913
30Grommet, Wiring
31Clamp
32W11624204 Whirlpool Screw
33Screw, 8-32 x 3/8
34Cord, Service
35Tube, Rail Cover (White)
35Tube, Rail Cover (Golden Harvest)
35Tube, Rail Cover (Platinum)
35Tube, Rail Cover (Almond)
35Tube, Rail Cover (Coffee)
35Tube, Rail Cover (Toast)
35WPL 935710
36Screw
37Bushing, Strain Relief
