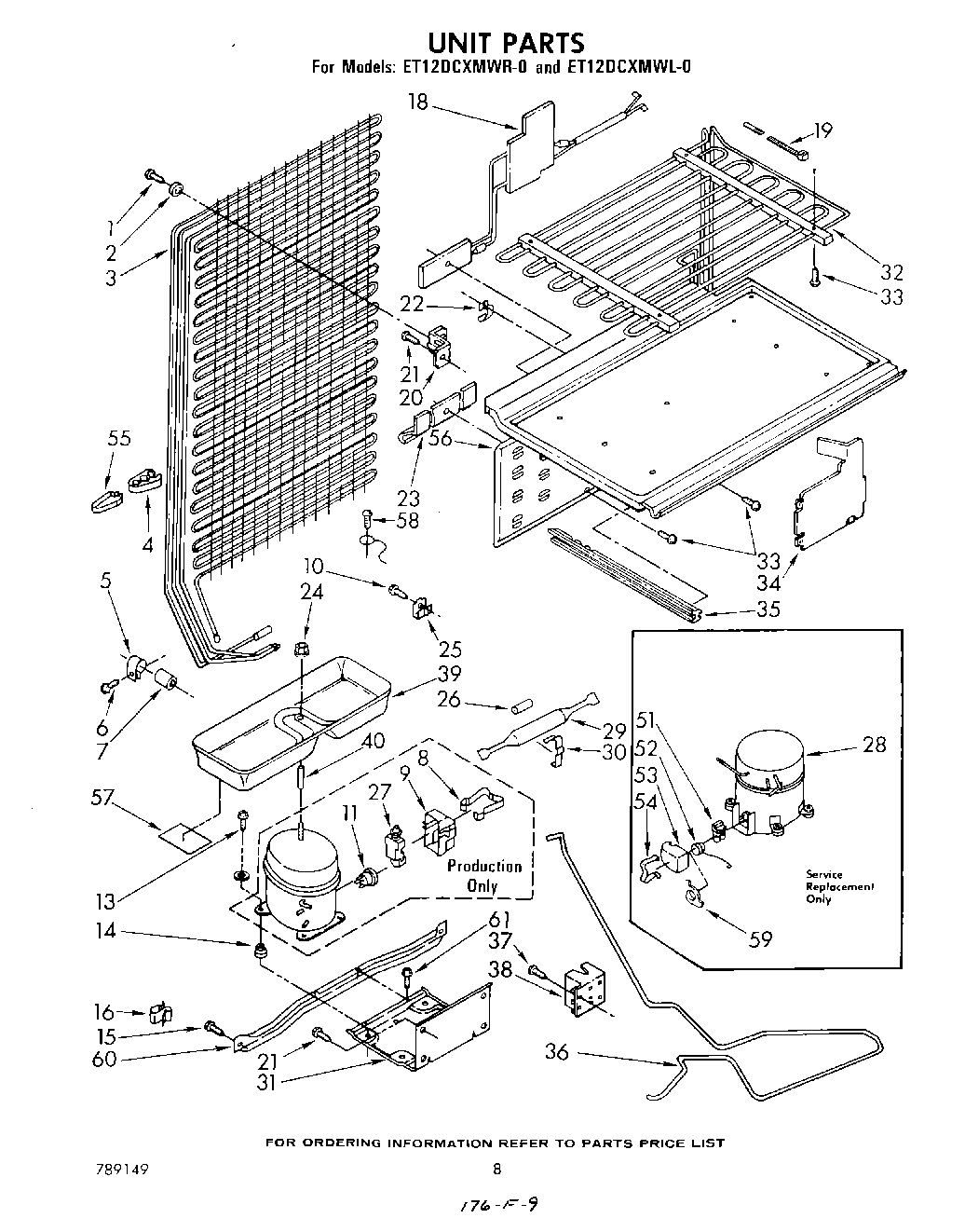

| 1 | Screw, 8 x 7/8 |
| 2 | Bumper, Rubber |
| 3 | Condenser & Precooler Assembly |
| 4 | Tube Clip (2) |
| 5 | Clamp Tube |
| 6 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 7 | dampener |
| 8 | Strap |
| 9 | Terminal Cover |
| 11 | Overload |
| 14 | 876811 Whirlpool Grommet |
| 15 | 489340 Whirlpool Refrigerator Screw |
| 16 | W10812038 Whirlpool Refrigerator Clip |
| 18 | Defrost Heater |
| 19 | Strap |
| 20 | Bracket, Condenser (2) |
| 21 | WP489069 Whirlpool Compactor Screw |
| 22 | Clip, Capillary Tube |
| 23 | Clamp, Capillary Tube |
| 24 | WP487939 Whirlpool Refrigerator Nut |
| 25 | Clip, Condenser Mounting (2) |
| 26 | Restrictor Sleeve |
| 27 | Relay |
| 28 | Compressor (Includes Items 32, 33, 34, 35 & 36) (Also Order 876765 Tube Kit) |
| 29 | W10843121 Whirlpool Refrigerator Tube |
| 30 | Drier Clamp |
| 31 | Unit Mounting Plate |
| 32 | Evaporator Assembly |
| 33 | Screw, 8-15 x 1/2 (4) |
| 34 | Tube Cover |
| 35 | Gasket, Evaporator Lower L.S. |
| 35 | Gasket, Evaporator Lower R.S. |
| 36 | Heat Exchanger |
| 37 | W11624204 Whirlpool Screw |
| 38 | Box, Junction |
| 39 | Tray, Evaporator |
| 40 | Spacer |
| 51 | Relay |
| 52 | overload |
| 53 | Cover, Terminal |
| 54 | Cover, Spring |
| 55 | Tube Grommet (2) |
| 56 | Evaporator Plate |
| 57 | Pad, Sound |
| 58 | 303776 Whirlpool Dishwasher Screw |
| 59 | Spring, Overload |
| 60 | Unit Mounting Rail |
| 61 | VALVE, ACCESS (1/2``) |
| 61 | WP978025 Whirlpool Refrigerator Valve |
| 61 | 876764 Whirlpool Refrigerator Primary Valve |
| 61 | 978030 Whirlpool Refrigerator Valve |
| 61 | 978027 Whirlpool Refrigerator Primary Valve |
| 61 | 978026 Whirlpool Refrigerator Primary Valve |
| 61 | WP965173 Whirlpool Dishwasher Screw |
| 61 | VALVE, ACCESS (5/8``) |
