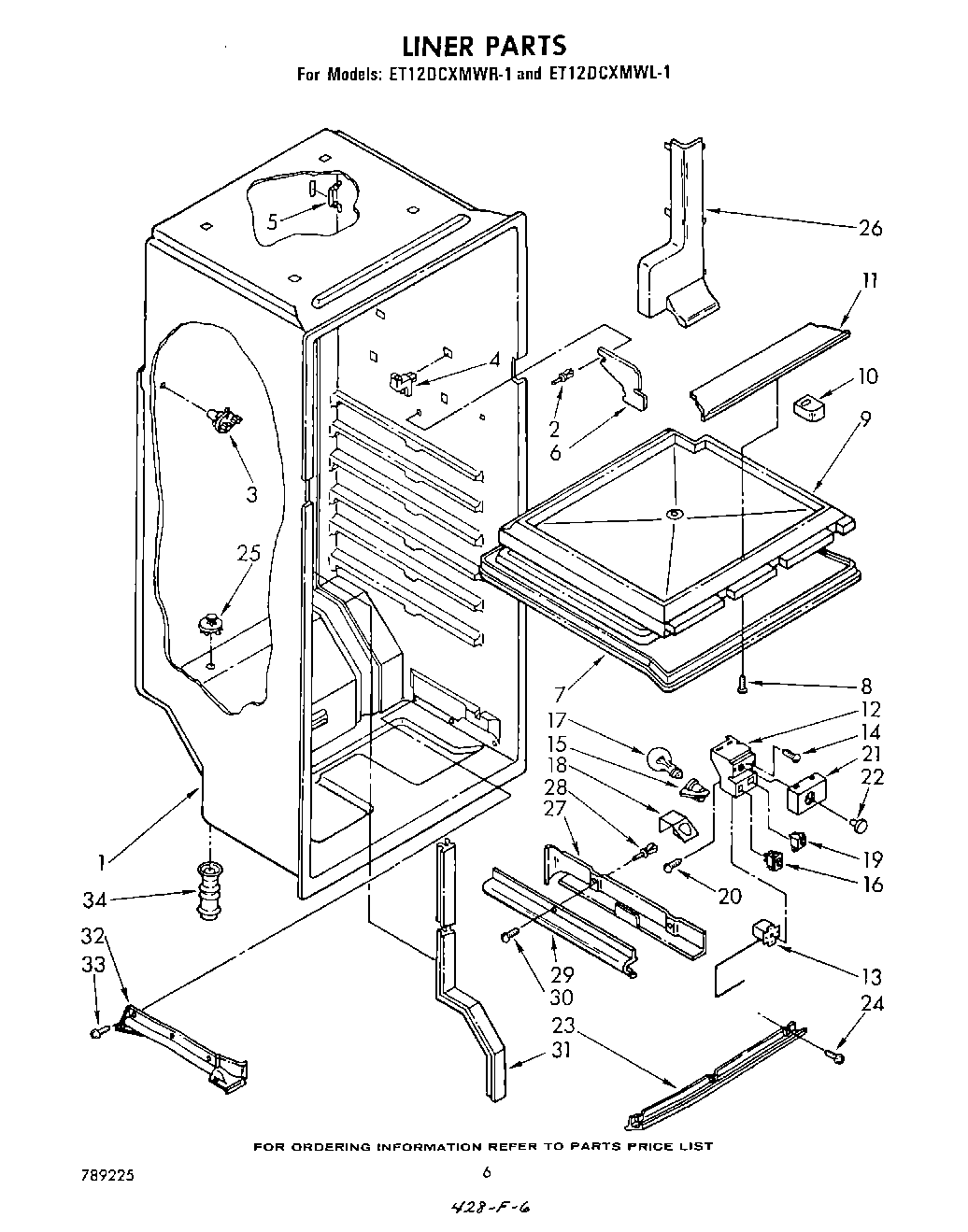

ET12DCXMWR1 04 – LINER , LIT/OPTIONAL

ET12DCXMWR1 04 – LINER , LIT/OPTIONAL

Written by

in

ET12DCXMWR1 04 – LINER , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	paint, spray 13 oz. (coffee)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Leveler (Thinner)
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	350956 Whirlpool Spray Assembly
	Golden Harvest
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Screw Anchor (4)
4	4388405 Whirlpool Refrigerator Shelf Stud
5	Speed Clip, Light Lens (3)
6	Electric Shield
7	Bottom, Compartment Separator
8	WP488163 Whirlpool Refrigerator Screw
9	Insulation, Compartment Separator
10	Insulation, Crossover Tube
11	Breaker, Mullion (Top)
12	Control Box
13	Thermostat
14	WP489128 Whirlpool Refrigerator Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	WP938213 Whirlpool Refrigerator Power Switch
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	Light Shield
19	W11384469 Whirlpool Door Switch
20	WP489069 Whirlpool Compactor Screw
21	Cover, Control Box
22	Knob, Control
23	Drain Trough
24	WP488729 Whirlpool Refrigerator Door Screw
25	Drain, Ferrule Cap
26	Tube Cover
27	Wire Cover (Rear)
28	Rivet, Plastic (2)
29	Wire Cover (Front)
30	Screw, 8-15 x 1/2 (4)
31	Tube Entry Cover (Rear)
32	Cover Tube, Bottom
33	W11693756 Whirlpool Screw Assembly
34	Energy Guide
34	Fitting, Drain
34	Service & Wiring Shet
34	WPL 789225
34	WPL 942261
34	Silicone (Spray)
34	606755 Whirlpool Refrigerator Bag
34	511873 Whirlpool Refrigerator Paint
34	212643 Whirlpool Refrigerator Permagum Sealer
34	WPL 72112
34	Platinum (Uncut)
34	Enamal, Toast (1 Qt. Uncut)
34	Golden Harvest (Uncut)
34	72113 Whirlpool Touch-Up Paint
34	Almond (Uncut)
34	WP72107 Whirlpool Touchup
34	799344 Whirlpool Refrigerator Paint
34	833938 Whirlpool Refrigerator Terminal
34	876370 Whirlpool Refrigerator Insulation
34	WP503695 Whirlpool Refrigerator Sealer
34	Enamel, Coffee (1 Qt. Uncut)
34	Paint, Touch-Up 1/2 Oz. (Coffee)
34	72032 Whirlpool Touch Up Paint Black
34	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
34	WPL 876029
34	WPL 799833
34	WPL 799832
34	CEMENT, ALUMILASTIC (1 1/4 OZ.)
34	TAPE, VINYL (3/4 X 108“)
34	WP542638 Whirlpool Refrigerator Grease
34	WP505587 Whirlpool Refrigerator Sealer
34	72017 Whirlpool Appliance Touch-Up Paint White
