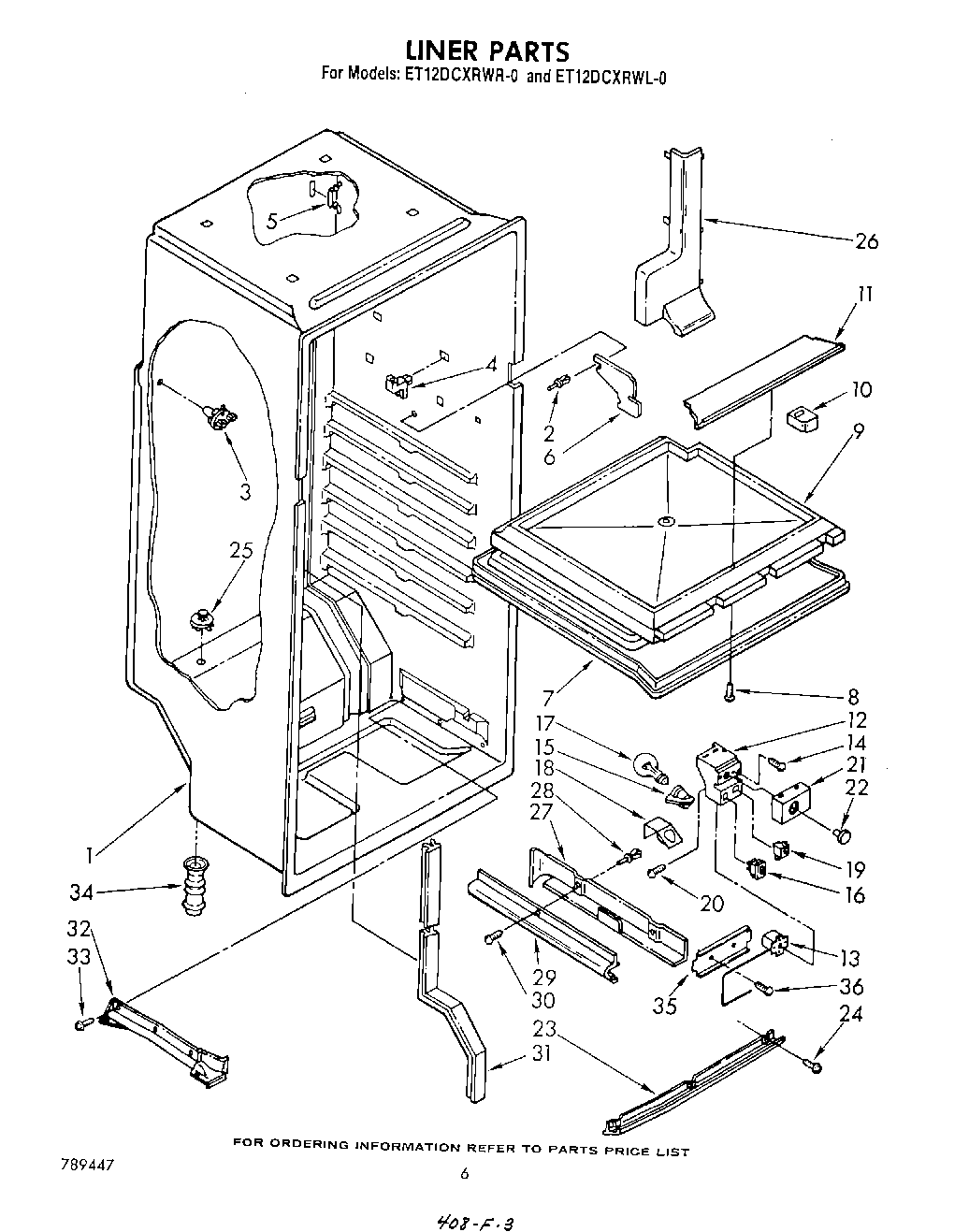

ET12DCXRWR0 04 – LINER , LIT/OPTIONAL

ET12DCXRWR0 04 – LINER , LIT/OPTIONAL

Written by

in

ET12DCXRWR0 04 – LINER , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Toast
	285006 Whirlpool Spray
	Paint, Spray (13 Oz.) (Platinum)
	WPL LIT789447
	WPL LIT1101142
	Leveler (Thinner)
	WPL LIT1109128
	WPL LIT1110053
	350942 Whirlpool Spray Paint
	350956 Whirlpool Spray Assembly
	Golden Harvest
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Screw Anchor (4)
4	4388405 Whirlpool Refrigerator Shelf Stud
5	Speed Clip, Light Lens (3)
6	Electric Shield
7	Bottom, Compartment Separator
8	WP488163 Whirlpool Refrigerator Screw
9	Insulation, Compartment Separator
10	Insulation, Crossover Tube
11	Breaker, Mullion (Top)
12	Control Box
13	Thermostat
14	WP489128 Whirlpool Refrigerator Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	WP938213 Whirlpool Refrigerator Power Switch
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	Light Shield
19	W11384469 Whirlpool Door Switch
20	WP489069 Whirlpool Compactor Screw
21	Cover, Control Box
22	Knob, Control
23	Drain Trough
24	WP488729 Whirlpool Refrigerator Door Screw
25	Drain, Ferrule Cap
26	Tube Cover
27	Wire Cover (Rear)
28	Rivet, Plastic (2)
29	Wire Cover (Front)
30	Screw, 8-15 x 1/2 (4)
31	Tube Entry Cover (Rear)
32	Cover Tube, Bottom
33	W11693756 Whirlpool Screw Assembly
34	Fitting, Drain
35	Clip, Thermostat
36	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
36	876370 Whirlpool Refrigerator Insulation
36	511873 Whirlpool Refrigerator Paint
36	212643 Whirlpool Refrigerator Permagum Sealer
36	WPL 72112
36	Platinum (Uncut)
36	Enamal, Toast (1 Qt. Uncut)
36	Golden Harvest (Uncut)
36	72113 Whirlpool Touch-Up Paint
36	Almond (Uncut)
36	WP72107 Whirlpool Touchup
36	799344 Whirlpool Refrigerator Paint
36	606755 Whirlpool Refrigerator Bag
36	833938 Whirlpool Refrigerator Terminal
36	Silicone (Spray)
36	72032 Whirlpool Touch Up Paint Black
36	WPL 876029
36	WPL 799833
36	WPL 799832
36	CEMENT, ALUMILASTIC (1 1/4 OZ.)
36	TAPE, VINYL (3/4 X 108“)
36	WP542638 Whirlpool Refrigerator Grease
36	WP505587 Whirlpool Refrigerator Sealer
36	WP503695 Whirlpool Refrigerator Sealer
36	72017 Whirlpool Appliance Touch-Up Paint White
