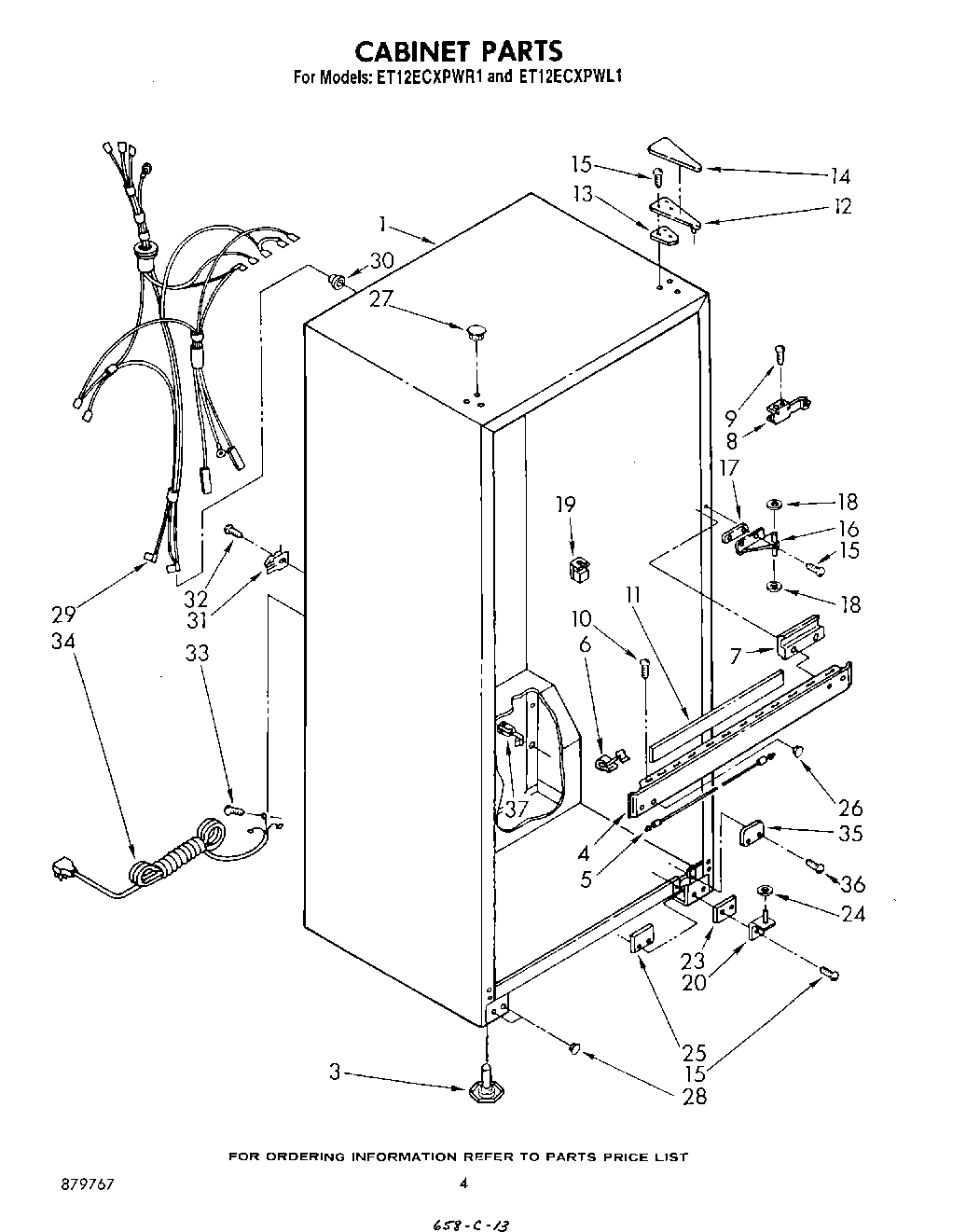

| 1 | Cabinet (Not A Serviceable Part) |
| 3 | W11117769 Whirlpool Refrigerator Leveler |
| 4 | Center Rail (Golden Harvest) |
| 4 | Center, Rail (White) |
| 4 | Center, Rail (Almond) |
| 5 | Heater, Mullion |
| 6 | Breaker, Trim Clip |
| 7 | Center, Rail Shim (2) |
| 8 | Bracket, Center Rail (2) |
| 10 | WP488729 Whirlpool Refrigerator Door Screw |
| 11 | Seal, Strip |
| 12 | Shim, Hinge Top |
| 13 | Shim, Hinge |
| 14 | Hinge Cover (Golden Harvest) |
| 14 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 15 | WP999367 Whirlpool Refrigerator Screw |
| 15 | Screw (Repair) |
| 16 | Hinge, Center |
| 17 | Shim, Hinge Center |
| 18 | WP488296 Whirlpool Washer Refrigerator |
| 19 | Spacer (2) |
| 20 | Hinge, Bottom R.H. |
| 20 | Hinge, Bottom L.H. |
| 23 | Shim, Bottom Hinge |
| 24 | WP487576 Whirlpool Washer |
| 25 | Tap Plate, Bottom |
| 26 | Hole Plug (2) (Golden Harvest) |
| 26 | Hole Plug (2) (Almond) |
| 26 | Hole Plug (2) |
| 27 | Hole Plug (2) (Almond) |
| 27 | Hole Plug (2) (White) |
| 27 | Hole Plug (2) (Golden Harvest) |
| 28 | Hole Plug (2) (Golden Harvest) |
| 28 | Hole, Plug (2) (Almond) |
| 28 | WPL 941416 |
| 29 | Cabinet, Wiring Assembly |
| 30 | Grommet, Wiring |
| 31 | Clamp |
| 32 | W11624204 Whirlpool Screw |
| 33 | Screw, 8-32 x 3/8 |
| 34 | Cord, Service |
| 35 | Tube, Rail Cover (Golden Harvest) |
| 35 | Tube, Rail Cover (Almond) |
| 35 | Tube, Rail Cover (White) |
| 36 | Screw |
| 37 | Bushing, Strain Relief |
