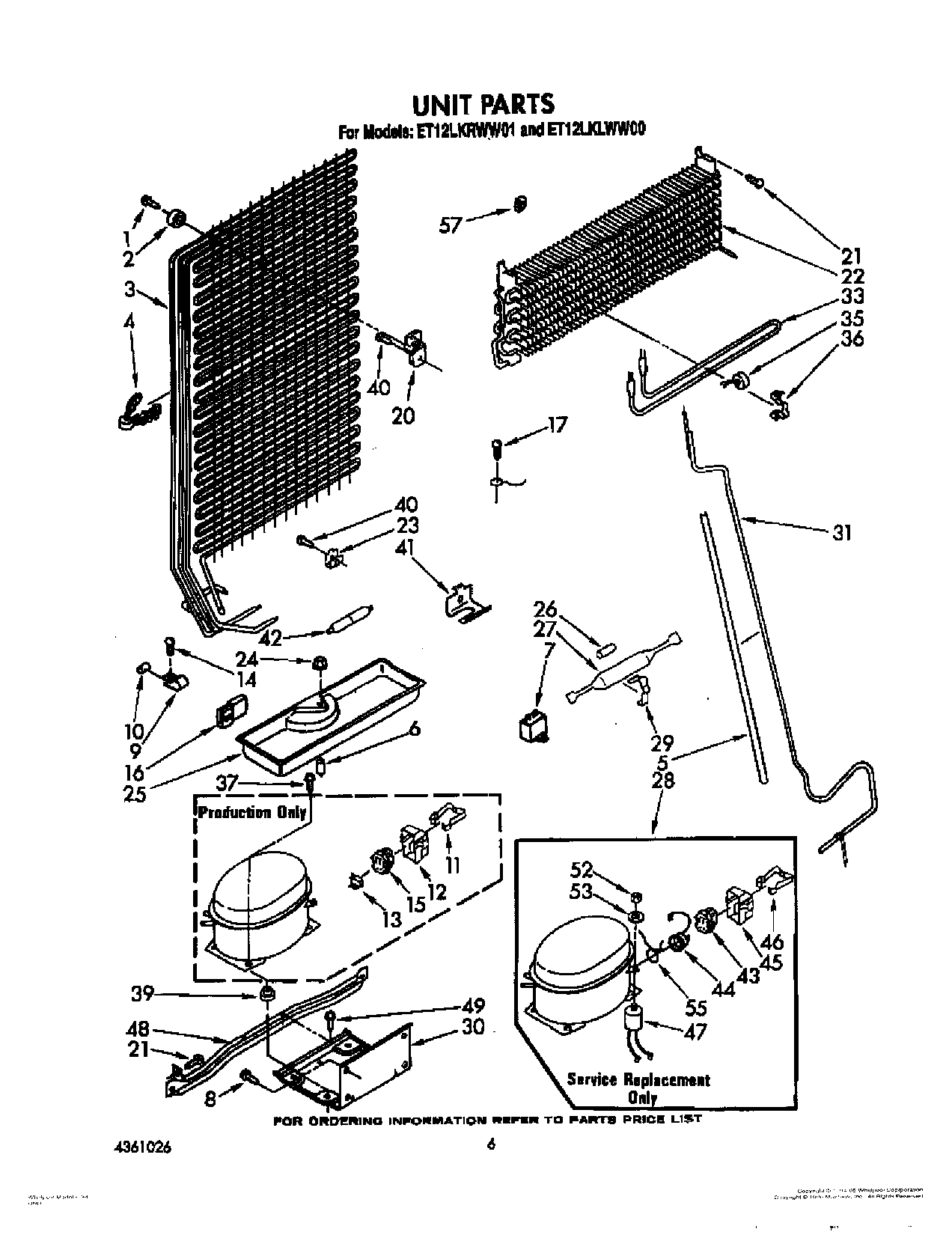

ET12LKLWN01 05 – UNIT

Products

PositionProduct
1Screw, 8 x 7/8
2Bumper, Rubber
3Condenser & Precooler Assembly
4Clip, Tube (2)
5WP2002171 Whirlpool Refrigerator Sleeve
6Spacer
7WPW10662129 Whirlpool Refrigerator Run Capacitor
8489340 Whirlpool Refrigerator Screw
9Clamp Tube
10Dampener
12Cover
13Overload
14WPW10141625 Whirlpool Refrigerator Screw Assembly
16WP717253 Whirlpool Dishwasher Connector
17303776 Whirlpool Dishwasher Screw
20Condenser Bracket (Top)
21WP489128 Whirlpool Refrigerator Screw
22Evaporator
23Clip, Condenser Mounting (2)
24285002 Whirlpool Nut
25Tray, Evaporator
26Restrictor Sleeve
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29Clamp, Dryer
30Unit Mounting Plate
31Exchanger, Heat
33Heater, Defrost
35Bi-Metal, Defrost
36Clamp
39876811 Whirlpool Grommet
40WP489478 Whirlpool Refrigerator Screw
41Bracket, Wire Receptacles
42Muffler
43WP2262181 Whirlpool Refrigerator Start Relay
44Overload
45Cover, Terminal
46Strap
47Capacitor
48Unit Mounting Rail
49WP965173 Whirlpool Dishwasher Screw
52Nut
53Washer
55Overload Spring
57VALVE, ACCESS (5/8“)
57VALVE, ACCESS (1/2“)
57Retainer, Evaporator
57978026 Whirlpool Refrigerator Primary Valve
57978027 Whirlpool Refrigerator Primary Valve
57876764 Whirlpool Refrigerator Primary Valve
57WP978025 Whirlpool Refrigerator Valve
57978030 Whirlpool Refrigerator Valve
